Overview

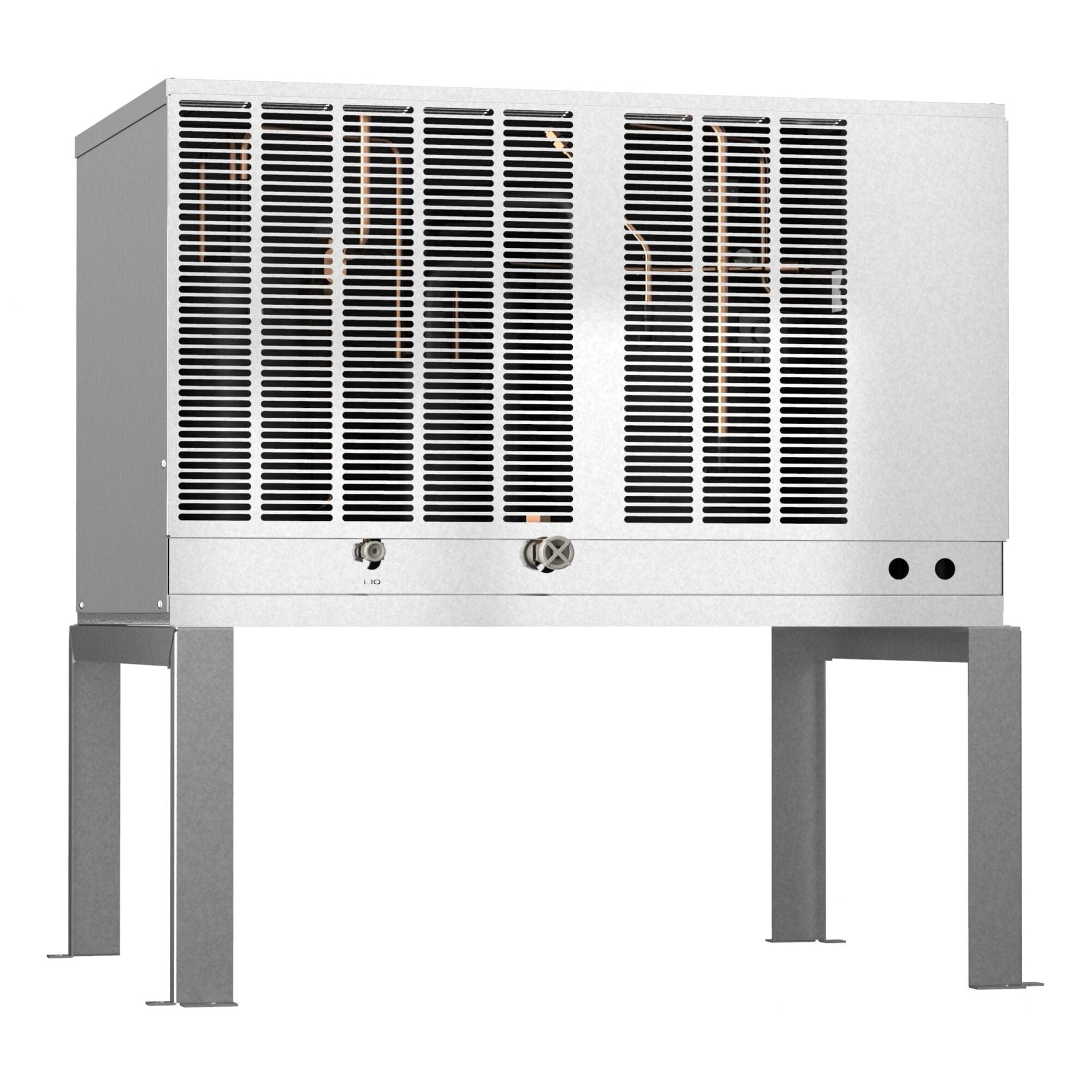

The Hoshizaki SRK-10J is a high-efficiency remote condenser engineered to pair with KMS-822MLJ and KMS-830MLJ Serenity Series ice makers. Designed for quiet operation and improved energy efficiency, this outdoor-rated unit helps reduce heat and noise in indoor environments while supporting consistent ice production. Ideal for commercial kitchens, hospitality, and healthcare facilities, the SRK-10J ensures reliable performance and long-term durability.
Key Features
- Compatible with KMS-822MLJ and KMS-830MLJ ice makers
- Remote air-cooled design minimizes indoor heat and noise
- Weather-resistant cabinet for outdoor installation
- Quiet operation with improved energy efficiency
- Supports installations up to 55 ft. from ice maker
- Uses environmentally friendly R-404A refrigerant
- ENERGY STAR® qualified
Construction & Durability
-
Cabinet Material: Stainless steel weather-resistant housing
-
Dimensions: 35.75" W x 23.5" D x 37" H (including legs)
-
Shipping Weight: 230 lbs.
-
Design Pressure: HI-467 PSI / LO-230 PSI
-
Refrigerant Charge: 15 lb. 14 oz. of R-404A
Mobility & Installation
-
Electrical Requirements: 208–230V/60Hz/1Ph
-
Voltage Range: 187–253V
-
Ambient Temp Range: –4°F to 122°F
-
Line Set Compatibility: HS-0250 (25'), HS-0251 (35'), HS-0252 (55') – brazing required
-
Max Line Set Length: 55 ft. (longer installations require factory consultation)
-
Vertical Distance Limits: Up to 33 ft. above or 10 ft. below ice maker
-
Clearance Requirements: 24" front and rear for airflow and service access
-
Installation Notes: Must be hard-wired; power cord not included
Certifications & Warranty
-
Certifications: UL Listed, ENERGY STAR® Partner, Made in Georgia, USA
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on air-cooled condenser coil
- 5 Years Parts on SRK compressor
-
Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Line Sets (Brazed):
- HS-0250 (25 ft.)
- HS-0251 (35 ft.)
- HS-0252 (55 ft.)
-
Tubing Kits: Refer to specifications table for correct kit based on ice maker model
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and ice-making solutions. The SRK-10J remote condenser exemplifies Hoshizaki’s commitment to innovation, energy efficiency, and durability. With a robust warranty, ENERGY STAR® certification, and quiet operation, Hoshizaki products deliver performance that goes Beyond Strong.
Documentation
Spec Sheet
Parts Manual
Product Brochure
