Overview

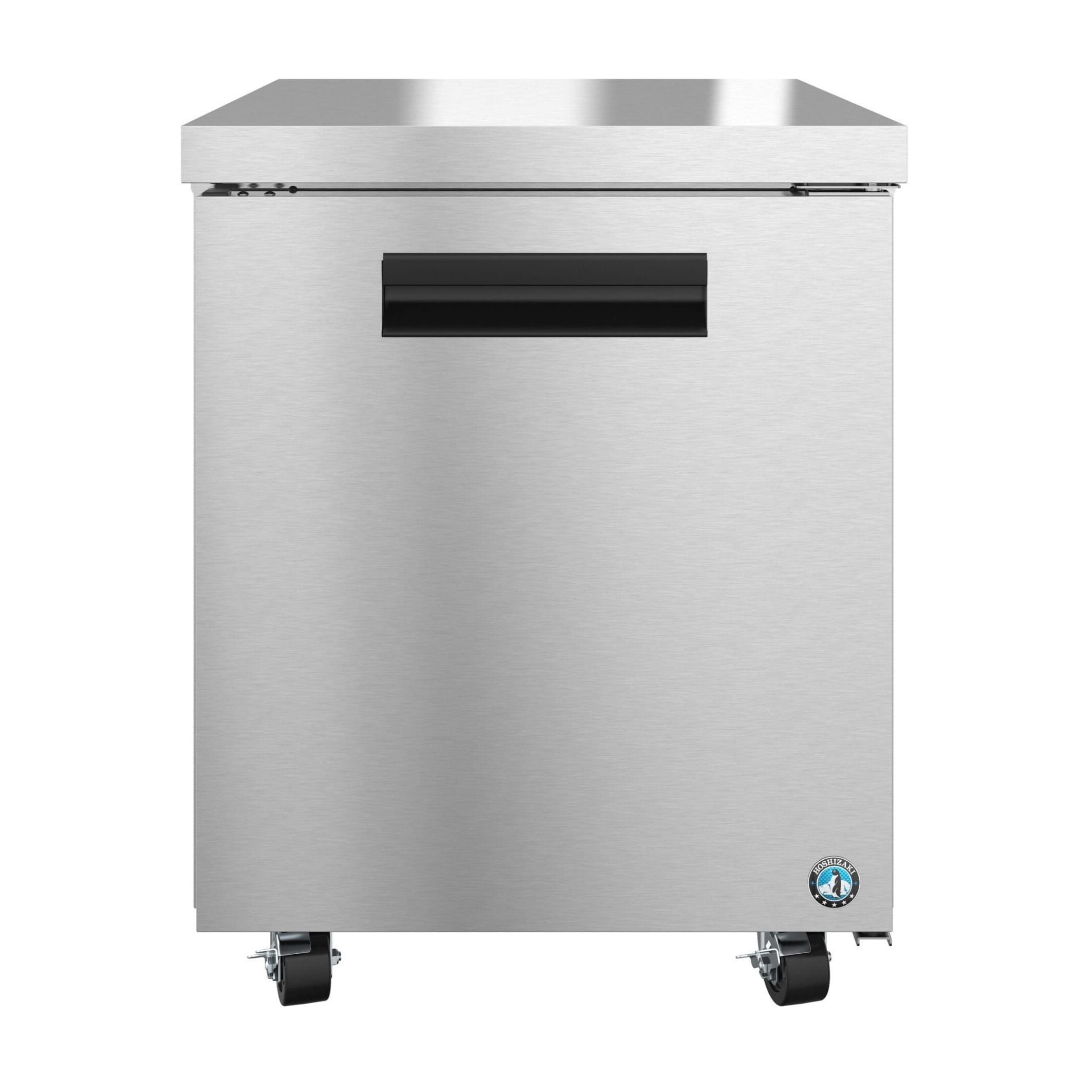

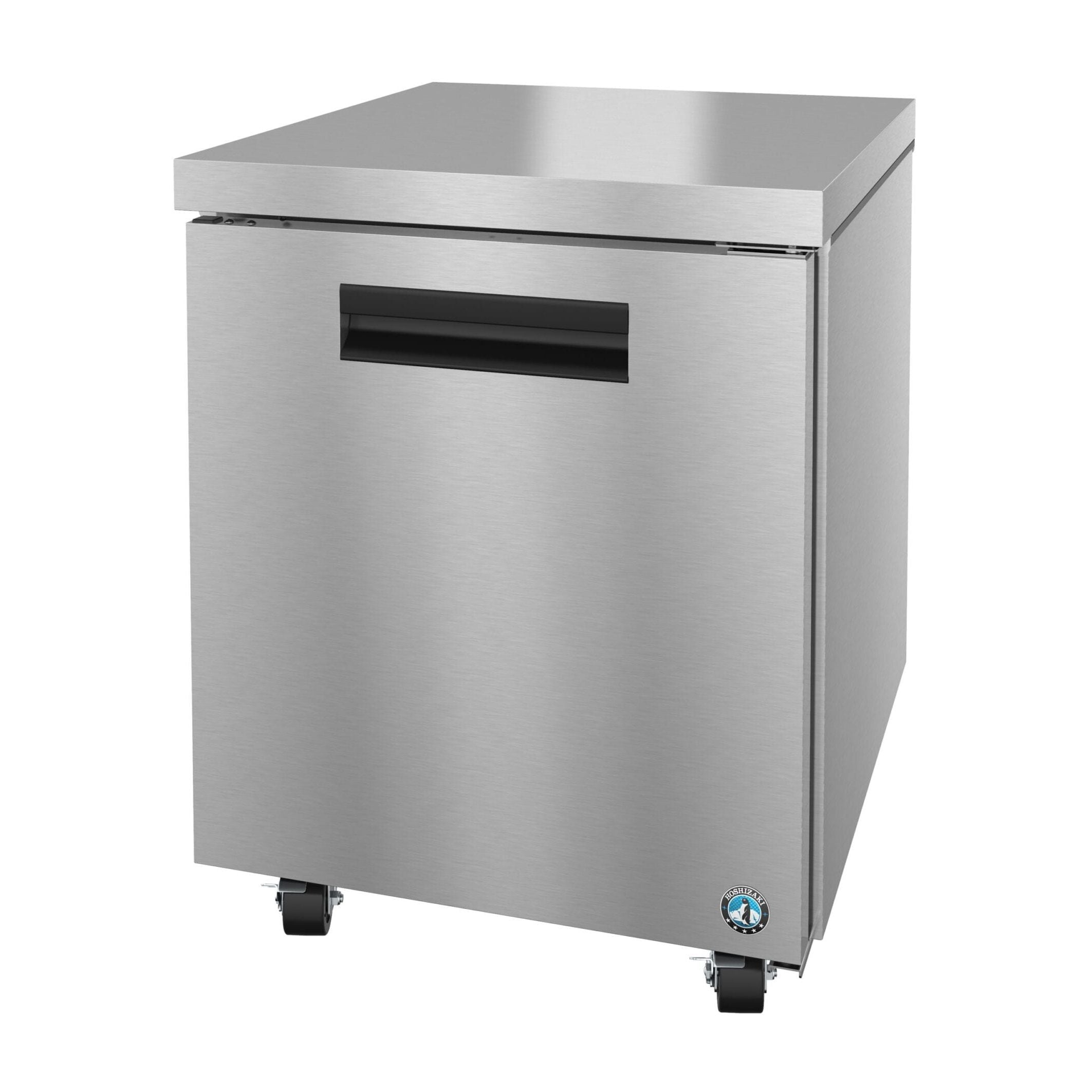

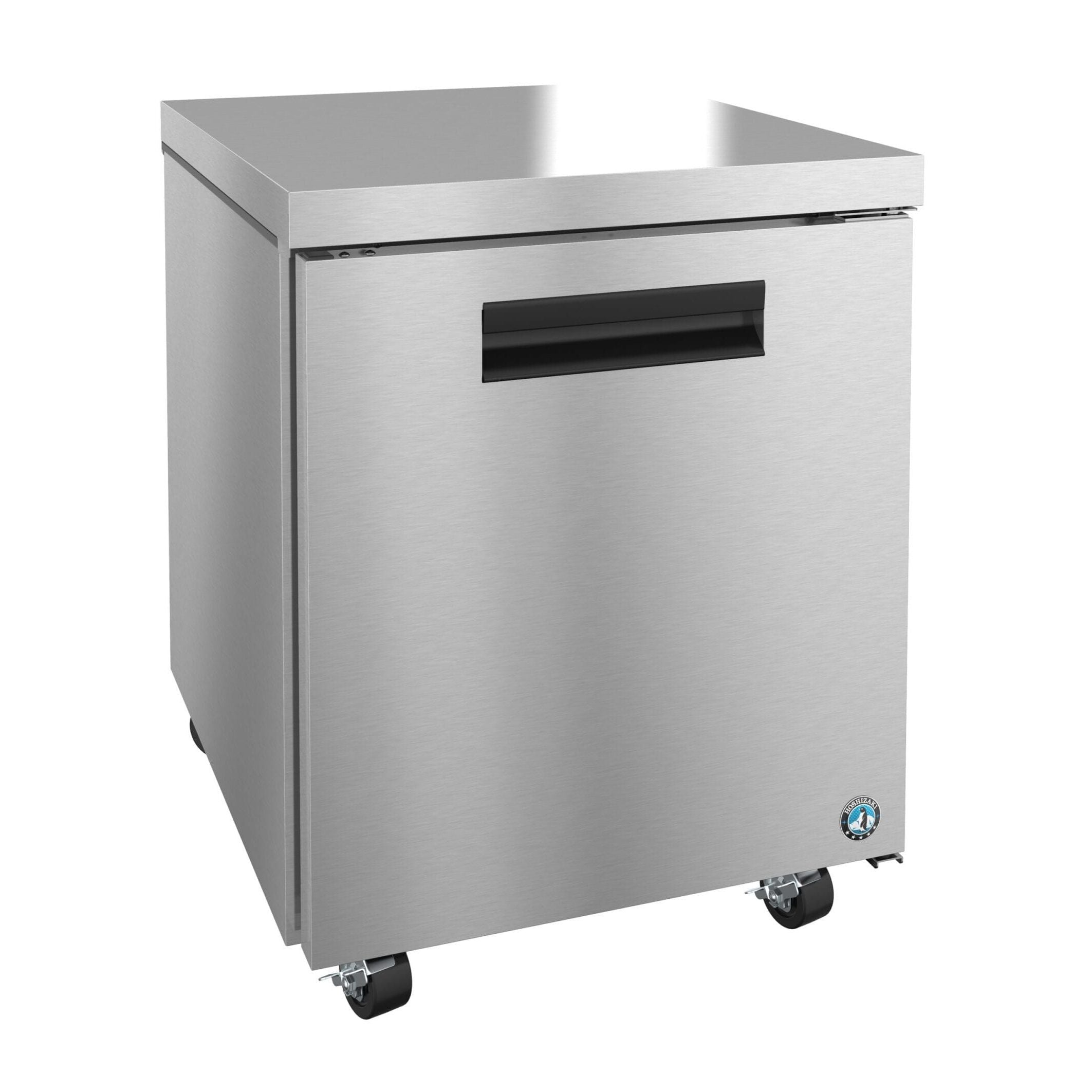

The Hoshizaki UF27B is a high-performance, space-saving undercounter freezer designed for commercial kitchens, bars, and prep stations. With a sleek stainless steel build and NSF-7 certification for 100°F ambient environments, this unit delivers reliable freezing power in a compact footprint.
Key Features
-
Interior Capacity: 7.21 cu. ft. gross / 6.21 cu. ft. AHAM
-
Exterior Dimensions: 27" W x 30" D x 33.75" H (with 4" casters)
-
Door: 1 solid stainless steel door with spring-assisted self-closing and stay-open feature
-
Shelving: 1 adjustable epoxy-coated shelf (22" W x 16" D)
-
Temperature Range: -10°F to 10°F
-
Control: Mechanical dial with 9 settings (factory default: 7 = approx. -5°F)
-
Refrigeration: Front-breathing, self-contained system with heated, time-initiated defrost
Construction & Durability
-
Exterior: Stainless steel front, sides, and top
-
Interior: Stainless steel top, sides, back, and floor
-
Insulation: 2" CFC-free foamed-in-place polyurethane
-
Door Design: Stepped edge protects gasket; field reversible
-
Handle: Flush-mount extruded aluminum
-
Evaporator: E-coated for corrosion resistance
-
Casters: 4" polyolefin stem casters (2 with brakes)
Mobility & Installation
-
Electrical: 115V/60Hz/1Ph, 5-15P NEMA plug, 10 ft. cord
-
Amperage: 2.4 Amps
-
Clearance: Requires 1.5" overhead and rear clearance
-
Shipping Weight: 175 lbs.
-
Crated Dimensions: 34" L x 31.5" W x 36.5" H
Certifications & Warranty
-
Certifications: NSF-7 certified for 100°F ambient; UL listed
-
Refrigerant: R290 hydrocarbon (1.9 oz.)
-
Energy Consumption: 2.4 kWh/day
-
Heat Rejection: 489 BTU/hr
-
Compressor: 1/5 HP, 798 BTU/hr
-
Warranty: 7-year warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico, U.S. Territories)
Optional Accessories
- 2.25" or 6" Casters
- Stacking Kit (HS-5112)
- Additional Epoxy or Stainless Steel Shelves
- Overshelves
- Cylinder Locks (-01 factory installed)
- Foot Pedal Kits (HS-5378 for left hinge, HS-5379 for right hinge)
- Lower Epoxy Shelf (HS-5161)
- Lower Stainless Shelf (HS-5169)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its durability, innovation, and energy efficiency. The UF27B is engineered to meet the demands of busy kitchens with a compact design, robust construction, and eco-friendly refrigerant. Backed by a 7-year warranty, it’s a smart investment for any foodservice operation
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
