Overview

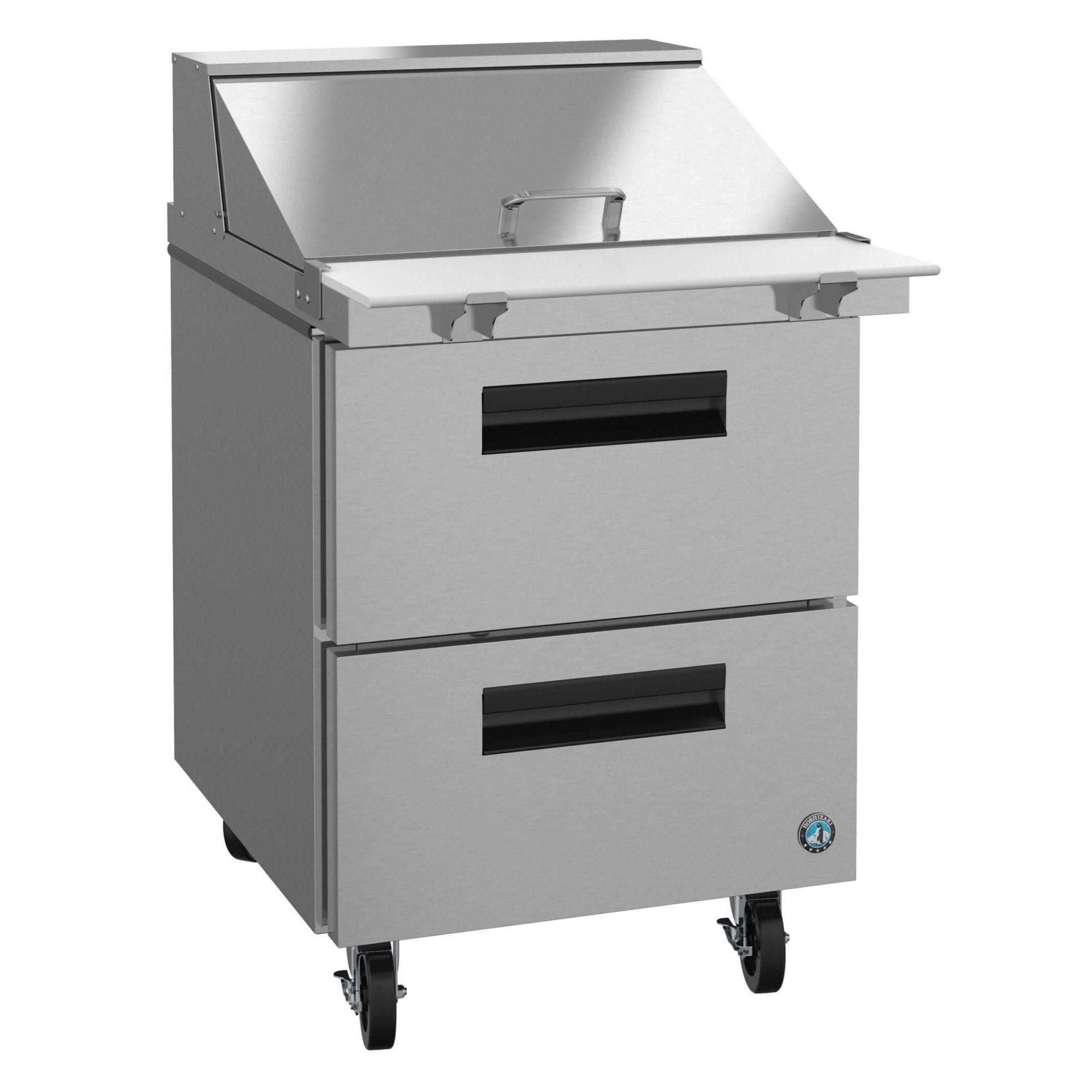

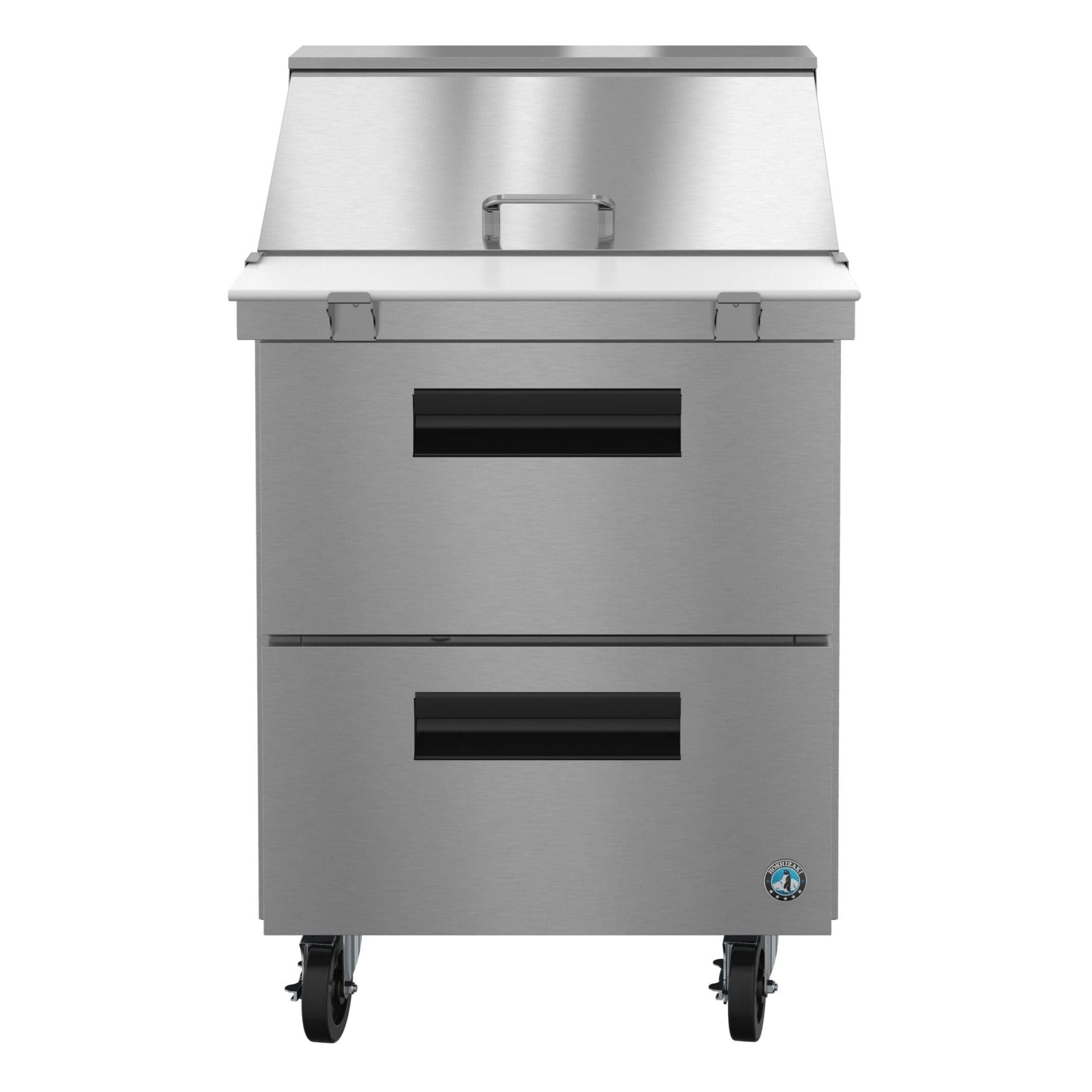

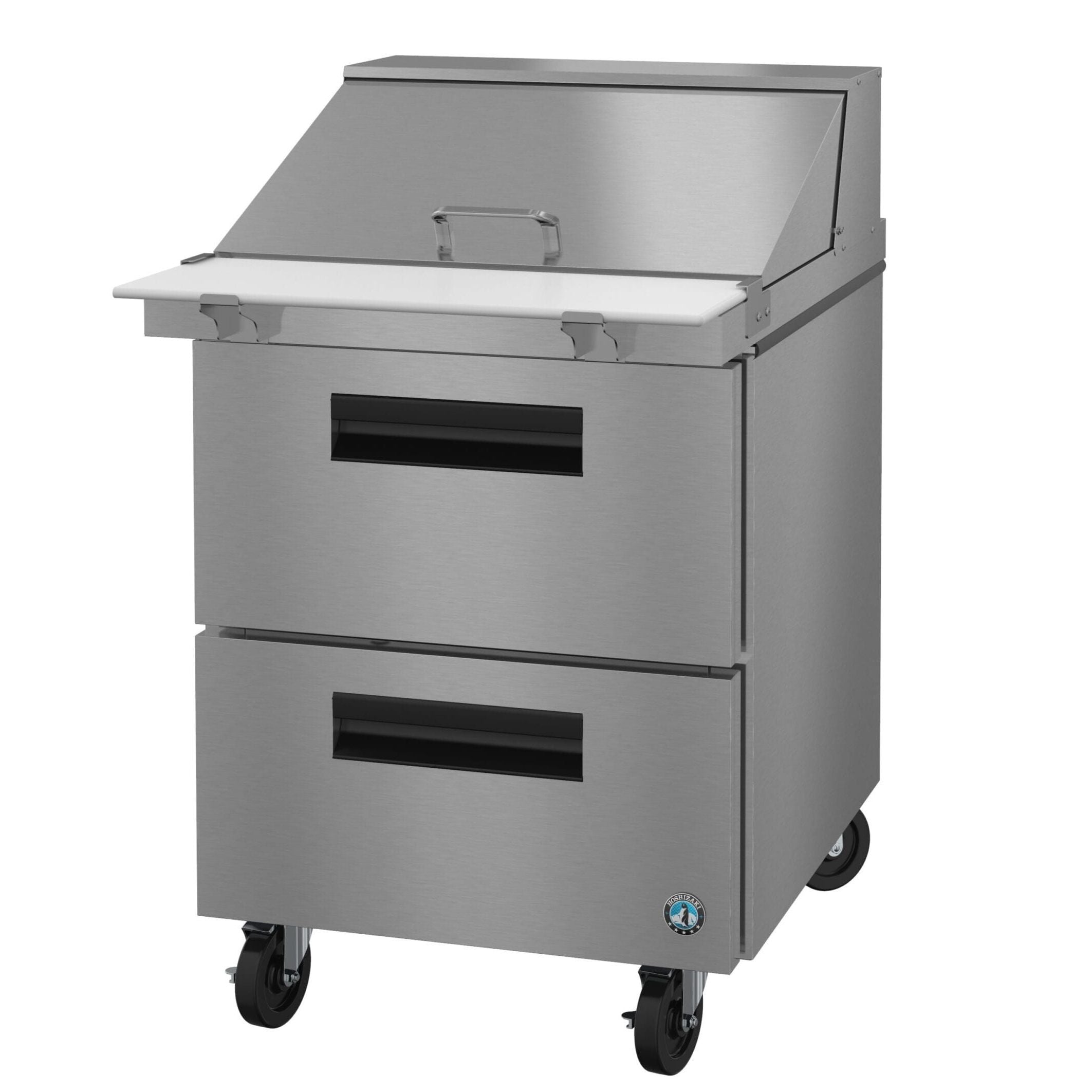

The Hoshizaki SR27B-12MD2 is a compact, high-performance prep refrigerator designed for commercial kitchens that require efficient ingredient storage and accessibility. Featuring a mega top configuration with 12 pan capacity and dual refrigerated drawers, this unit is ideal for sandwich, salad, and pizza prep stations.
Key Features
-
Mega Top Configuration: Includes 12 NSF-approved 1/6 size pans (4" deep) with stainless steel adapter bars; accommodates 6" deep pans for increased volume.
-
Dual Drawers: Heavy-duty stainless steel drawer slides with acetal rollers; top drawer fits (1) full-size pan + (2) ¼-size pans; bottom drawer fits (1) full-size pan.
-
Cutting Board: 27" x 10" x ½" thick white polyethylene cutting board included.
-
Prep Guard: Removable stainless steel guard simplifies cleanup from spills.
-
Temperature Control: Dial control with cabinet thermometer; factory default set to 34°F.
-
Self-Contained Refrigeration: Front breathing design allows zero clearance installation.
Construction & Durability
-
Exterior: Stainless steel front, sides, and top.
-
Interior: Stainless steel sides, back, and floor with ABS ceiling.
-
Insulation: 2" CFC-free foamed-in-place polyurethane.
-
Drawers: 16-gauge stainless steel frames and slides; tested for 300,000 cycles at 175 lb. load.
-
Handles & Gaskets: Flush mount aluminum handles; magnetic drawer gaskets are removable for cleaning.
-
Casters: 6" stem casters standard (two with brakes).
Mobility & Installation
-
Dimensions: 27" W x 34" D x 44.25" H (with casters)
-
Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
-
Cord Length: 10 ft.
-
Ambient Range: Operates efficiently from 45°F to 100°F
-
Shipping Weight: 254 lbs.
-
Crated Dimensions: 36" x 31.5" x 46.5"
Certifications & Warranty
-
Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor (entire unit)
- 7-Year Compressor Warranty
-
Refrigerant: R290 Hydrocarbon (2.3 oz)
-
Energy Consumption: 2.3 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-up covers
- Additional epoxy shelves
- Composite cutting board (HS-5265)
- Drawer divider bars
- Rail adapter bars
- Overshelves
- 2.25" or 4" casters
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR27B-12MD2 is engineered to maintain NSF-7 temperatures even in 100°F ambient conditions, making it ideal for demanding foodservice environments. With its durable construction, ergonomic drawer system, and advanced cooling technology, this prep table delivers reliable performance and long-term value.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
