Hoshizaki RM-7-HC Glass Door Merchandiser – Compact, Energy-Efficient Display Refrigerator
Overview

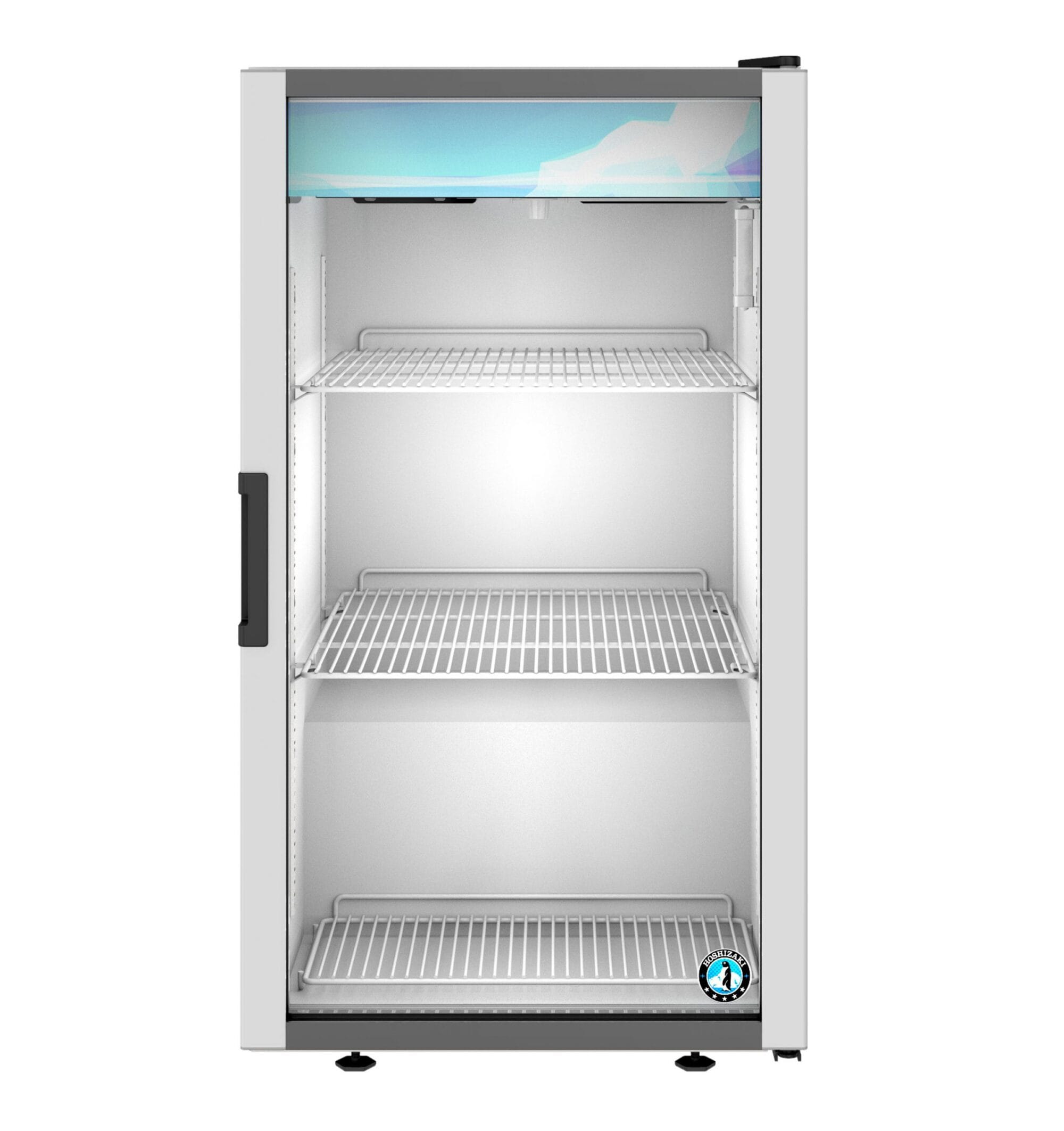

The Hoshizaki RM-7-HC is a countertop glass door merchandiser designed to showcase beverages and packaged products with style and efficiency. Featuring a sleek aluminum exterior, energy-saving LED lighting, and a forced-air evaporator system, this unit is ideal for convenience stores, cafes, and retail environments where visibility and reliability are key.
Key Features
- Compact countertop design with 7 cu. ft. of storage
- Curved vertical corners with silver, black, or white aluminum finish
- Energy-efficient Low-E double-pane glass door with argon gas
- Spring-assisted self-closing door with stay-open feature
- Bright vertical LED interior lighting
- Forced-air evaporator for rapid temperature pull-down
- Electronic control with energy-saving mode and Bluetooth Smart® capability
- Adjustable temperature range: 32°F to 39°F
- Stackable up to three units high for space efficiency
Construction & Durability
- Exterior Finish: Silver, black, or white aluminum
- Interior Volume: 7 cu. ft.
- Dimensions: 21.25" W x 25" D x 37.75" H
- Shelving: 2 adjustable epoxy-coated wire shelves + 1 floor shelf
- Shelf Dimensions: 17.75" W x 20.75" D (adjustable), 18" W x 9.25" D (floor)
- Bottle Capacity: 102 (20 oz.), 217 (12 oz.)
- Shipping Weight: 180 lbs.
- Stackable: Yes (up to 3 units)
Mobility & Installation
- Electrical Requirements: 115V/60Hz/1Ph
- Plug Type: NEMA 5-15P (8 ft. cord included)
- Amperage: 3.2 Amps
- Energy Consumption: 1.38 kWh/day (ASHRAE)
- Compressor: 1/8 HP, 582 BTU/hr
- Refrigerant: R290 (natural, environmentally friendly)
- Ambient Temp Range: 60°F to 86°F
-
Installation Notes:
- Requires 8" clearance behind unit for airflow
- Must be installed indoors on a level surface
- Avoid direct sunlight exposure
Certifications & Warranty
- Certifications: UL Listed, ANSI/NSF 7, ENERGY STAR® Partner
-
Warranty Coverage:
- 3 Years Parts & Labor on entire unit
- 5 Years Parts on compressor
- Valid in: United States, Canada, Puerto Rico, and U.S. Territories
Optional Accessories
-
Epoxy Shelves:
- HS-5343 (standard shelf)
- HS-5344 (floor shelf)
- Custom Graphics: Header signage area available with vinyl graphic options (see manual for specs)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The RM-7-HC merchandiser combines sleek design with reliable performance, making it a perfect choice for businesses that value presentation and efficiency. With ENERGY STAR® certification and a robust warranty, this unit delivers value that goes Beyond Strong.
