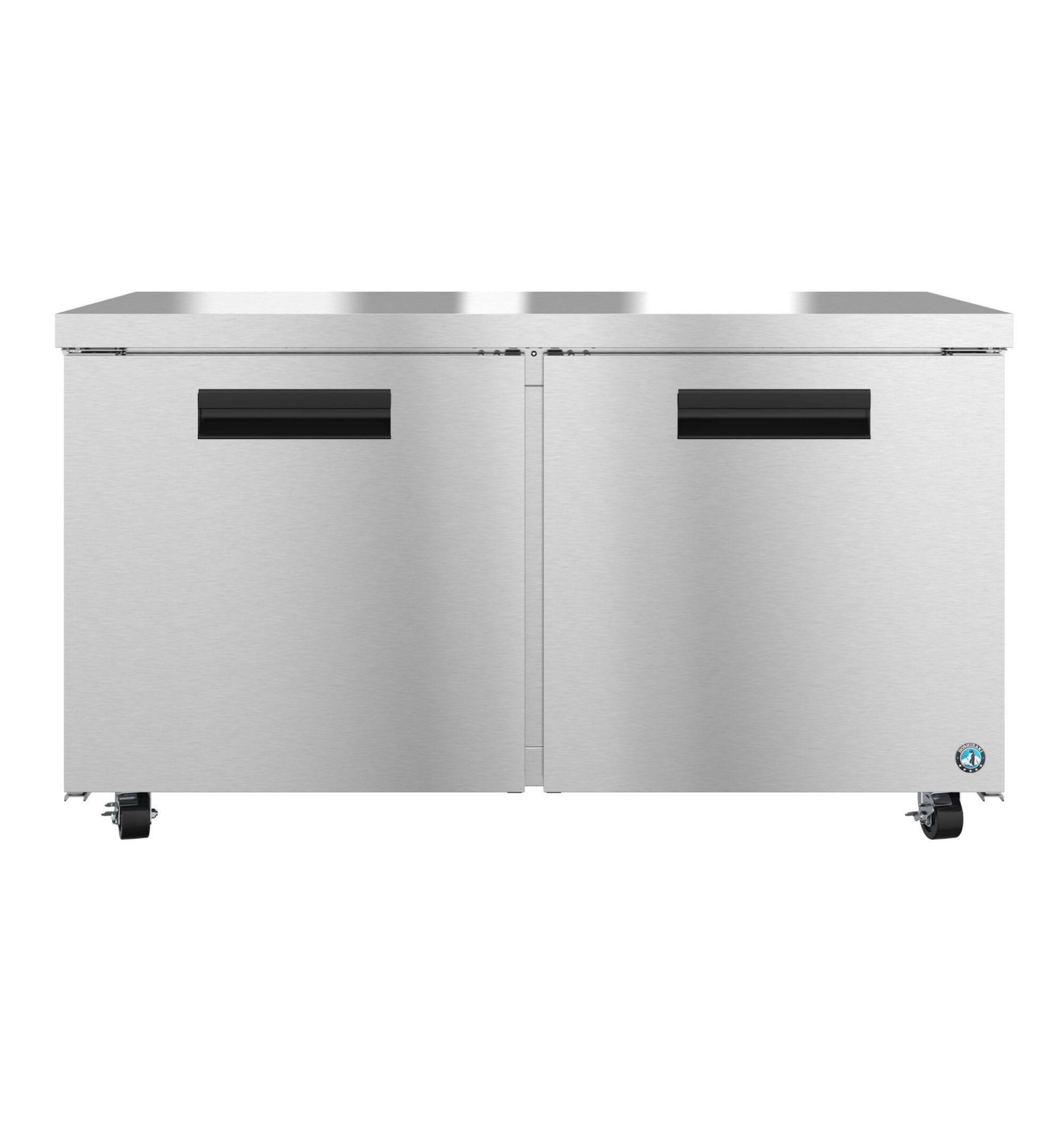

Hoshizaki UR60B Undercounter Refrigerator – 60” Two-Section, Solid Door
Overview
The Hoshizaki UR60B is a premium undercounter refrigerator engineered for high-performance commercial environments. With ENERGY STAR® certification and NSF-7 compliance, this unit delivers reliable refrigeration in ambient temperatures up to 100°F. Its compact footprint, stainless steel construction, and front-breathing design make it ideal for tight kitchen spaces.
Key Features
- NSF-7 Certified: Maintains safe temperatures in ambient conditions up to 100°F.
- ENERGY STAR® Qualified: Efficient operation with low energy consumption (0.927 kWh/day).
- Stainless Steel Interior & Exterior: Durable, easy to clean, and corrosion-resistant.
- Front Breathing Design: Allows for zero-clearance installation.
- Spring-Assisted Doors: Self-closing with stay-open feature past 90°.
- Field Reversible Doors: No kit required.
- Magnetic Door Gaskets: Snap-in design for easy cleaning.
- Hot Gas Condensate Removal: Maintenance-free and efficient.
- E-coated Evaporator Coil: Extended life and corrosion resistance.
- Adjustable Shelving: Two epoxy-coated shelves with anodized aluminum supports.
Construction & Durability
- Cabinet: Stainless steel top, front, and sides; coated steel back and bottom.
- Interior: Stainless steel sides, back, and floor with ABS top.
- Insulation: 2” CFC-free foamed-in-place polyurethane.
- Doors: ABS interior liner with Hoshizaki’s exclusive “stepped” design to protect gaskets.
- Casters: 4” polyolefin stem casters (two with brakes) standard.
Mobility & Installation
- Dimensions: 60” W x 30” D x 33.75” H (with 4” casters)
- Depth with Doors Open: 58.5”
- Interior Capacity: 15.1 ft³ (AHAM)
- Crated Weight: 290 lbs.
- Crated Dimensions: 62.5” x 34” x 36.5”
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 3.0A
- Compressor: 1/5 HP, 798 BTU/hr
- Refrigerant: R290 (2.3 oz)
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2.25” or 6” Casters
- Stacking Kit (HS-5112)
- Cylinder Locks (-01 factory installed)
- Additional Epoxy or Stainless Steel Shelves
- Overshelves
- Foot Pedal (Right or Left Mount)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, sustainability, and innovation. The UR60B exemplifies this legacy with its rugged construction, energy-efficient performance, and thoughtful design. Whether you're outfitting a busy kitchen or upgrading your cold storage, Hoshizaki delivers unmatched reliability and peace of mind.
