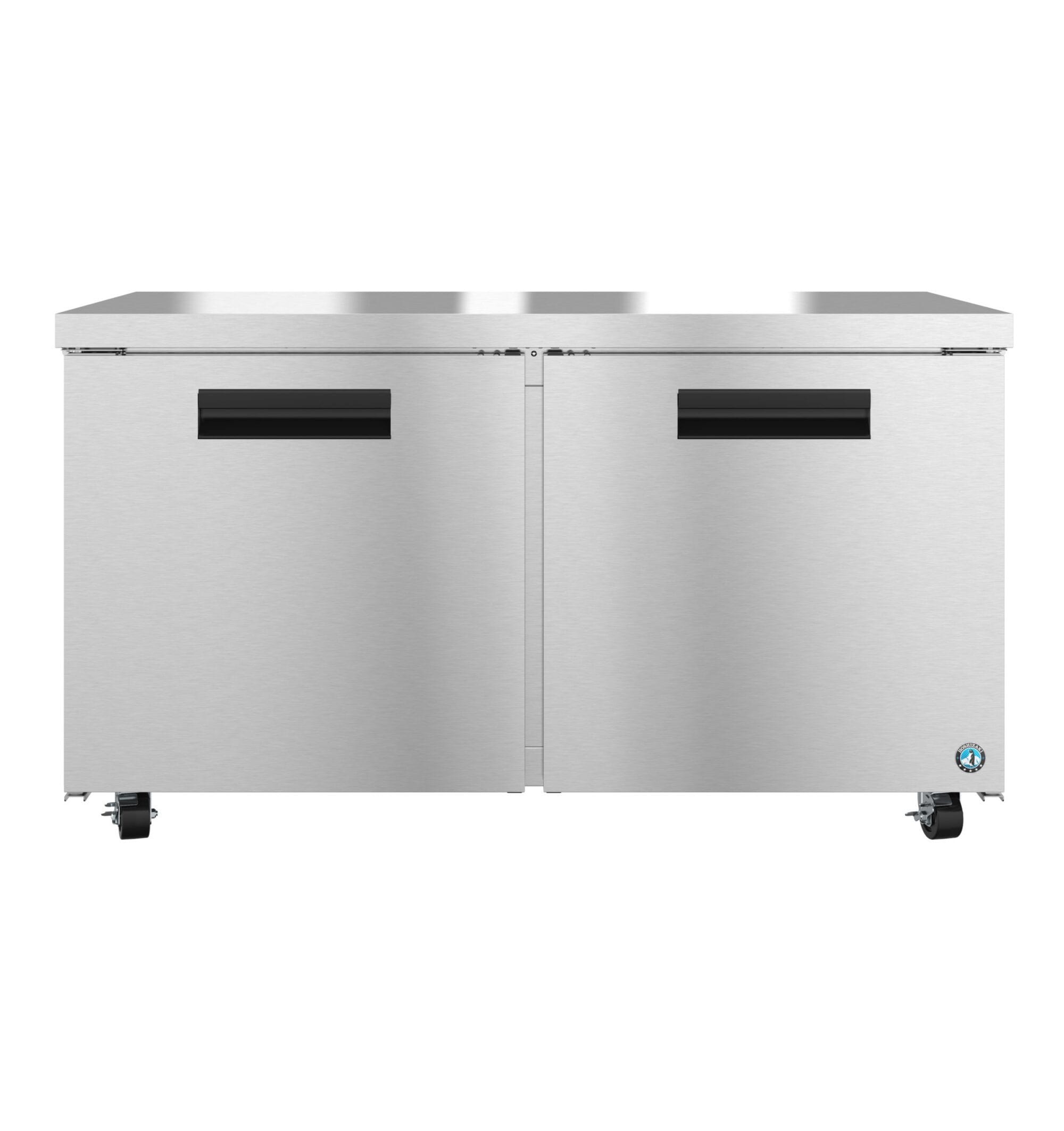

Hoshizaki UF60B Undercounter Freezer – 60” Two-Section, Solid Door
Overview
The Hoshizaki UF60B is a high-performance, ENERGY STAR® qualified undercounter freezer designed for demanding commercial kitchens. With a sleek stainless steel build and advanced refrigeration system, it ensures consistent freezing even in high ambient temperatures. Ideal for restaurants, cafes, and institutional foodservice operations, the UF60B offers durability, efficiency, and flexibility in a compact footprint.
Key Features
- NSF-7 Certified: Maintains safe temperatures in ambient conditions up to 100°F.
- ENERGY STAR® Qualified: Energy-efficient operation for reduced utility costs.
- Stainless Steel Interior & Exterior: Easy to clean and corrosion-resistant.
- Front Breathing Design: Allows for zero-clearance installation.
- Spring-Assisted Doors: Self-closing with stay-open feature past 90°.
- Field Reversible Doors: No kit required.
- Magnetic Door Gaskets: Snap-in design for easy cleaning.
- Hot Gas Condensate Removal: Efficient and maintenance-free.
- E-coated Evaporator Coil: Extended life and corrosion resistance.
- Adjustable Shelving: Two epoxy-coated shelves with anodized aluminum supports.
Construction & Durability
- Cabinet: Stainless steel top, front, and sides; coated steel back and bottom.
- Interior: Stainless steel top, sides, back, and floor.
- Insulation: 2” CFC-free foamed-in-place polyurethane.
- Doors: ABS interior liner with Hoshizaki’s exclusive “stepped” design to protect gaskets.
- Casters: 4” polyolefin stem casters (two with brakes) standard.
Mobility & Installation
- Dimensions: 60” W x 30” D x 33.75” H (with 4” casters)
- Depth with Doors Open: 58.5”
- Interior Capacity: 15.1 ft³ (AHAM)
- Crated Weight: 310 lbs.
- Crated Dimensions: 62.5” x 34” x 36.5”
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 4.0A
- Compressor: 1/3 HP, 1426 BTU/hr
- Energy Use: 3.95 kWh/day
- Refrigerant: R290 (2.6 oz)
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2.25” or 6” Casters
- Stacking Kit (HS-5112)
- Cylinder Locks (-01 factory installed)
- Additional Epoxy or Stainless Steel Shelves
- Overshelves
- Foot Pedal (Right or Left Mount)
Why Choose Hoshizaki?
Hoshizaki is a trusted leader in commercial refrigeration, known for engineering excellence and sustainability. The UF60B exemplifies this commitment with its rugged construction, energy-efficient performance, and thoughtful design. Whether you're outfitting a busy kitchen or upgrading your cold storage, Hoshizaki delivers reliability and peace of mind.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
