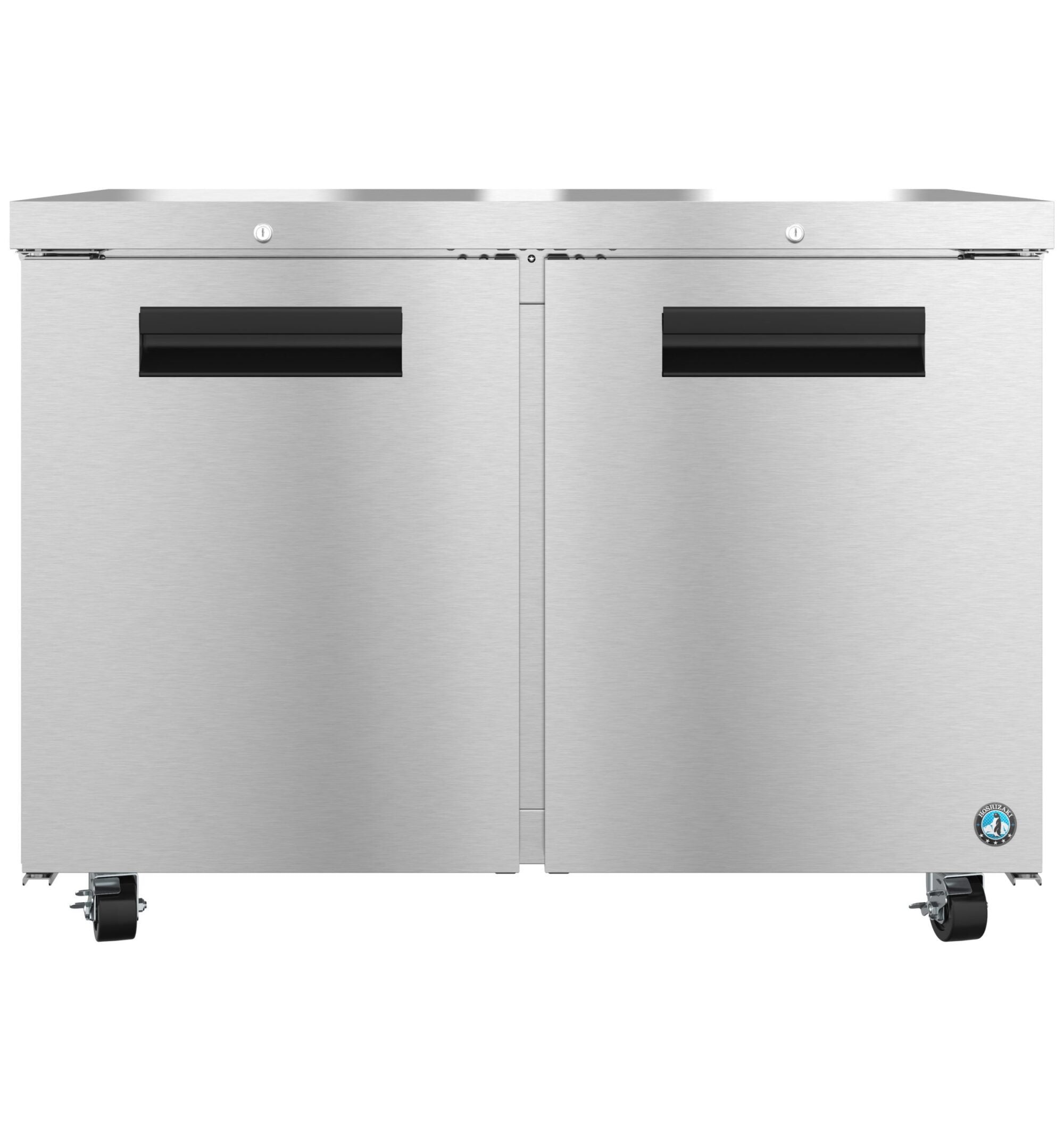

Hoshizaki UF48B-01 Undercounter Freezer – 48” Two-Section Solid Door
Overview
The Hoshizaki UF48B-01 is a premium two-section undercounter freezer designed for commercial kitchens that demand durability, energy efficiency, and compact performance. With a sleek stainless steel exterior and interior, this unit is built to maintain NSF-7 temperatures even in ambient conditions up to 100°F, making it ideal for high-volume foodservice operations.
Key Features
- NSF-7 Certified: Maintains safe temperatures in ambient conditions up to 100°F.
- Stainless Steel Construction: High-grade stainless steel exterior and interior for hygiene and durability.
- Front Breathing Design: Allows for built-in installation with minimal clearance.
- Spring-Assisted Doors: Self-closing with stay-open feature past 90°.
- Field Reversible Doors: No kit required.
- Magnetic Door Gaskets: Snap-in design for easy cleaning and replacement.
- Hot Gas Condensate Removal: Maintenance-free and efficient.
- E-coated Evaporator Coil: Corrosion-resistant for extended life.
- Adjustable Shelving: Two epoxy-coated shelves with anodized aluminum supports.
Construction & Durability
- Exterior: Stainless steel top, front, and sides; coated steel back and bottom.
- Interior: Stainless steel top, sides, back, and floor.
- Insulation: 2” CFC-free foamed-in-place polyurethane throughout cabinet and doors.
- Doors: ABS interior liner with Hoshizaki’s exclusive “stepped” design to protect gaskets.
- Casters: 4” polyolefin stem casters (two with brakes) standard.
Mobility & Installation
- Dimensions: 48” W x 30” D x 33.75” H (with 4” casters)
- Depth with Doors Open: 52.5”
- Interior Capacity: 12 ft³ (AHAM)
- Crated Weight: 258 lbs.
- Crated Dimensions: 52.5” x 34” x 36.5”
-
Electrical Specs:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 3.6A
- Compressor: 1/3 HP, 2431 BTU/hr
- Energy Use: 3.6 kWh/day
- Refrigerant: R290 (2.6 oz)
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- 2.25” or 6” Casters
- Stacking Kit (HS-5112)
- Cylinder Locks (-01 factory installed)
- Additional Epoxy or Stainless Steel Shelves
- Overshelves
- Foot Pedal (Right or Left Mount)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The UF48B-01 exemplifies this legacy with its rugged construction, energy-efficient performance, and thoughtful design. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers reliability and peace of mind.
