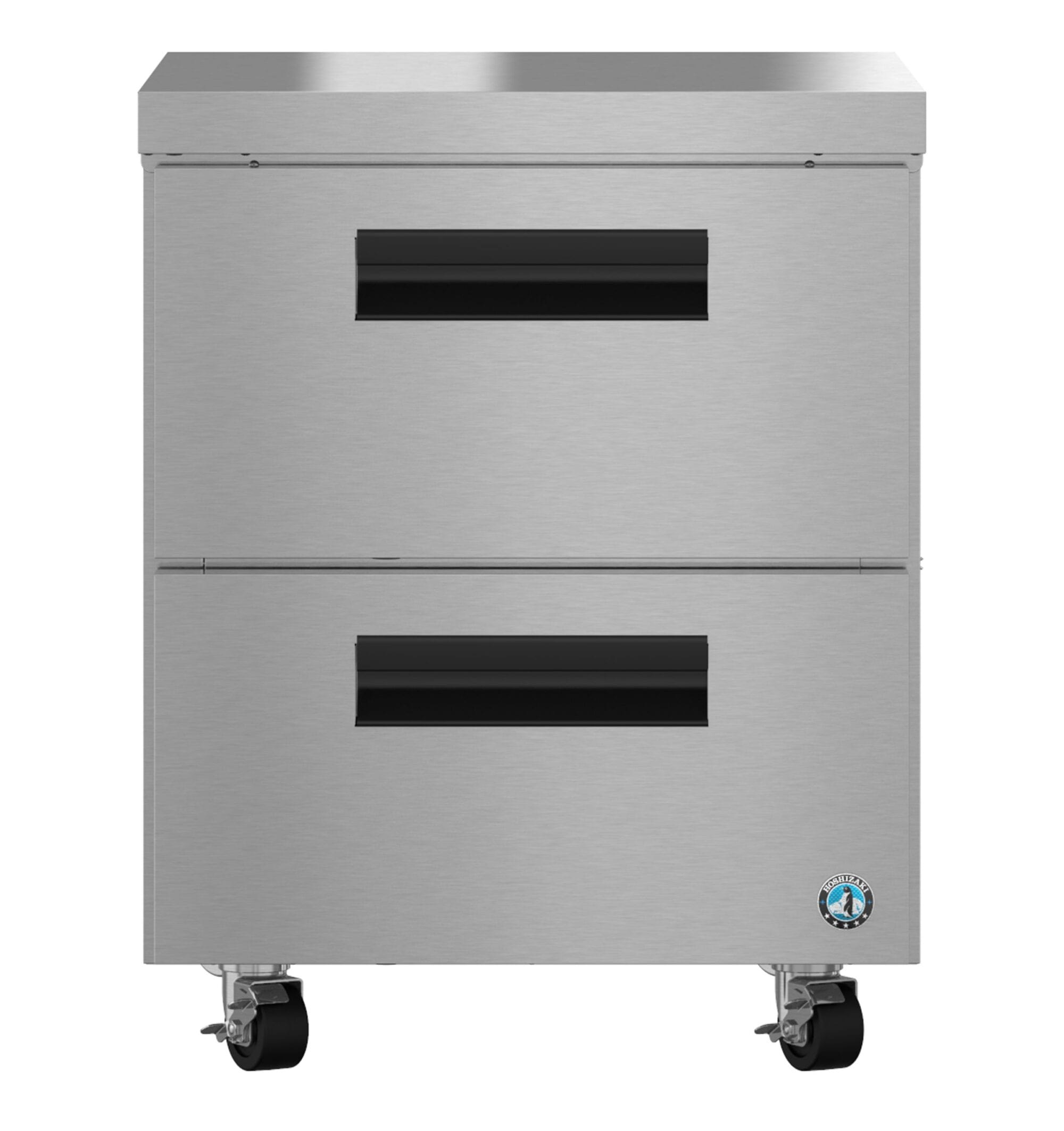

Hoshizaki UF27B-D2 27” Undercounter Freezer with Drawers – Compact, Durable, NSF Certified
Overview
The Hoshizaki UF27B-D2 is a high-performance undercounter freezer designed for commercial kitchens that demand durability, efficiency, and space optimization. With a stainless steel construction, environmentally friendly refrigerant, and drawer-style access, this unit is ideal for foodservice operations requiring quick, organized access to frozen ingredients.
Key Features
- Capacity: 7.21 cu. ft. gross / 6.21 cu. ft. AHAM
- Dimensions: 27" W x 30" D x 33.75" H (with 4" casters)
- Drawers: Two stainless steel drawers with 16-gauge construction and acetal roller slides
-
Pan Capacity:
- Top drawer: (1) 12"x20" full-size pan + (2) ¼-size pans (up to 6" deep)
- Bottom drawer: (1) full-size pan (up to 6" deep)
- Temperature Range: -10°F to 10°F
- Energy Consumption: 2.4 kWh/day
- Compressor: 1/5 HP, 1354 BTU/hr
- Heat Rejection: 489 BTU/hr
- Refrigerant: R290 (1.9 oz.)
Construction & Durability
- Exterior: Stainless steel front, sides, and top
- Interior: Stainless steel sides, back, and floor
- Insulation: 2" CFC-free foamed-in-place polyurethane
- Drawer Slides: 16-gauge stainless steel with 175 lb. dynamic load capacity, life-tested to 300,000 cycles
- Handles: Flush-mount extruded aluminum
- Gaskets: Snap-in magnetic drawer gaskets for easy cleaning
- Evaporator: E-coated for corrosion resistance
- Condensate Removal: Hot gas, non-electric evaporation system
Mobility & Installation
- Casters: 4" polyolefin stem casters (2 with brakes)
- Electrical: 115V/60Hz/1Ph, 5-15P NEMA plug, 10 ft. cord
- Amperage: 3.0 Amps
- Clearance Requirements: 1.5" overhead and rear clearance
- Crated Weight: 207 lbs.
- Crated Dimensions: 34" L x 31.5" W x 36.5" H
Certifications & Warranty
- Certifications: NSF-7 certified for 100°F ambient; UL listed; ENERGY STAR Partner
- Warranty: 7-year warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico, U.S. Territories)
Optional Accessories
- 2.25" or 6" Casters
- Overshelves
- Stainless Steel Back Panel
- Drawer Divider Bars (e.g., HS-5433)
- Rail Adapter Bars
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its innovation, reliability, and commitment to sustainability. The UF27B-D2 undercounter freezer is engineered to perform in demanding environments, offering exceptional drawer access, energy efficiency, and long-term durability. Backed by a 7-year warranty, it’s a smart investment for any professional kitchen.
