Product Details
Overview

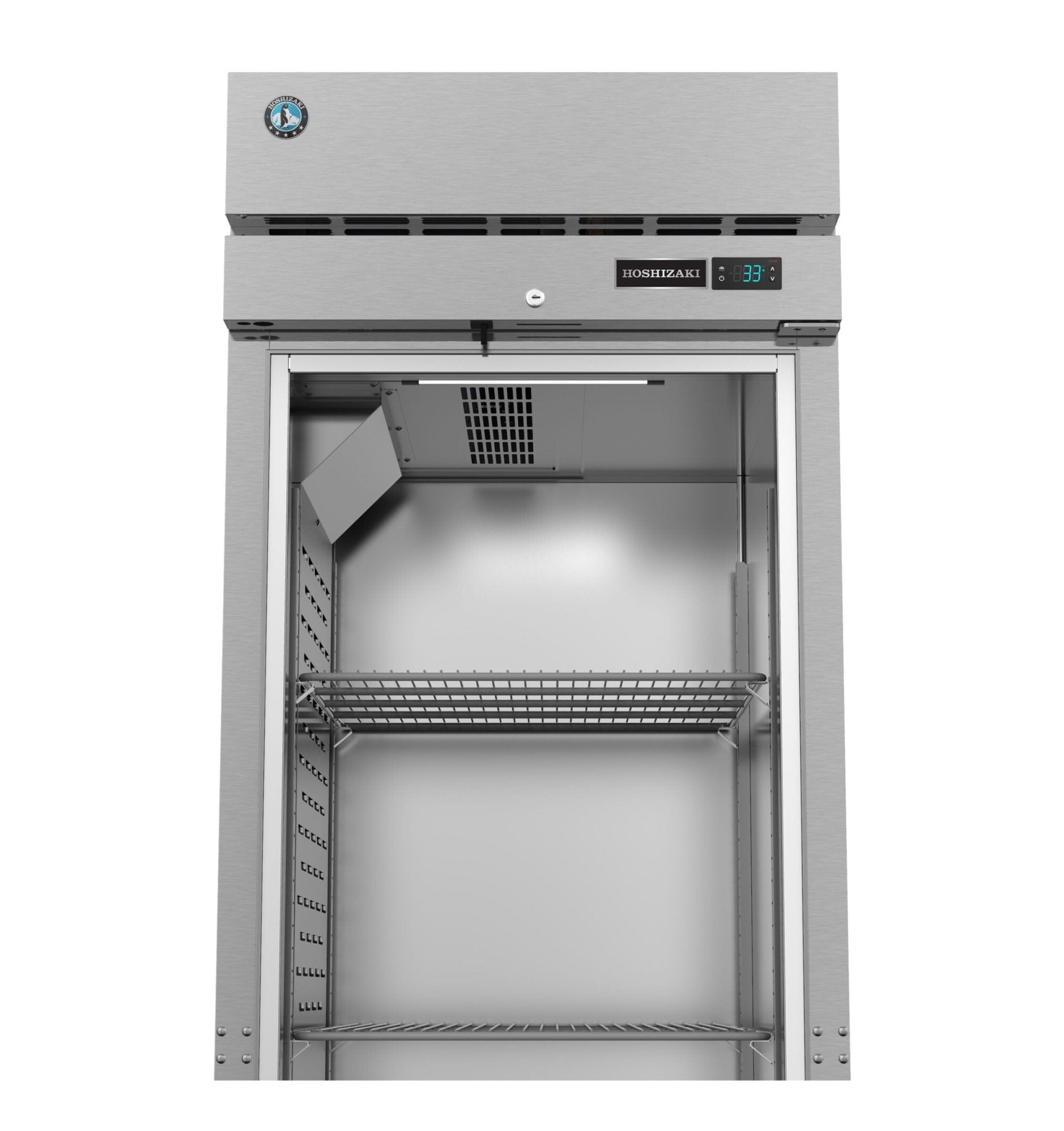

The Hoshizaki R1A-HSL is a high-performance, energy-efficient reach-in refrigerator designed for demanding commercial environments. Featuring a half stainless steel door configuration, this unit offers a sleek, durable design with advanced temperature control and maximum storage capacity in a compact footprint. Ideal for kitchens, foodservice operations, and institutional use.
Key Features
-
Half Stainless Steel Door Design:
- Durable stainless steel interior and exterior
- Field reversible doors with locks
- Spring-assisted self-closing doors with stay-open feature
-
Advanced Temperature Control:
- Solid-state digital controller with LED display (°F/°C)
- High/low temperature and voltage alarms
-
Interior Lighting:
- Energy-efficient LED light activates when doors open
-
Shelving:
- Three adjustable epoxy-coated wire shelves
- Stainless steel shelf supports with 1" increments
-
Door Gasket Protection:
- Exclusive stepped door design protects recessed magnetic gasket
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: All stainless steel with ducted air distribution system
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Door Hinges: 8-gauge stainless steel hinge plates with welded pins
- Casters: 4" polyolefin casters (two with brakes)
- Stackable: Units can be stacked two-high to save space
Mobility & Installation
- Dimensions: 27.5"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
- Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
- Crated Weight: 345 lbs.
- Crated Dimensions: 37.5"W x 31.5"D x 81"H
-
Installation Notes:
- Minimum rear clearance: 3"
- Ambient operating range: 45°F to 100°F
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-HSL refrigerator exemplifies this legacy with its robust construction, energy-saving features, and intuitive controls. Designed to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
Overview
The Hoshizaki R1A-HSL is a high-performance, energy-efficient reach-in refrigerator designed for demanding commercial environments. Featuring a half stainless steel door configuration, this unit offers a sleek, durable design with advanced temperature control and maximum storage capacity in a compact footprint. Ideal for kitchens, foodservice operations, and institutional use.
Key Features
-
Half Stainless Steel Door Design:
- Durable stainless steel interior and exterior
- Field reversible doors with locks
- Spring-assisted self-closing doors with stay-open feature
-
Advanced Temperature Control:
- Solid-state digital controller with LED display (°F/°C)
- High/low temperature and voltage alarms
-
Interior Lighting:
- Energy-efficient LED light activates when doors open
-
Shelving:
- Three adjustable epoxy-coated wire shelves
- Stainless steel shelf supports with 1" increments
-
Door Gasket Protection:
- Exclusive stepped door design protects recessed magnetic gasket
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: All stainless steel with ducted air distribution system
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Door Hinges: 8-gauge stainless steel hinge plates with welded pins
- Casters: 4" polyolefin casters (two with brakes)
- Stackable: Units can be stacked two-high to save space
Mobility & Installation
- Dimensions: 27.5"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
- Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
- Crated Weight: 345 lbs.
- Crated Dimensions: 37.5"W x 31.5"D x 81"H
-
Installation Notes:
- Minimum rear clearance: 3"
- Ambient operating range: 45°F to 100°F
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-HSL refrigerator exemplifies this legacy with its robust construction, energy-saving features, and intuitive controls. Designed to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
