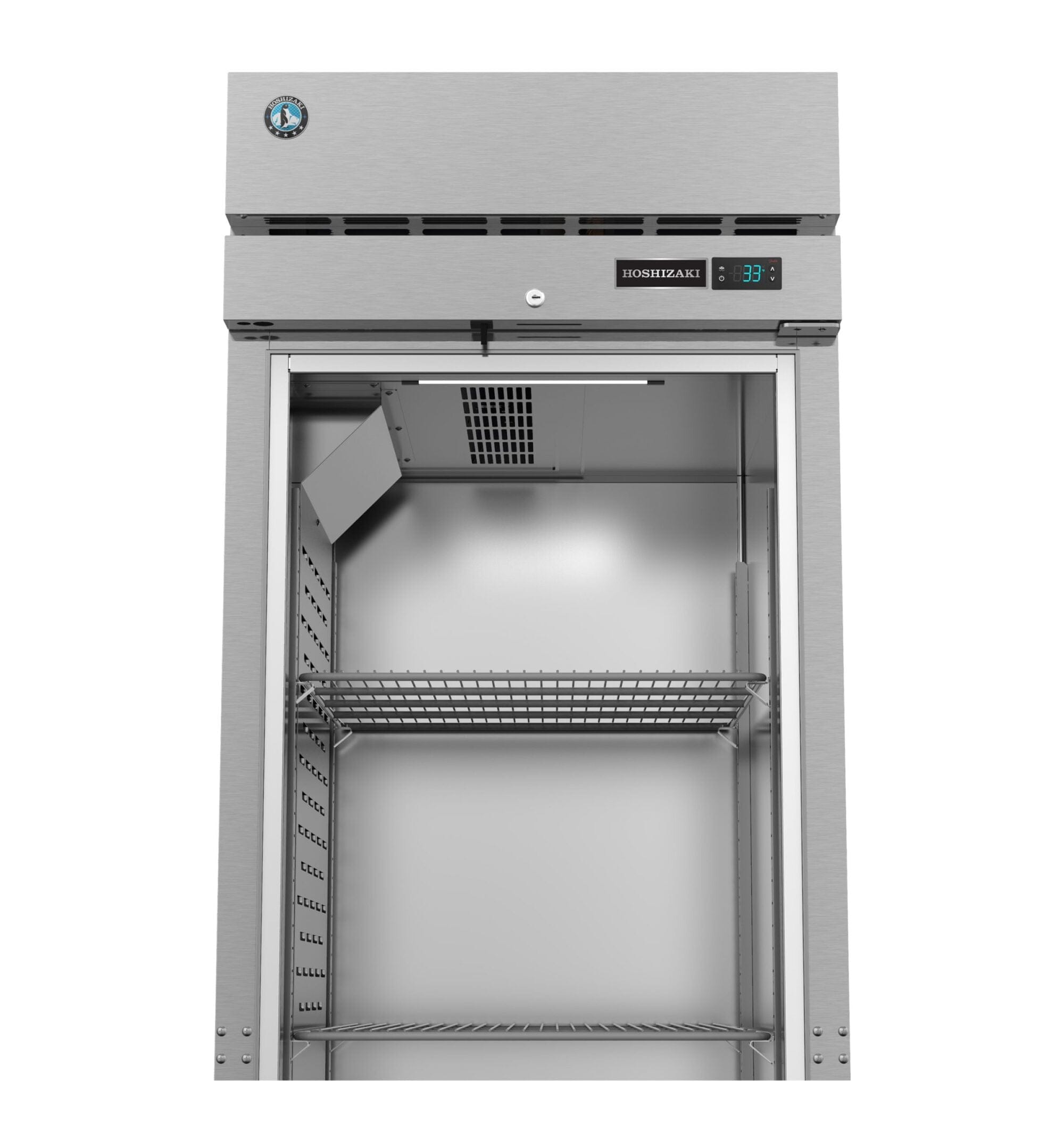

Hoshizaki R1A-FS 27.5" Upright Reach-In Refrigerator – Full Stainless Door, Right Hinge
by Hoshizaki
$4,509.12
- Product Details
- Shipping
- Assembly
- Warranty
- Reviews
Product Details
Overview
The Hoshizaki R1A-FS is a premium reach-in refrigerator engineered for commercial kitchens that demand durability, energy efficiency, and consistent performance. With a full stainless steel construction and advanced refrigeration system, this unit offers maximum storage capacity in a compact footprint.
Key Features
-
Digital Controls:
- Solid-state controller with LED temperature display (°F/°C)
- High/low temperature and voltage alarms
-
Energy Efficient:
- Interior LED lighting
- R290 hydrocarbon refrigerant
- Automatic hot gas condensate evaporator
-
Door System:
- Full stainless steel locking door
- Field reversible (right hinge standard)
- Spring-assisted self-closing with stay-open feature
- Stepped door design protects recessed gasket
-
Shelving:
- Three adjustable epoxy-coated wire shelves
- Stainless steel shelf supports with 1" increments
-
Airflow:
- Unique ducted air distribution system for uniform cooling
-
Mobility:
- 4" polyolefin casters (two with brakes)
- Stackable up to two units high
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom
- Interior: All stainless steel with ducted airflow
- Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
- Hinges: 8-gauge stainless steel hinge plates with welded pins
- Handles: Full-length extruded aluminum flush mount
Mobility & Installation
- Dimensions: 27.5"W x 33.5"D x 79.5"H (with casters)
- Door Opening: 21.75"W x 59.25"H
- Depth with Door Open: 59.25"
-
Electrical:
- Voltage: 115V / 60Hz / 1Ph
- Amperage: 15.0 Amps
- Plug: NEMA 5-15P
- Cord Length: 10 ft
- Crated Weight: 345 lbs
- Crated Dimensions: 37.5"W x 31.5"D x 81"H
- Ambient Operating Range: 45°F to 100°F
-
Installation Notes:
- Minimum rear clearance: 3"
- GFCI breaker required if GFCI protection is needed
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®
-
Warranty:
- 7 Years Labor
- 7 Years Parts
- 7 Years Compressor
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- Additional epoxy-coated shelves
- Stainless steel shelves
- Tray/pan slides
- Foot pedal door opener
- 6" adjustable legs
- Condensate pan (HS-5462)
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-FS refrigerator exemplifies this legacy with its robust construction, energy-saving features, and intuitive controls. Designed to perform in the most demanding environments, Hoshizaki equipment is Beyond Strong.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
