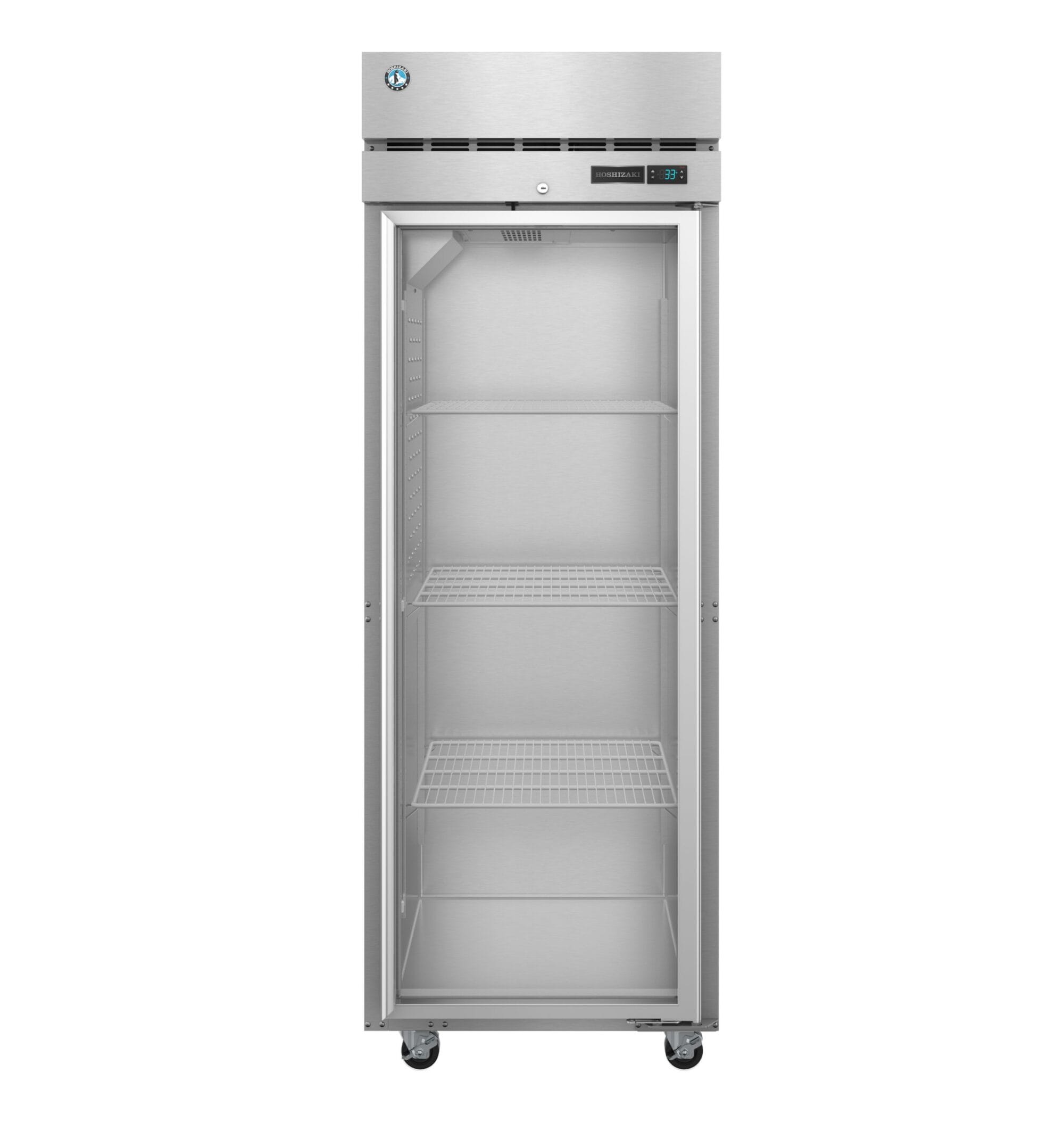

Hoshizaki R1A-FG 27.5" Upright Reach-In Refrigerator – Full Glass Door

Overview

The Hoshizaki R1A-FG is a premium upright reach-in refrigerator designed for commercial kitchens that demand performance, durability, and energy efficiency. Featuring a full glass door with LED illumination, this unit combines sleek aesthetics with robust functionality. Ideal for restaurants, cafes, and institutional foodservice operations, the R1A-FG offers maximum storage capacity in a compact footprint.

Key Features

• Full Glass Door:
  • Energy-efficient multi-pane, argon-filled glass
  • Integrated lock and chrome handle
  • Field reversible with stay-open and self-closing features
• Digital Controls:
  • Solid-state controller with LED temperature display (°F/°C)
  • High/low temperature and voltage alarms
• Interior LED Lighting:
  • Dual vertical light strips with independent switch
• Shelving:
  • Three adjustable epoxy-coated wire shelves
  • Stainless steel shelf supports with 1" increments
• Door Gasket:
  • Stepped door design protects recessed magnetic gasket
  • Snap-in gasket for easy cleaning

Construction & Durability

• Exterior: Stainless steel front, sides, and top; coated steel back and bottom
• Interior: All stainless steel with ducted air distribution system
• Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
• Door Hinges: All-metal with adjustable torsion spring closure
• Casters: 4" polyolefin casters (two with brakes)
• Stackable: Units can be stacked two-high for space efficiency

Mobility & Installation

• Dimensions: 27.5"W x 34.5"D x 79.5"H (with casters)
• Door Opening: 21.75"W x 59.25"H
• Depth with Door Open: 57"
• Electrical: 115V / 60Hz / 1Ph, 15.0 Amps, NEMA 5-15P plug
• Crated Weight: 350 lbs.
• Crated Dimensions: 37.5"W x 31.5"D x 81"H
• Installation Notes:
  • Minimum rear clearance: 3"
  • Ambient operating range: 45°F to 100°F
  • GFCI breaker required if GFCI protection is needed

Certifications & Warranty

• Certifications: NSF, UL, ENERGY STAR®
• Warranty:
  • 7 Years Labor
  • 7 Years Parts
  • 7 Years Compressor
• Valid in the U.S., Canada, Puerto Rico, and U.S. Territories

Optional Accessories

• Additional epoxy-coated shelves
• Stainless steel shelves
• Tray/pan slides
• 6" adjustable legs
• Condensate pan (HS-5462)

Why Choose Hoshizaki?

Hoshizaki is a trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The R1A-FG refrigerator exemplifies this legacy with its advanced features, durable construction, and energy-efficient performance. Whether you're displaying chilled goods or storing ingredients, Hoshizaki delivers equipment that goes Beyond Strong.
