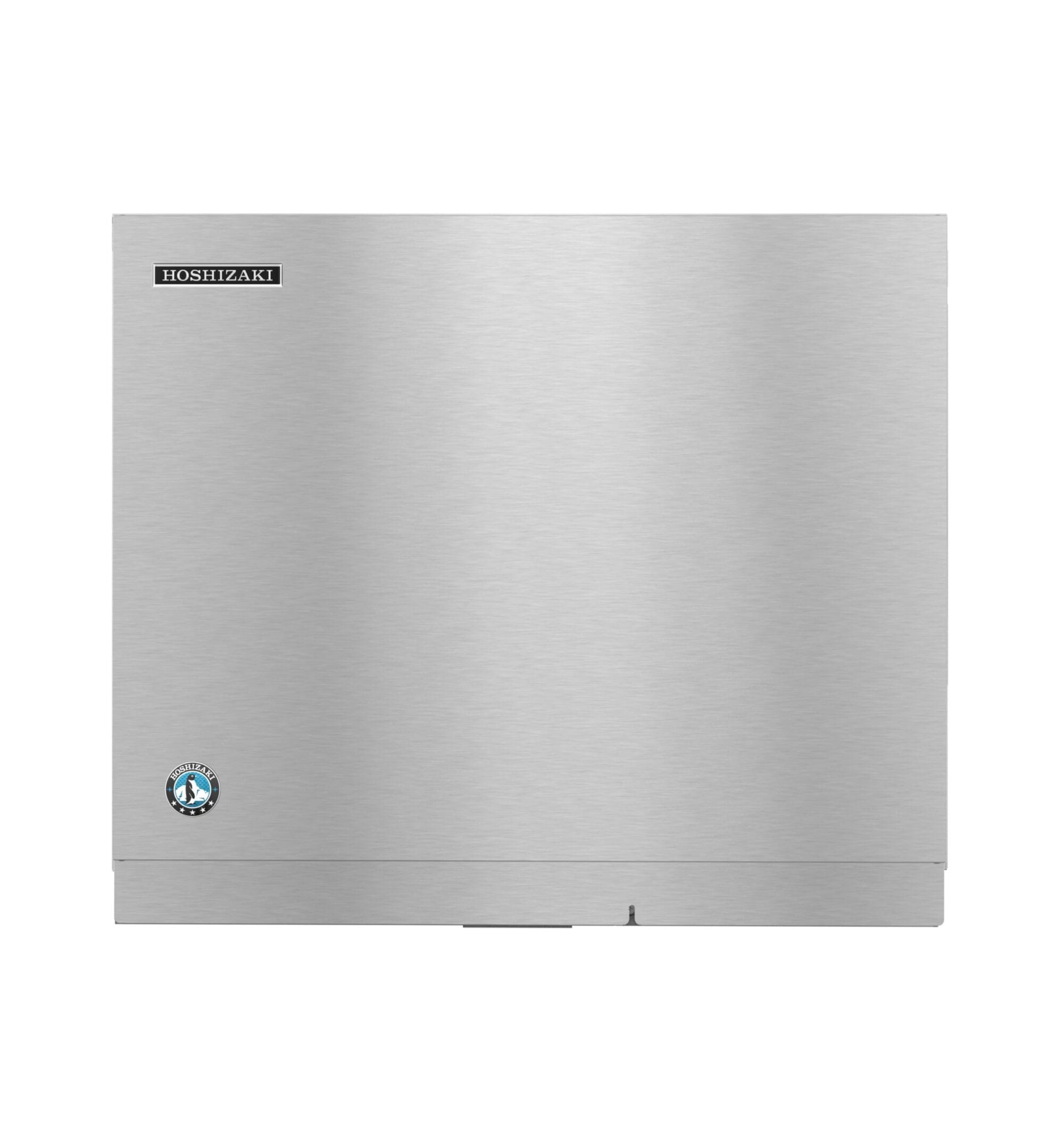

Hoshizaki KMD-705MRJZ Modular Crescent Ice Maker – Remote Air-Cooled
Overview
The Hoshizaki KMD-705MRJZ is a high-performance modular crescent cuber designed for demanding commercial environments. With remote air-cooled operation, this unit delivers up to 727 lbs. of ice per 24 hours, making it ideal for beverage dispensers, restaurants, and hospitality venues. Engineered for reliability and efficiency, it features advanced diagnostics, easy maintenance, and compatibility with a wide range of ice storage bins.
Key Features
- Remote air-cooled condenser for quiet, efficient operation
- Produces up to 727 lbs. of ice per 24 hours at 70°F air / 50°F water
- Individual crescent cube shape for optimal cooling and reduced splash
- Factory-installed ultrasonic bin control with adjustable settings
- CycleSaver™ design for energy-efficient ice production
- EverCheck™ alert system for proactive maintenance
- CleanAssist™ one-hour cleaning cycle
- Stainless steel double-sided evaporator for durability
- Snap-fit components for easy cleaning and servicing
- Uses R-404A refrigerant
Construction & Durability
- Heavy-duty stainless steel exterior
- Fewer moving parts for reduced maintenance and longer life
- Designed for high-volume commercial use
- Removable panels for easy access during service
- Built to operate in ambient temperatures from 45°F to 100°F
Mobility & Installation
- Compatible with bins including: B-500SF, BD-500SF, B-700SF, B-800SF, B-900SF, DB-200H, DM-200B
- Dimensions: 30" W x 24" D x 26" H
- Net weight: 670 lbs., shipping weight: 765 lbs.
- Electrical: 115V/60/1, 20A circuit
- Requires URC-9FZ remote condenser (sold separately)
- Brazed line sets available: HS-5604 (25'), HS-5605 (35'), HS-5606 (55')
- Requires 6" clearance on all sides for proper airflow
Certifications & Warranty
- Certifications: NSF, UL, ENERGY STAR®, Intertek
-
Warranty:
- 3 Years Parts & Labor on entire machine
- 5 Years Parts & Labor on Evaporator
- 5 Years Parts on Compressor and Remote Condenser Coil
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
- Visit hoshizakiamerica.com/support/warranty for details
Optional Accessories
- Top Kits: HS-2148 (DB Top Kit)
- Remote Monitoring System: HS-5562
- Water Filtration: HS-5283 EcO Ice Filter, H9320-51 Single Water Filter Kit
- Side-Breathing Kit: HS-5734
- Remote Condenser: URC-9FZ (required for operation)
- Brazed Line Sets: HS-5604 (25'), HS-5605 (35'), HS-5606 (55')
Why Choose Hoshizaki?
Hoshizaki is a global leader in ice-making technology, known for its commitment to quality, innovation, and sustainability. The KMD-705MRJZ exemplifies this legacy with robust construction, advanced features, and unmatched reliability. Whether you're outfitting a busy kitchen or beverage station, Hoshizaki delivers ice solutions that perform under pressure.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
