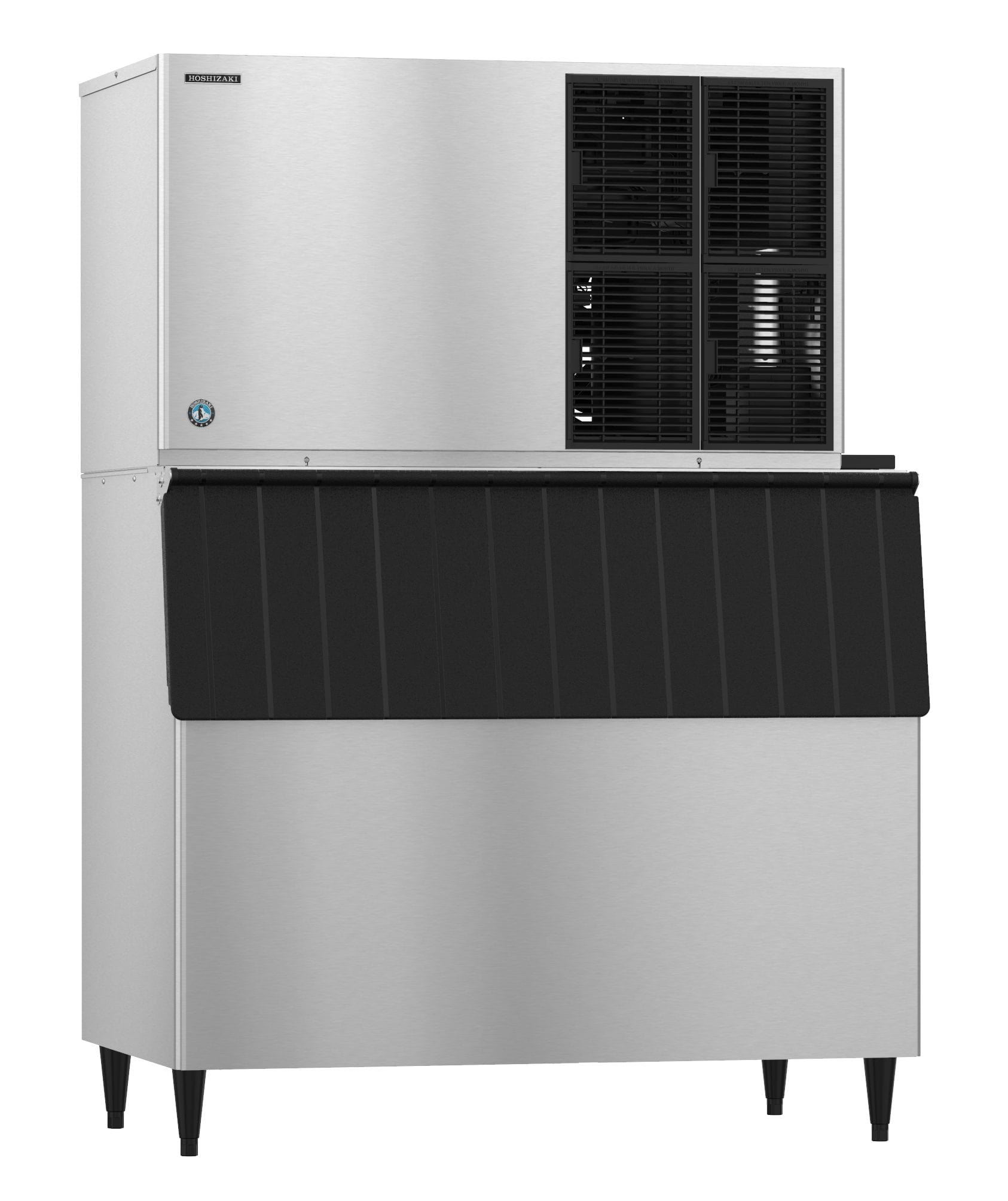

Hoshizaki KM-1301SAJ-E Modular Crescent Cuber – Air-Cooled, Up to 624 kg/day
Overview
The Hoshizaki KM-1301SAJ-E is a high-performance modular ice maker engineered for reliability and efficiency in demanding commercial environments. Producing up to 624 kg of crescent-shaped ice per day, this ENERGY STAR® qualified unit is ideal for hotels, restaurants, and large-scale foodservice operations. Its stackable design allows you to double production without increasing your footprint.
Key Features
- Ice Production: Up to 624 kg per 24 hours at 21°C air / 10°C water.
- Stackable Design: Combine two units for up to 1,248 kg/day in the same floor space.
- Crescent Cube Design: Hard, clear cubes that melt slowly and maximize storage.
- CycleSaver™ Technology: Reduces energy consumption and extends equipment life.
- EverCheck™ Alert System: Self-diagnostic system with audible alerts for easy troubleshooting.
- Removable Air Filters: Simplifies maintenance (air-cooled model only).
- Stainless Steel Evaporator: Corrosion-resistant for long-lasting performance.
- R-404A Refrigerant: Environmentally responsible and efficient.
Construction & Durability
- Heavy-Duty Stainless Steel Exterior: Built to withstand rigorous commercial use.
- Snap-Fit Components: Simplifies cleaning and maintenance.
- Fewer Moving Parts: Enhances reliability and reduces service costs.
Mobility & Installation
- Dimensions: 1219 mm W x 695 mm D x 695 mm H (48" W x 27-3/8" D x 27-3/8" H).
- Clearances: 150 mm (6") at rear, sides, and top for proper airflow and maintenance.
-
Operating Limits:
- Ambient: 7°C – 38°C
- Water: 7°C – 32°C
- Water Pressure: 69 – 779 kPa
-
Electrical:
- 220-240V / 50Hz / 1 Phase, 11.35A, 20A circuit
-
Plumbing:
- Icemaker Water Inlet: 1/2" NPT
- Drain: 3/4" NPT
- Installation: Compatible with Hoshizaki bins (B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS). Top kit may be required.
Certifications & Warranty
- Certifications: NSF, WaterMark, AQ, WMTS-105.
-
Warranty:
- Contact factory for details (standard coverage includes parts & labor on the entire machine and extended coverage on key components).
Optional Accessories
- Ice Storage Bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS.
- Water Filtration System: Recommended for optimal performance and ice quality.
- Top Kits: Required for certain bin configurations.
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making equipment, known for innovation, reliability, and energy efficiency. With features like CycleSaver™, EverCheck™, and H-GUARD Plus® antimicrobial protection, Hoshizaki ensures consistent ice production, reduced operating costs, and superior sanitation.
