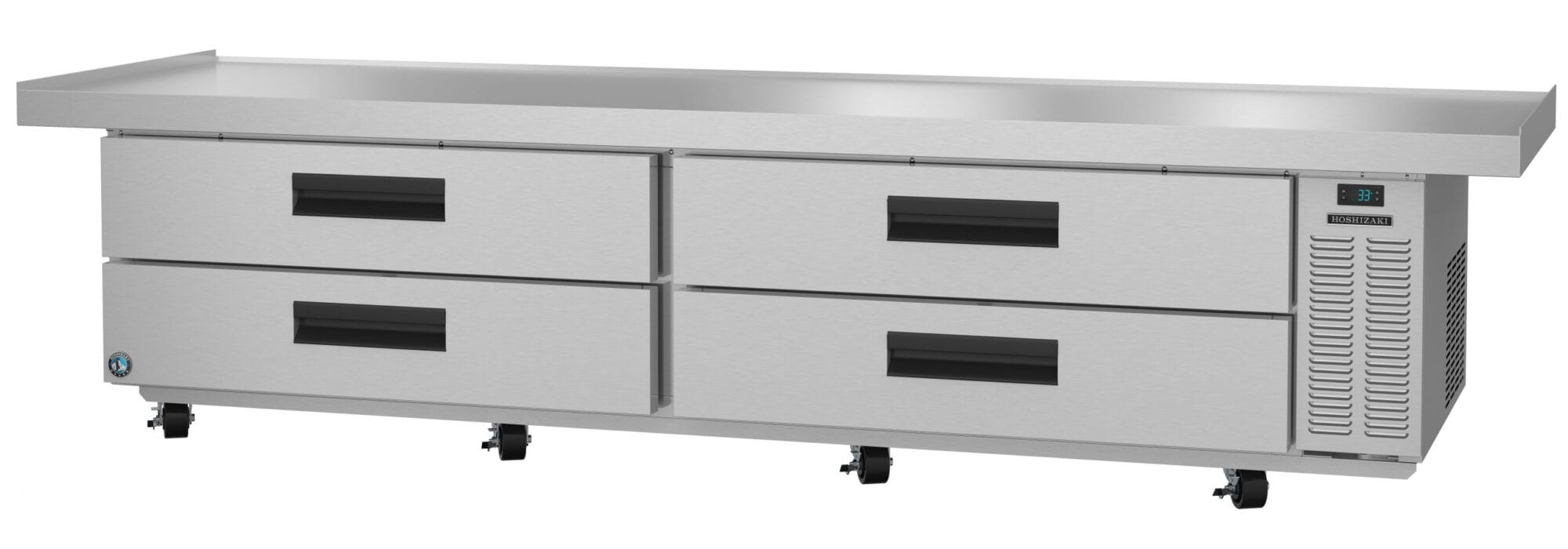

Hoshizaki CR110A Low-Profile Refrigerated Chef Base – 110" Wide, 4 Drawers
by Hoshizaki
$13,370.35
Overview
The Hoshizaki CR110A is a heavy-duty, low-profile refrigerated chef base designed to maximize kitchen efficiency. With a robust stainless steel construction, a 2000 lb. load capacity, and precise temperature control, this unit provides a reliable foundation for cooking equipment while keeping ingredients fresh and within reach.
Key Features
- Dimensions: 110.5” W x 32.25” D x 26” H (to work surface with 4” casters)
- Storage Capacity: 24.75 cu. ft. (22.2 cu. ft. AHAM)
- Drawers: 4 heavy-duty drawers, each accommodating (3) 12” x 20” x 6” pans (pans not included)
- Top Load Capacity: Supports up to 2000 lbs. of cooking equipment
- Temperature Range: 32°F to 52°F
- Refrigerant: Environmentally friendly R290 hydrocarbon
- Controller: Solid-state digital controller with LED display and temperature alarms
- Insulation: 2” CFC-free foamed-in-place polyurethane
- Electrical: 115V/60Hz/1 phase, NEMA 5-15P plug
- Energy Consumption: 3.69 kWh/day @ NSF
- Casters: (8) 4” heavy-duty casters, all with brakes
- Warranty: 7-year warranty on parts, labor, and compressor
Construction & Durability
- Top: 16-gauge stainless steel with marine edge and ceramic heat shield for high-heat protection
- Cabinet: Stainless steel front, sides, and top; stainless steel interior with coved corners for easy cleaning
- Drawers: Stainless steel inside and out, with heavy-duty welded frames and acetal rollers tested for 300,000 cycles
- Handles: Flush-mount extruded aluminum handles
- Gaskets: Snap-in magnetic drawer gaskets for easy removal and cleaning
Mobility & Installation
- Ships with 8 heavy-duty casters for easy positioning
- Front-breathing refrigeration system for zero-clearance installation on sides
- Requires 4” clearance between cooking equipment and top surface; temperature at top must not exceed 180°F
Certifications & Warranty
- NSF/ANSI Standard 7 certified for food storage
- ETL Listed for safety and sanitation
- 7-Year Warranty on parts, labor, and compressor (U.S., Canada, Puerto Rico)
Optional Accessories
- HS-4007 Drawer Divider Bars for organizing pans
- Adapter bars for 1/2, 1/3, and 1/6 size pans (sold separately)
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration, known for durability, energy efficiency, and innovative design. The CR110A chef base is engineered to withstand the toughest kitchen environments while delivering consistent performance and long-term reliability.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
