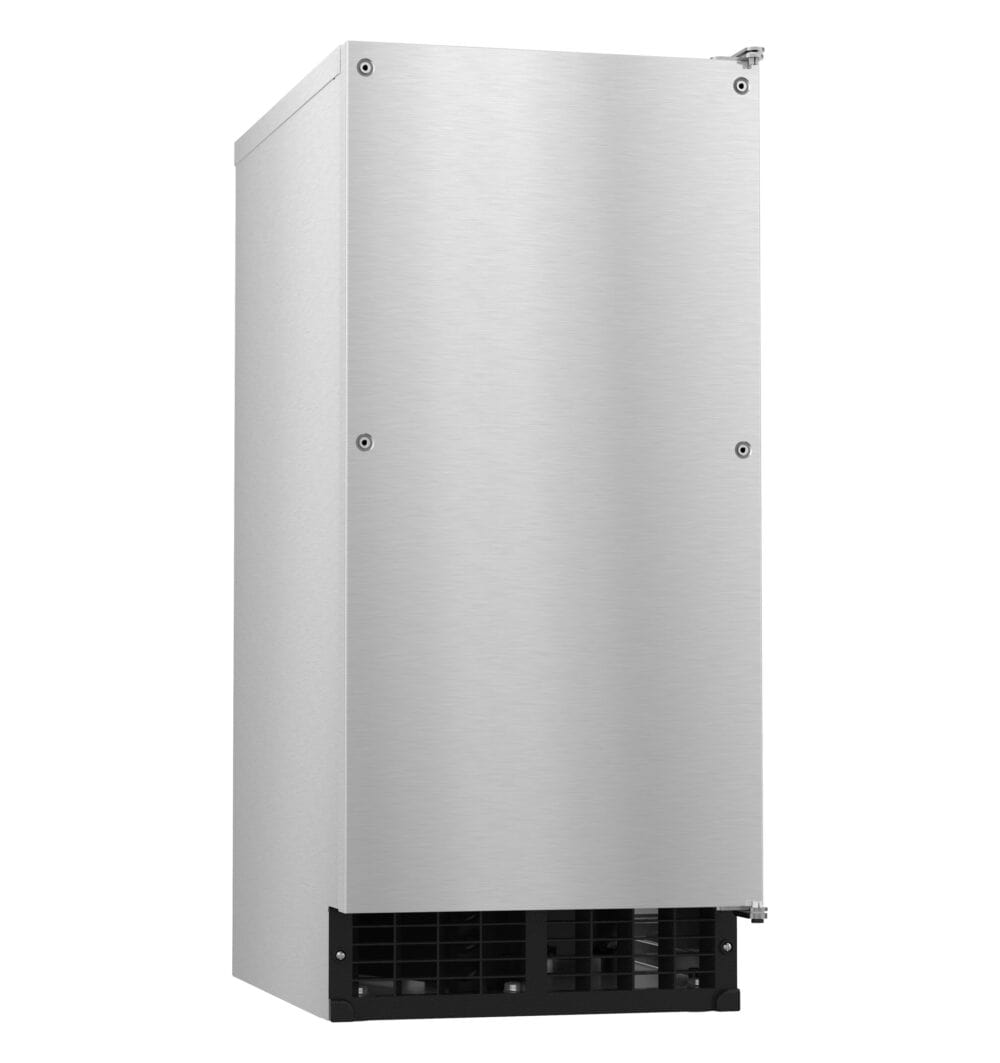

Hoshizaki AM-50BAK-ADDS Undercounter Ice Maker – ADA Compliant with Custom Cabinet Door System
Overview
The Hoshizaki AM-50BAK-ADDS is a compact, ADA-compliant undercounter ice maker designed for residential and commercial environments. With a sleek design and customizable cabinet door system, it blends seamlessly into any kitchen or bar setup. Producing up to 54 lbs of top-hat ice per day and storing up to 27 lbs, this unit is ideal for high-demand, space-conscious applications.
Key Features
- Up to 54 lbs of ice production per 24 hours
- 27 lbs of built-in storage capacity
- Top-hat cube shape (1" height × 7/8" diameter)
- Less than 32" tall – ADA compliant
- Custom cabinet door system for integrated design
- UL approved for outdoor use
- Front in/out airflow for flexible installation
- Environmentally friendly R290 refrigerant
- Power switch accessible without panel removal
- 6 ft. cord with NEMA 5-15 plug included
Construction & Durability
- Dimensions: 14 7/8″ W × 22 5/8″ D × 31 1/2″ H (not including handle)
- Shipping Dimensions: 20 3/4″ W × 30 1/2″ D × 38″ H
- Net Weight: 103 lbs | Shipping Weight: 112 lbs
- Cabinet Finish: Stainless steel
- Refrigerant Charge: R-290, 2.3 oz
- Voltage: 115V/60Hz/1 Phase | Amperage: 2.0A
Mobility & Installation
- Undercounter design with ADA-compliant height
- Custom overlay panel ready (cabinet maker required)
- Front-breathing system allows built-in or freestanding installation
- Water Supply Line: 1/4″ copper tubing or equivalent
- Drain Line: 1/2″ nominal ID hard pipe or equivalent
- Optional drain pump available for flexible plumbing
Certifications & Warranty
- UL Certified for outdoor use
- NSF Certified
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
- Valid in the U.S., Canada, Puerto Rico, and U.S. Territories
Optional Accessories
- HS-5061 – Drain Pump Assembly
- HS-0182 – Side Trim Kit
- H9320-51 – Water Filter System
- HS-10229 – Hinge Kit for door reversal
- Custom Cabinet Overlay Panel – ADA-compliant dimensions: 27 9/16″ H × 14 13/16″ W × 5/8″–3/4″ thick
Why Choose Hoshizaki?
Hoshizaki is a trusted name in ice-making innovation, known for reliability, energy efficiency, and exceptional craftsmanship. The AM-50BAK-ADDS offers quiet operation, sleek aesthetics, and dependable performance in a compact footprint. Whether for hospitality, healthcare, or home use, Hoshizaki delivers ice that’s Beyond Strong.
