Hoshizaki Hoshizaki AM-50BAJ Undercounter Ice Maker with Built-In Bin – Air-Cooled, Top Hat Cube

Hoshizaki AM-50BAJ Undercounter Ice Maker with Built-In Bin – Air-Cooled, Top Hat Cube

by Hoshizaki
SKU AM-50BAJ
$3,000.00 - $3,000.00
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
Availability:
In stock
Ships out in ~ 7-10 Business Days
5-Star Multi-Channel Support
Questions? Talk to an Expert.
854-220-0367 Message Us
Secure Checkout SSL Encrypted & Safe
Simple Returns View Return Policy Authorized Dealer Why Buy From Us
Highlights

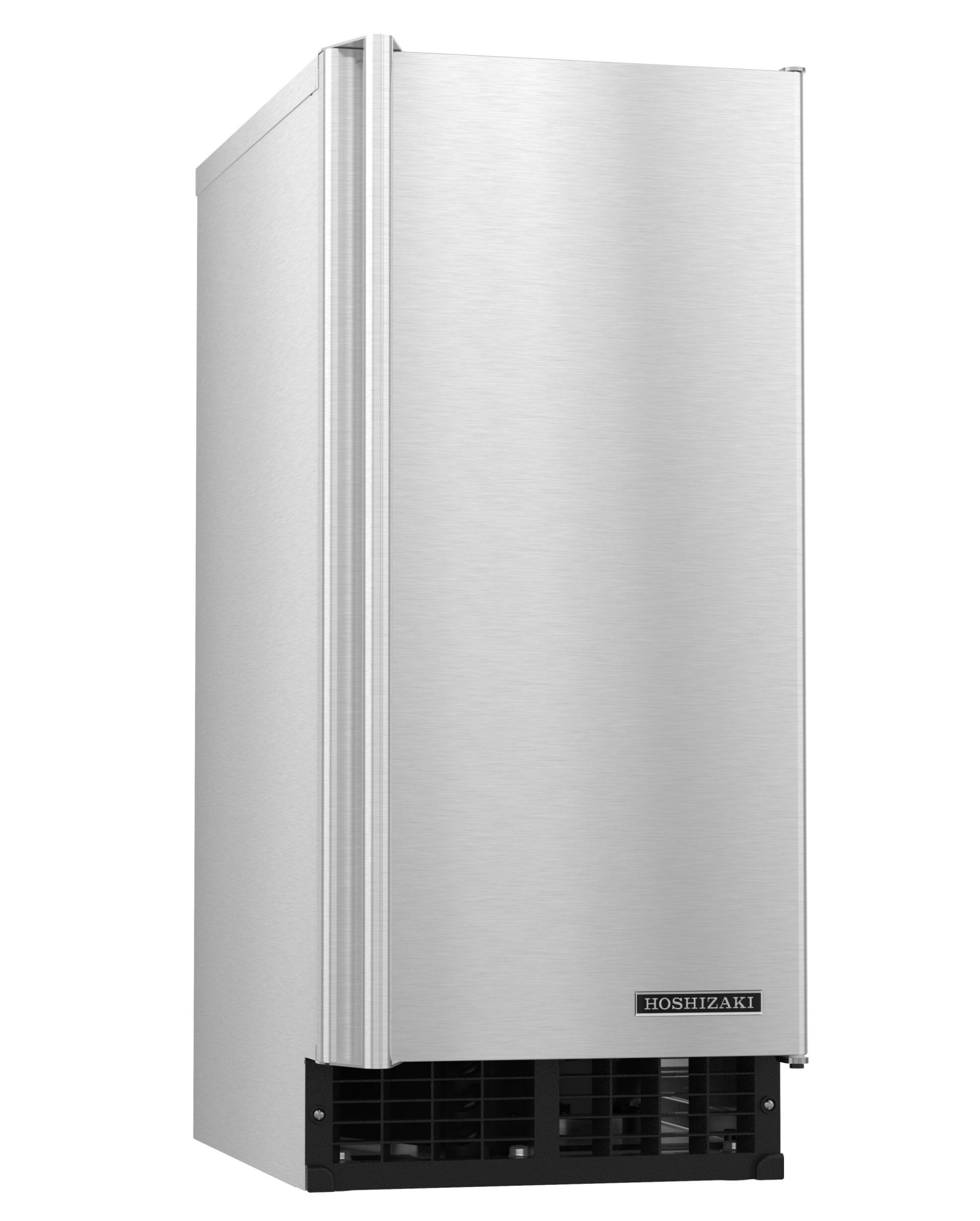

Hoshizaki AM-50BAJ Undercounter Ice Maker

Overview

This compact, high-performance undercounter ice maker is designed for both residential and commercial use. With a sleek stainless steel exterior and front-breathing design, it produces up to 55 lbs. of crystal-clear top hat ice cubes per day and stores up to 22 lbs. in its built-in bin. Ideal for bars, kitchens, hospitality suites, and outdoor applications, it combines efficiency, durability, and style in a space-saving footprint.

Key Features
  • Ice Production: Up to 55 lbs. of top hat ice per 24 hours
  • Storage Capacity: 22 lbs. built-in bin
  • Cube Type: Individual, hard, clear top hat-shaped cubes (1" H × 7/8" D)
  • Compact Design: 14-7/8" W × 22-5/8" D × 33-1/2" H
  • Front Airflow: No side clearance required
  • Outdoor Rated: UL approved for outdoor use
  • Power Switch: Accessible without removing the panel
  • Plug-and-Play: Includes 6 ft. cord with NEMA 5-15 plug
  • Eco-Friendly Refrigerant: R-134a
  • Fewer Moving Parts: Increased reliability and longer lifespan
  • Easily Disassembled Water Circuit: Simplified cleaning and maintenance
  • Magnet Catch Door System: Secure closure
  • Factory-Tested: For ambient temperatures from 45°F to 100°F
  • Made in Georgia, USA
Compatibility & Accessories
  • HS-5061 Drain Pump Assembly
  • HS-0229 Door Reversal Kit
  • H9320-51 Water Filter
  • Side Trim Kit
  • Overlay Panel Kit (for DS models)
Specifications
Model AM-50BAJ
Ice Production Up to 55 lbs. / 24 hours
Storage Capacity 22 lbs.
Cube Type Top hat (1" H × 7/8" D)
Dimensions (W × D × H) 14-7/8" × 22-5/8" × 33-1/2"
Min. Front Clearance 15"
Voltage 115V / 60Hz / 1 Phase
Amperage 3.8A
Plug Type NEMA 5-15 (6 ft. cord included)
Refrigerant R-134a
Water Supply Line 1/4" nominal ID copper or equivalent
Drain Line 1/2" nominal ID hard pipe or equivalent
Net Weight 88 lbs.
Ship Weight 113 lbs.
Ambient Temp. Range 45°F – 100°F
Certifications UL Listed (Indoor & Outdoor) · NSF Certified · Energy Star Partner
Warranty

This product is covered by a 2-year parts & labor warranty on the entire machine, and a 1-year parts & labor warranty on the optional drain pump (HS-5061). See the full warranty statement for complete terms and conditions: Warranty Statement (PDF)

Documents PDF Spec Sheet PDF Instruction Manual PDF Service Manual PDF Warranty Statement PDF Product Brochure
