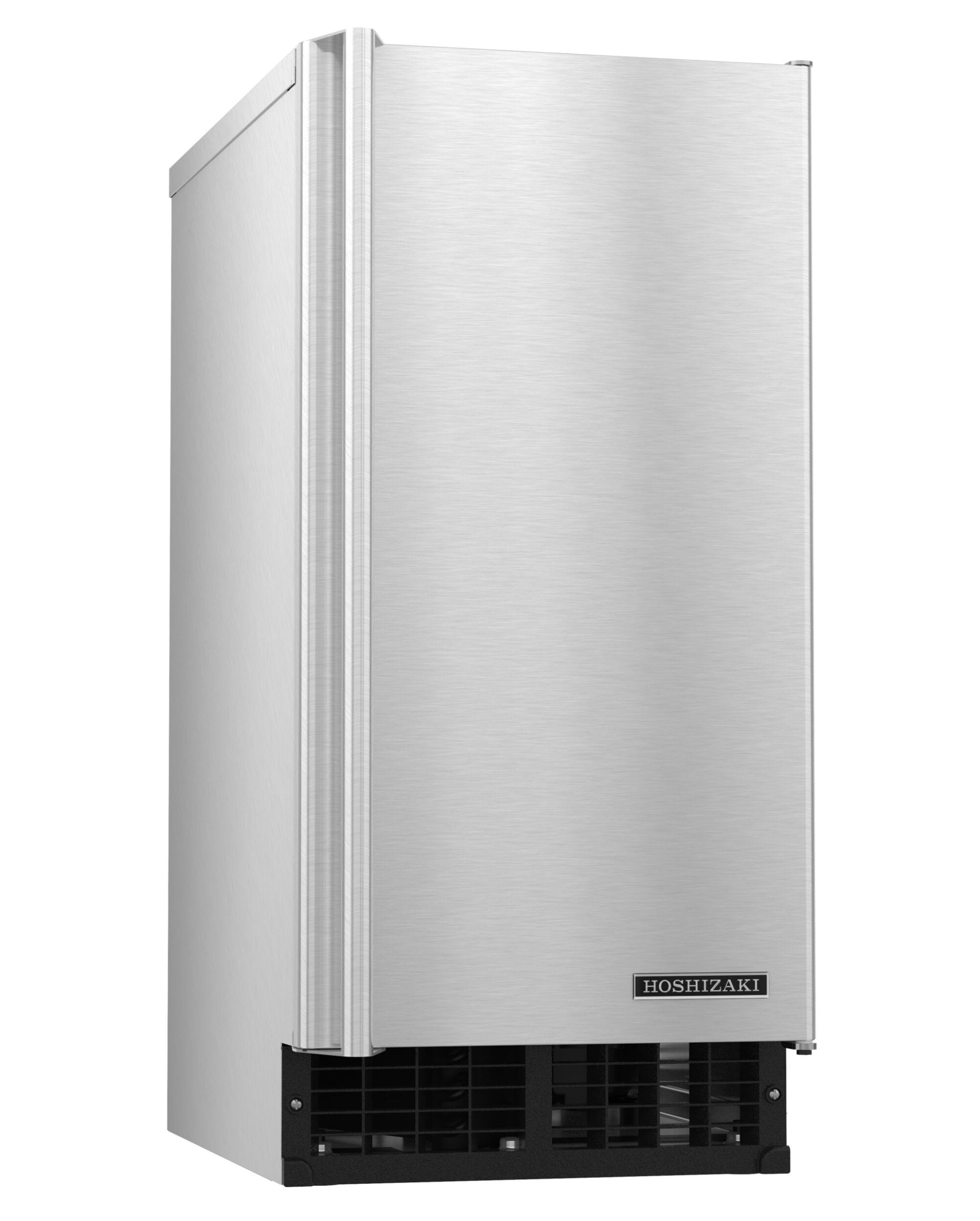

Hoshizaki AM-50BAJ-AD Undercounter Ice Maker – ADA Compliant, Air-Cooled, Built-In Bin
Overview
The Hoshizaki AM-50BAJ-AD is a compact, ADA-compliant, self-contained ice maker designed for residential and commercial use. With a sleek undercounter profile and front-breathing design, it produces up to 55 lbs. of top-hat shaped ice daily and stores up to 22 lbs. in its built-in bin. Ideal for kitchens, bars, hospitality suites, and outdoor applications, this unit combines performance, accessibility, and style.
Key Features
- Ice Production: Up to 55 lbs. per 24 hours
- Storage Capacity: 22 lbs. built-in bin
- Top-Hat Cube Shape: Individual, hard, clear, slow-melting cubes
- ADA Compliant: Less than 32" tall for accessible installation
- Compact Footprint: 14-7/8" W x 22-5/8" D x 31-1/2" H
- Front Airflow: No side clearance required
- Outdoor Rated: UL approved for outdoor use
- Power Switch: Accessible without panel removal
- Plug-and-Play: Includes 6 ft. cord with NEMA 5-15 plug
- Eco-Friendly Refrigerant: R-134a
Construction & Durability
- Fewer moving parts for increased reliability and longer lifespan
- Easily disassembled water circuit for simplified cleaning and maintenance
- Stainless steel and corrosion-resistant components
- Magnet catch door system for secure closure
- Factory-tested for ambient temperatures from 45°F to 100°F
Mobility & Installation
- Undercounter design fits flush with cabinetry
- No side or top clearance required
- Minimum front clearance: 15"
-
Plumbing Requirements:
- Water Supply Line: 1/4" nominal ID copper or equivalent
- Drain Line: 1/2" nominal ID hard pipe or equivalent
-
Electrical Requirements:
- Voltage: 115V/60Hz/1 Phase
- Amperage: 3.8A
- Plug Type: NEMA 5-15
- Weight: Net 88 lbs. / Ship 112 lbs.
Certifications & Warranty
- UL Listed
- NSF Certified
- Energy Star Partner
- Made in Georgia, USA
-
Warranty:
- 2-Year Parts & Labor on entire machine
- 1-Year Parts & Labor on optional drain pump (HS-5061)
Optional Accessories
- HS-5061 Drain Pump Assembly
- HS-0229 Door Reversal Kit
- H9320-51 Water Filter
- Side Trim Kit
- Overlay Panel Kit (for DS/ADDS models)
Why Choose Hoshizaki?
Hoshizaki is a global leader in ice-making and refrigeration equipment, known for its precision engineering, energy efficiency, and exceptional reliability. The AM-50BAJ-AD is a testament to Hoshizaki’s commitment to quality, offering a compact, ADA-compliant solution that doesn’t compromise on performance or durability.
Documentation
Spec Sheet
Instruction Manual
Service Manual
Warranty Statement
Product Brochure
