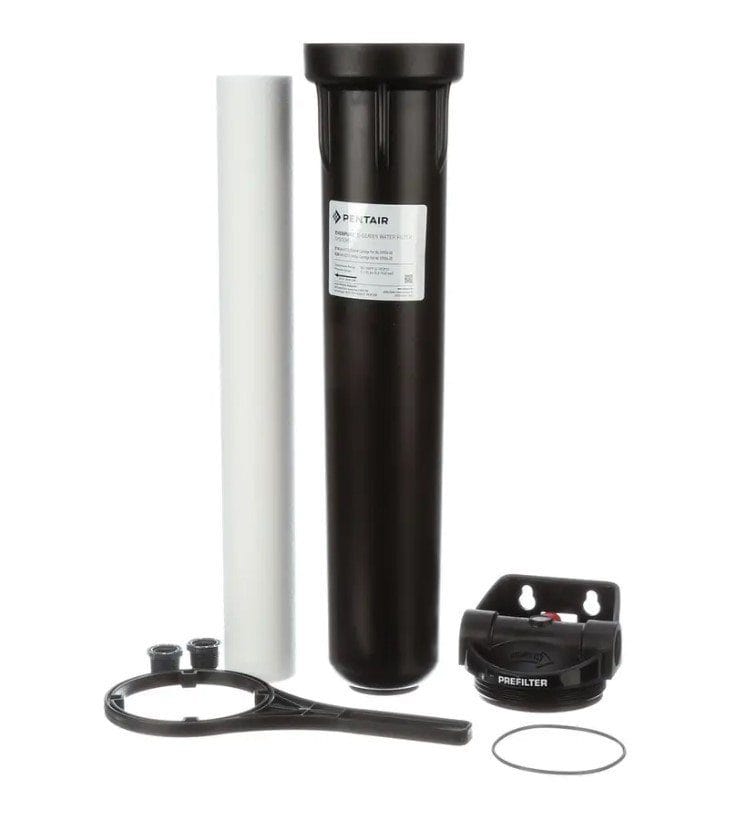

Hoshizaki 9795-90 E-20 Prefilter Cartridge

Overview

The Hoshizaki 9795-90 E-20 Prefilter is engineered to extend the life and optimize the performance of Hoshizaki 4HC-H water filters in twin and triple filter configurations. With a 20-inch body and 10-micron nominal rating, this prefilter effectively traps sediment and particulate matter, reducing scale buildup and protecting ice machines from clogging. Ideal for high-volume operations or areas with challenging water conditions.

Key Features

• Model: 9795-90 E-20 Prefilter
• Micron Rating: 10-micron nominal filtration
• Recommended Use: For twin and triple filter systems (H9320-52 and H9320-53)
• Performance Benefits:
  • Traps sediment and dirt
  • Reduces scale buildup
  • Protects delicate ice machine components
  • Extends life of Hoshizaki 4HC-H filters

Construction & Durability

• Robust 20" cartridge design for high-capacity filtration
• NSF/ANSI Standard 42 rated when used with H9320 systems
• Operating Conditions:
  • Pressure: 10–125 psi
  • Temperature: 35–100°F
  • Flow Rate: Up to 6 GPM (with H9320-53)

Mobility & Installation

• Tool-free installation into compatible housings
• Compact and lightweight for convenient handling
• Compatible Systems:
  • H9320-52 (Twin)
  • H9320-53 (Triple)
• Plumbing Connections:
  • Inlet: 3/4" MNPT
  • Outlet: 3/4" FNPT

Certifications & Warranty

• NSF Certified (Standard 42 – Aesthetic Effects)
• Certified for:
  • Chlorine taste and odor reduction
  • Mechanical filtration (Class 1 particulate)
• Warranty:
  • 1-Year on replaceable elements
  • 1-Year on the entire system (materials & workmanship)

Optional Accessories

• H9320-52 Twin Filter System
• H9320-53 Triple Filter System
• E-10 Prefilter (9795-80) for single configurations
• Replacement Packs:
  • 6 Pack (9534-26)
  • 20 Pack (9534-20)

Why Choose Hoshizaki?

Hoshizaki is a global leader in commercial refrigeration and ice-making solutions. Their filtration systems are built to protect your investment, reduce maintenance, and ensure the highest quality ice. The 9795-90 E-20 Prefilter is a cost-effective way to maintain peak performance and extend the life of your Hoshizaki water filtration system—trusted by professionals worldwide.
