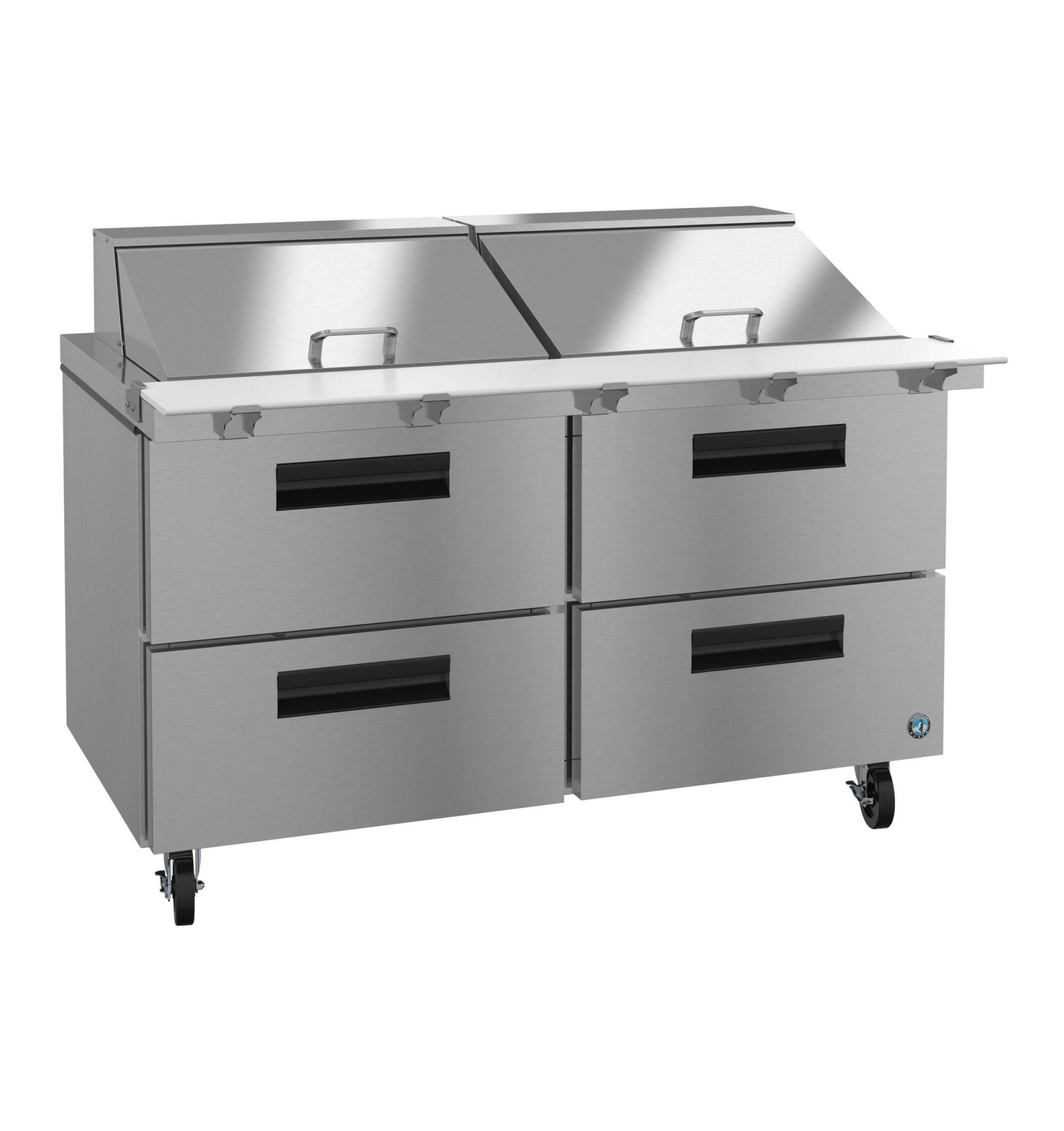

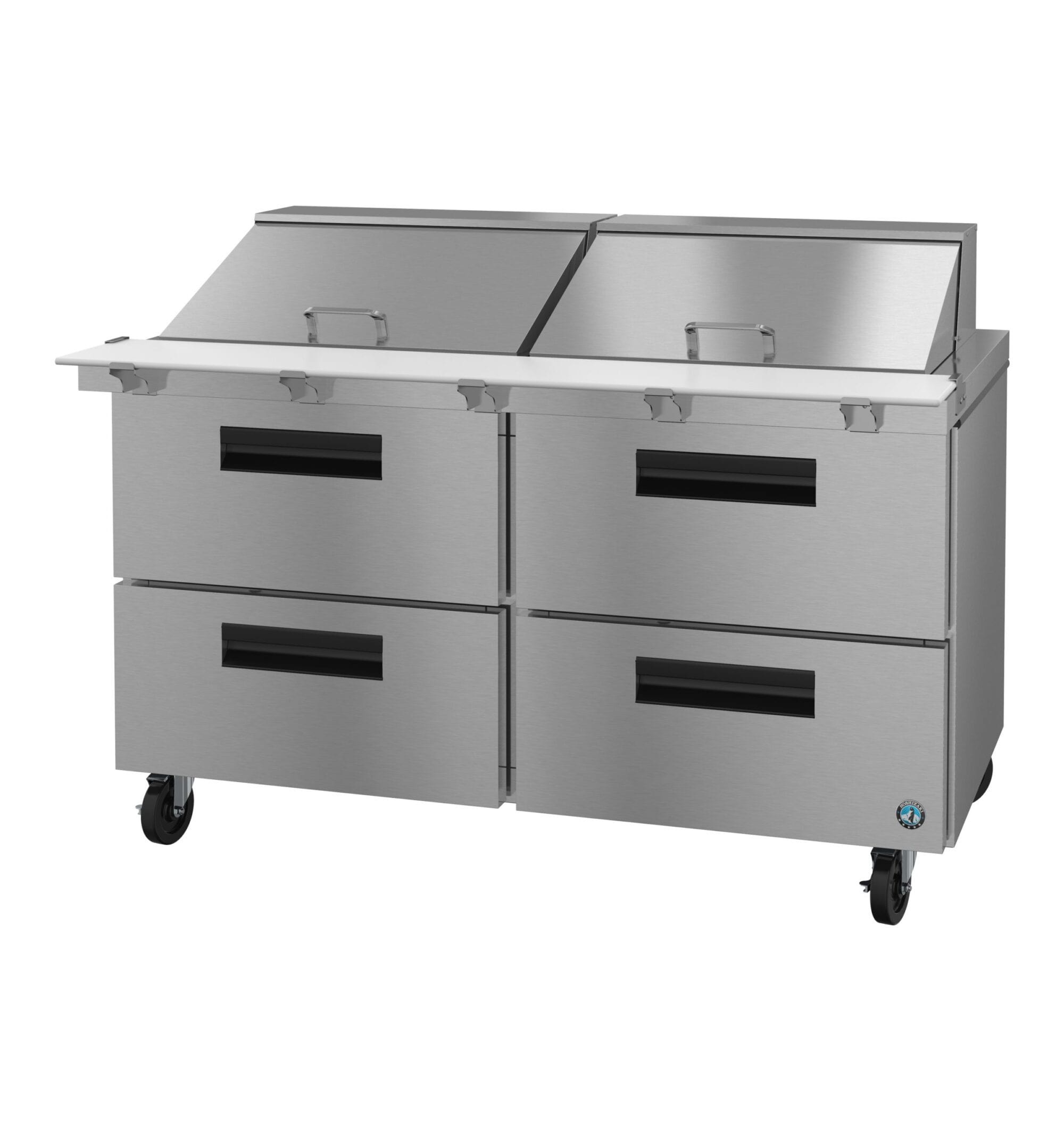

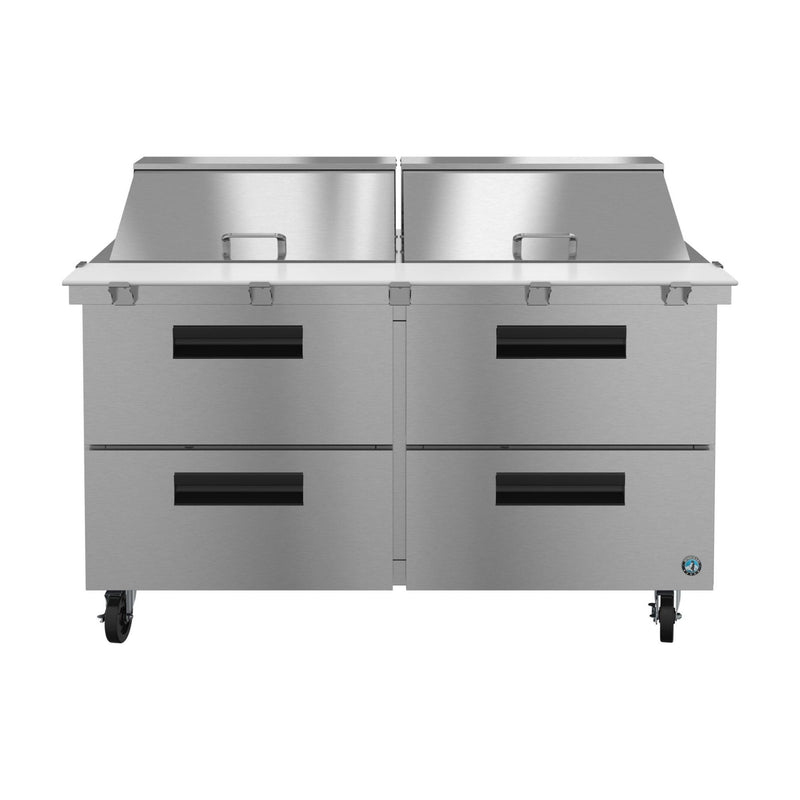

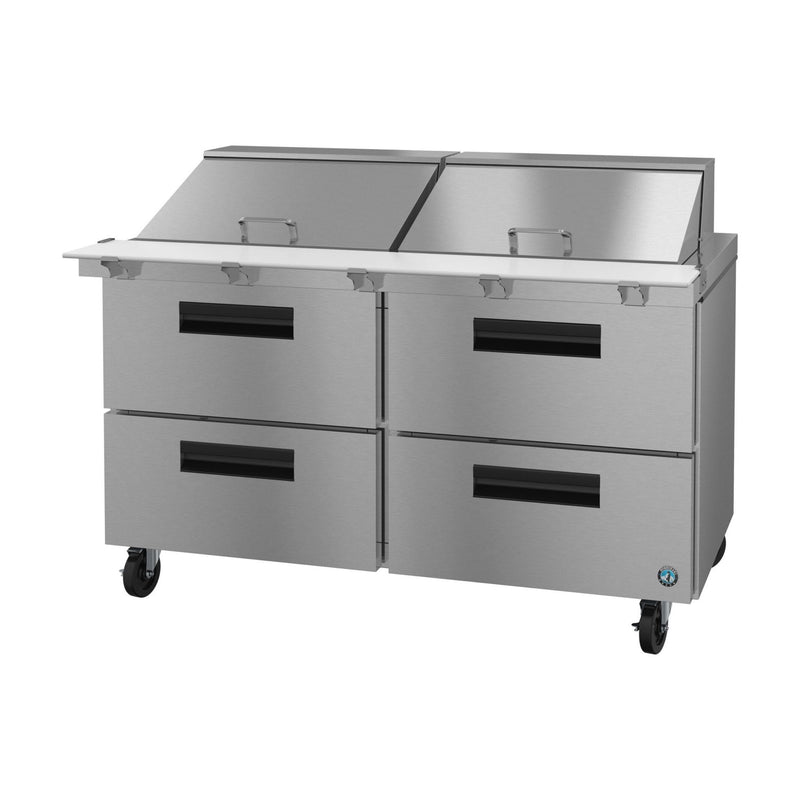

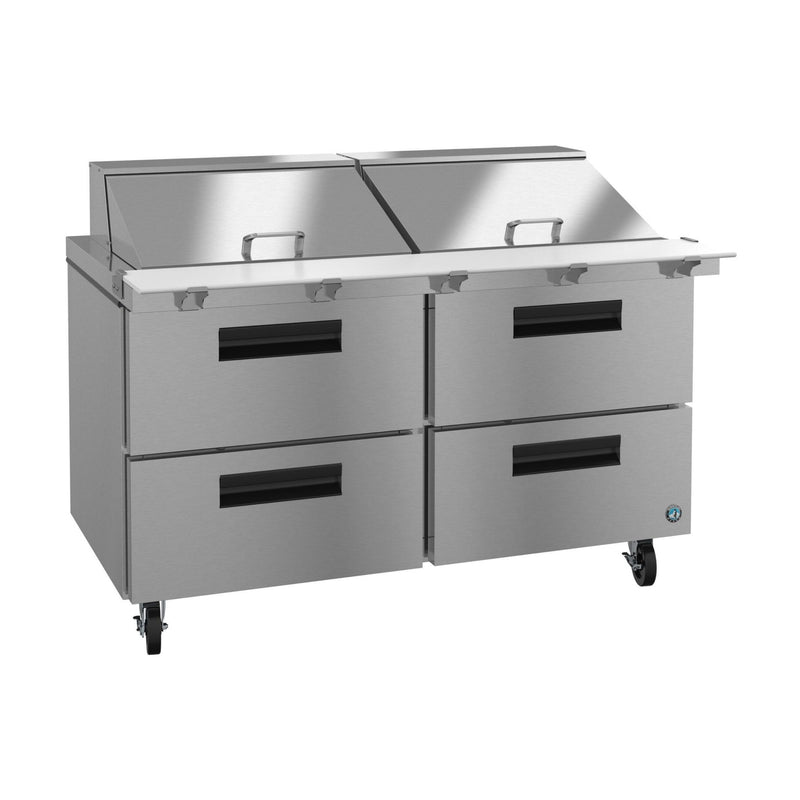

Hoshizaki SR60B-24MD4 Mega Top Prep Refrigerator – 60" Two-Section, 24 Pan Capacity, Four Drawers
Overview
The Hoshizaki SR60B-24MD4 is a high-performance, energy-efficient mega top prep refrigerator designed for demanding commercial kitchens. With a spacious 60" cabinet and four heavy-duty drawers, this unit provides optimal storage and prep space for sandwich, salad, and pizza stations. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures consistent cooling and food safety.
Key Features
- Mega Top Configuration: Includes 24 NSF-approved 1/6-size pans (4" deep) with stainless steel adapter bars; supports 6" deep pans for increased capacity.
- Cutting Board: Full-length 60" x 10" x ½" thick white polyethylene cutting board included.
-
Drawer Capacity:
- Each top drawer: (1) full-size 12" x 20" pan + (2) ¼-size pans (4" deep)
- Each bottom drawer: (1) full-size pan (6" deep)
- Air Distribution System: Innovative system ensures even cooling across all pans.
- Self-Closing Drawers: Spring-assisted with stay-open feature past 90°.
- Field-Reversible Drawer Locations: Easily reconfigure drawer layout to suit your workflow.
- Temperature Control: Adjustable dial with default setting at 34°F (1°C).
- Energy Efficient: Uses R290 refrigerant and consumes only 4.05 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Drawers: Heavy-duty 16-gauge stainless steel construction with acetal rollers and ball bearings; life-tested for 300,000 cycles.
- Gaskets: Magnetic drawer gaskets are removable for easy cleaning.
- Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
- Dimensions: 60" W x 34" D x 44.25" H (with casters)
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: Operates efficiently from 45°F to 100°F
- Shipping Weight: Approx. 457 lbs.
- Crated Dimensions: 62.5" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.5 oz)
- Energy Consumption: 4.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-up covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5268)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
Why Choose Hoshizaki?
Hoshizaki is a globally trusted brand in commercial refrigeration, known for its commitment to durability, innovation, and sustainability. The SR60B-24MD4 is built to perform in high-volume environments, offering flexible storage, ergonomic design, and advanced cooling technology. With a robust warranty and NSF-certified performance, it's a reliable solution for any foodservice operation.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
