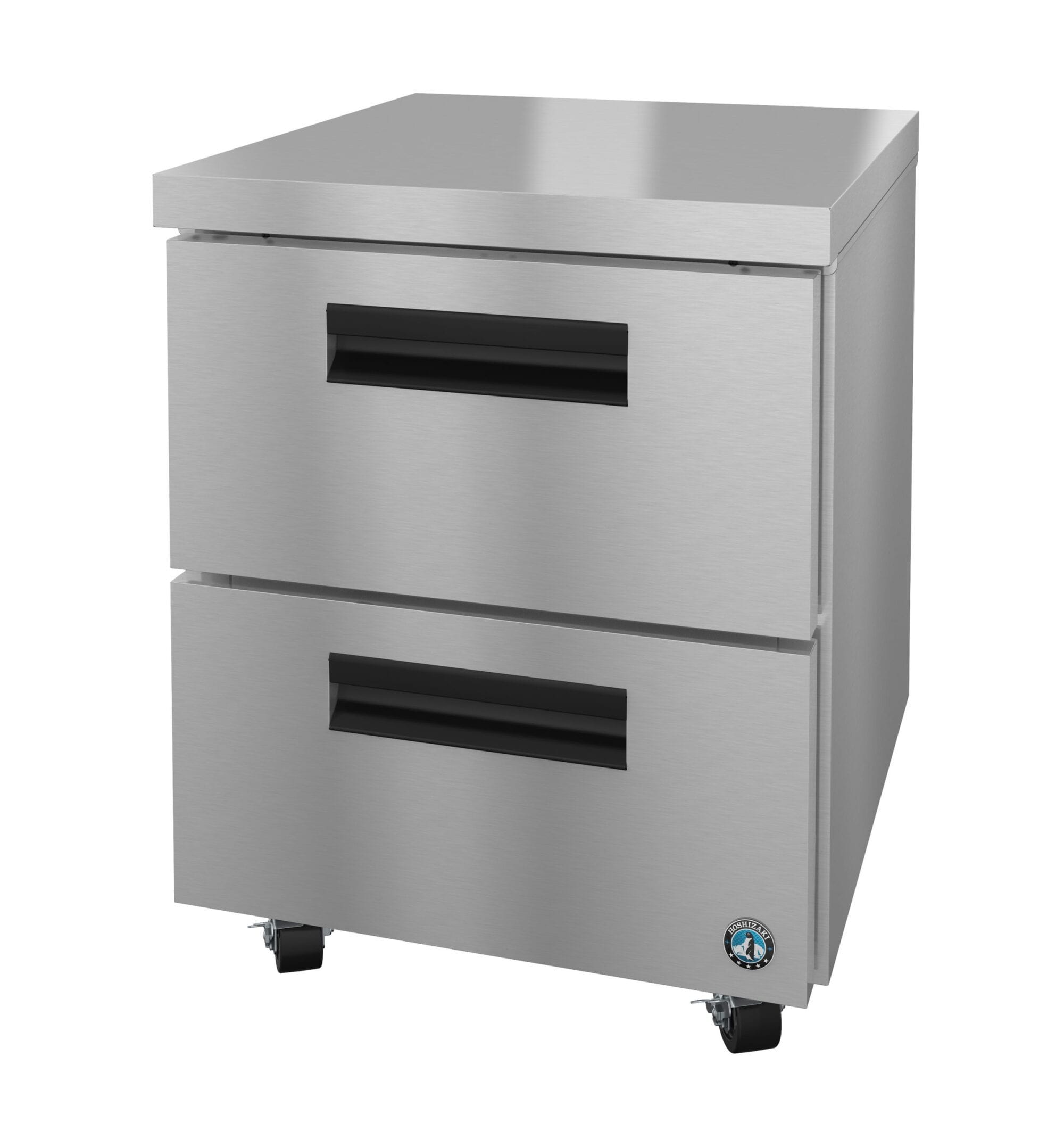

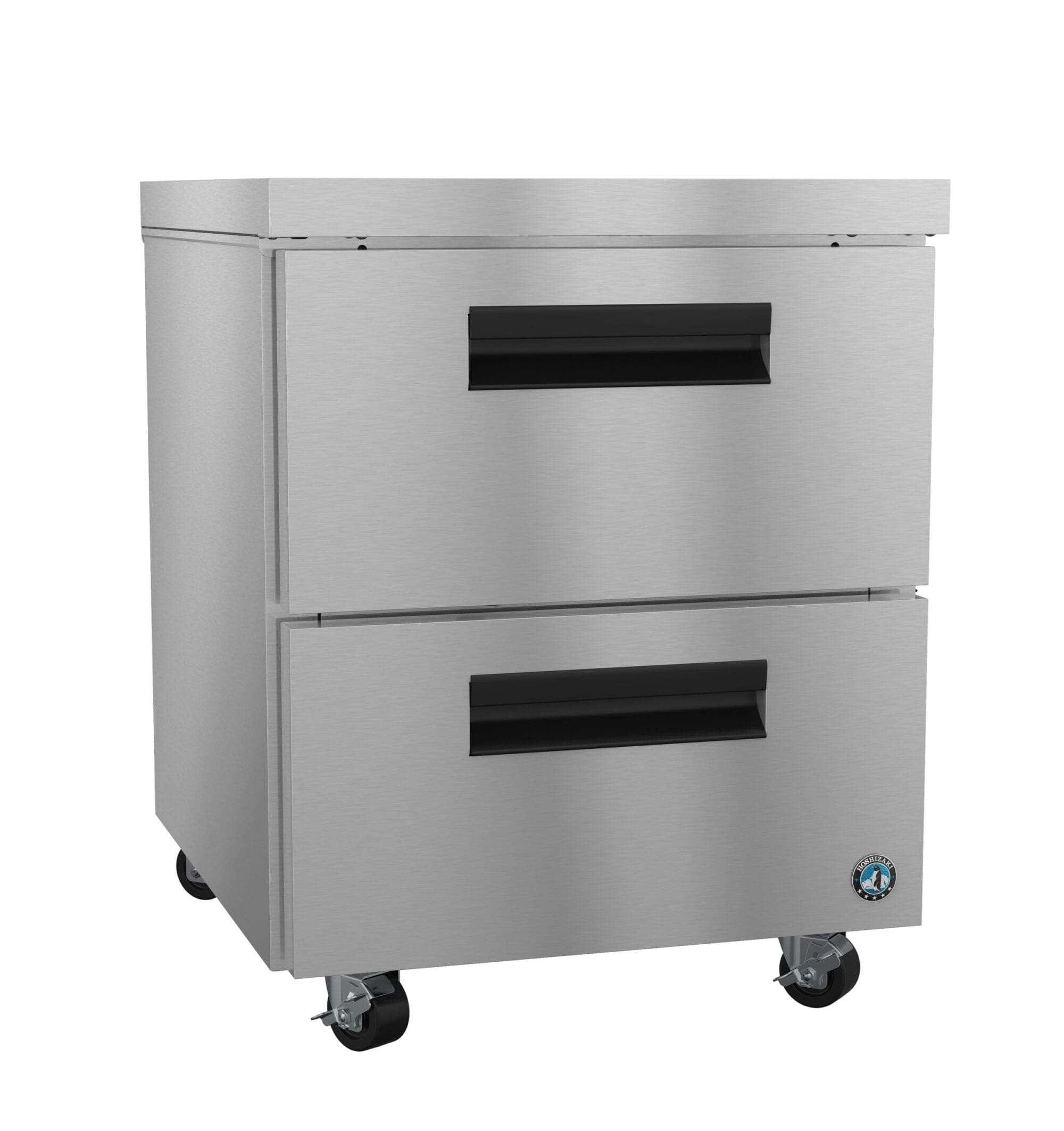

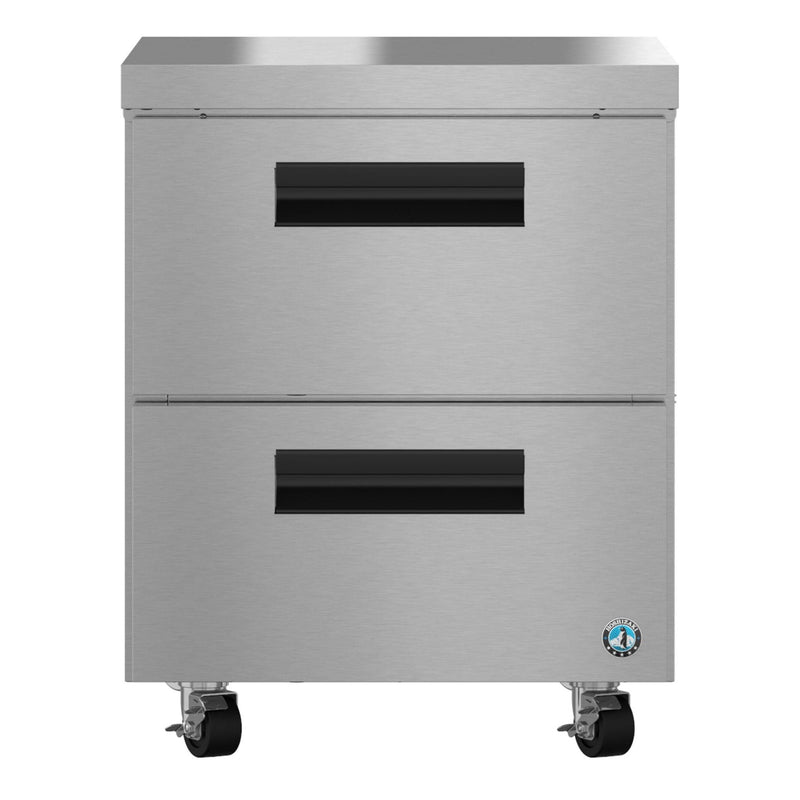

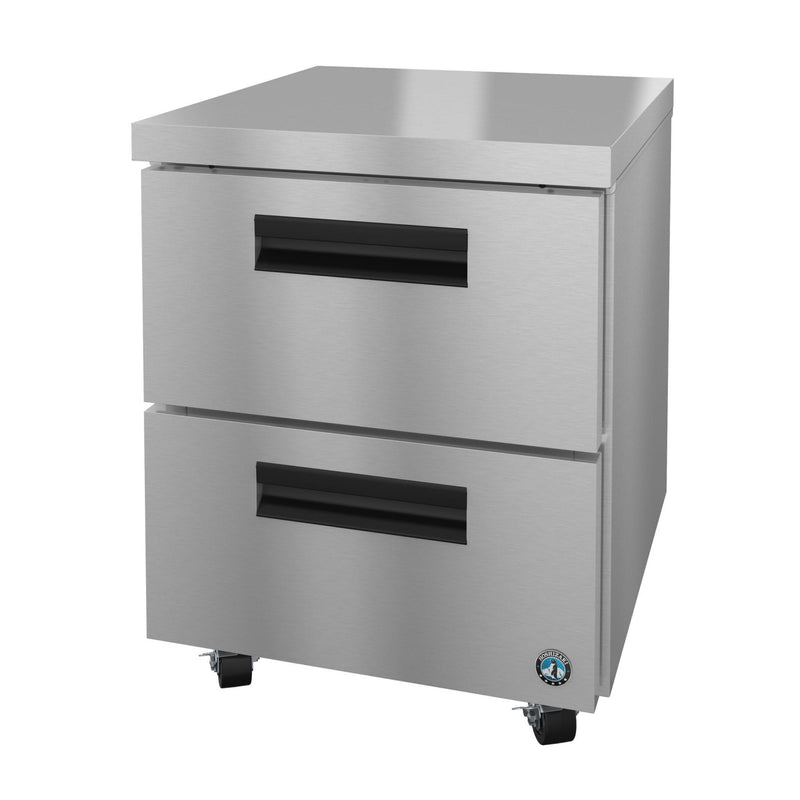

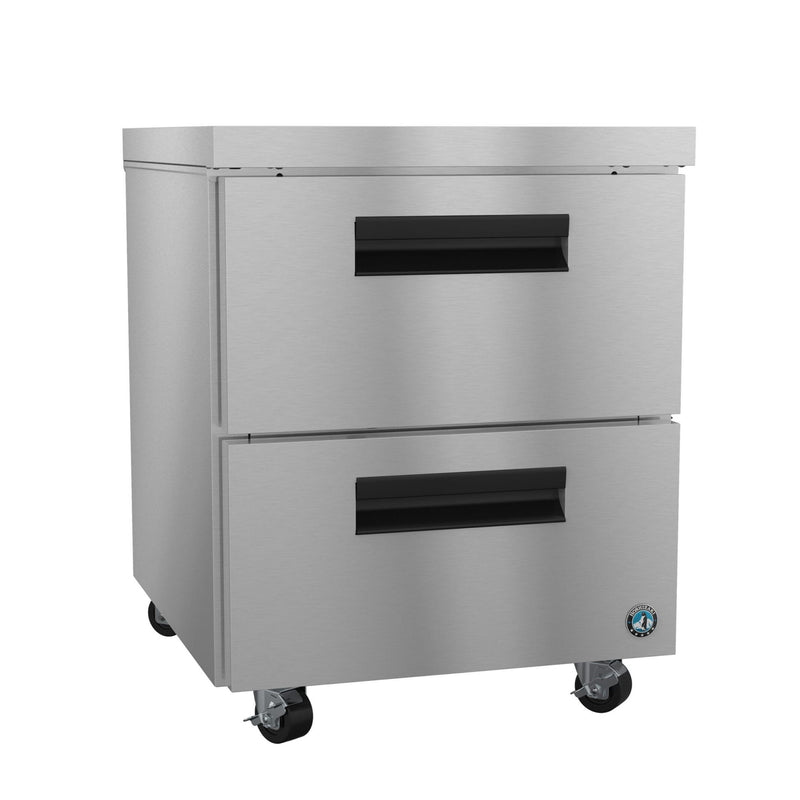

Hoshizaki UR27B-D2 Undercounter Refrigerator with Drawers – 27” Stainless Steel
Overview
The Hoshizaki UR27B-D2 is a compact, high-performance undercounter refrigerator designed for commercial kitchens and foodservice environments. Featuring two heavy-duty drawers, this unit offers efficient cold storage in a space-saving footprint. Built to maintain NSF-7 temperatures in ambient conditions up to 100°F, it’s ideal for demanding operations requiring durability, flexibility, and energy efficiency.
Key Features
- NSF-7 Compliant: Maintains safe food temperatures in up to 100°F ambient.
- Energy Efficient: Uses eco-friendly R290 hydrocarbon refrigerant.
- Heavy-Duty Drawers: 250 lb. dynamic load rating, life-tested for 300,000 cycles.
- Flexible Storage: Top drawer fits (1) full-size pan + (2) ¼ pans; bottom drawer fits (1) full-size pan.
- Durable Construction: 14-gauge stainless steel drawer frames and slides.
- Easy Cleaning: Snap-in magnetic drawer gaskets are removable.
- User-Friendly: Flush mount aluminum handles, front-breathing design.
Construction & Durability
- Exterior: Stainless steel front, sides, and top; coated steel back and bottom.
- Interior: Stainless steel sides, back, floor, and top.
- Insulation: 2” CFC-free foamed-in-place polyurethane.
- Drawer Slides: Acetal rollers to prevent metal-on-metal wear.
- Casters: 4” polyolefin stem casters (two with brakes); ADA-compliant 2.25” casters optional.
Mobility & Installation
- Dimensions: 27” W x 30” D x 33.75” H (with 4” casters)
- Depth with Drawers Open: 52”
- Crated Weight: 203 lbs.
-
Electrical:
- Voltage: 115V / 60Hz / 1Ph
- Plug: NEMA 5-15P
- Amperage: 2.5A
- Energy Consumption: 0.65 kWh/day
- Compressor: 1/6 HP, 798 BTU/hr
-
Installation Notes:
- Requires 1.5" overhead clearance for ventilation
- GFCI breaker must be used if GFCI protection is required
Certifications & Warranty
- Certifications: NSF-7, UL, ENERGY STAR®
- Warranty: 7-Year warranty covering labor, parts, and compressor (valid in U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- Casters: 2.25” (ADA compliant), 6” stem casters
- Drawer Divider Bars
- Overshelves
- Stainless Steel Back Panel
Why Choose Hoshizaki?
Hoshizaki is a trusted name in commercial refrigeration, known for engineering excellence and long-lasting performance. The UR27B-D2 exemplifies this legacy with its robust construction, energy efficiency, and thoughtful design tailored for high-demand environments. Whether you're outfitting a restaurant, café, or institutional kitchen, Hoshizaki delivers reliability and innovation you can count on.
