Overview
The Hoshizaki SR72B-30MD2 is a high-performance mega top prep refrigerator designed for demanding commercial kitchens. With a spacious 72" width, 30 pan capacity, and drawer configuration, this unit offers superior food prep efficiency and storage flexibility. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures consistent cooling and food safety.
Key Features
- Mega Top Configuration: Includes 30 NSF-approved 1/6-size pans (4" deep) and stainless steel adapter bars. Supports 6" deep pans for increased volume.
- Cutting Board: 72" x 10" x ½" thick white polyethylene cutting board included.
- Air Distribution System: Innovative airflow design ensures even cooling across all pans.
-
Drawer Configuration:
- Top drawer accommodates (1) ½ size + (1) 1/3 size pan (6" deep), plus (1) ¼ size + (1) 1/6 size pan (4" deep).
- Alternate top drawer layout supports (1) full-size pan (front-to-back) + (3) 1/9 size pans.
- Bottom drawer supports 6" deep pans.
- Drawer Slides: Heavy-duty 16-gauge stainless steel with acetal rollers and stainless steel ball bearings. Rated for 175 lbs. and tested for 300,000 cycles.
- Temperature Control: Adjustable dial with default setting at 34°F (1°C).
- Energy Efficient: Uses R290 refrigerant and consumes only 5.05 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Shelving: Three heavy-duty epoxy-coated shelves (one per section), adjustable in ½" increments.
- Doors & Drawers: High-grade stainless steel with ABS liners, magnetic gaskets, and flush mount aluminum handles.
- Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
- Dimensions: 72" W x 34" D x 44.25" H (with casters)
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: Operates efficiently from 45°F to 100°F
- Shipping Weight: Approx. 475 lbs.
- Crated Dimensions: 73.75" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.6 oz)
- Energy Consumption: 5.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-off covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
- Foot pedals (left: HS-5555, right: HS-5556)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR72B-30MD2 is built to perform in high-volume environments, offering flexible storage, ergonomic design, and advanced cooling technology. With a robust warranty and NSF-certified performance, it’s a reliable solution for any foodservice operation.
Would you like this exported as a CSV, JSON, or HTML file for Shopify import?
Sources Sources This response has no direct citations, the sources below were considered
More
Provide your feedback on BizChat
Copilot said:
CopilotHere is the Shopify-formatted product description for the Hoshizaki SR72B-30MD4 Mega Top Prep Refrigerator with Drawers, based on the spec sheet, instruction manual, and product brochure:
Product Title

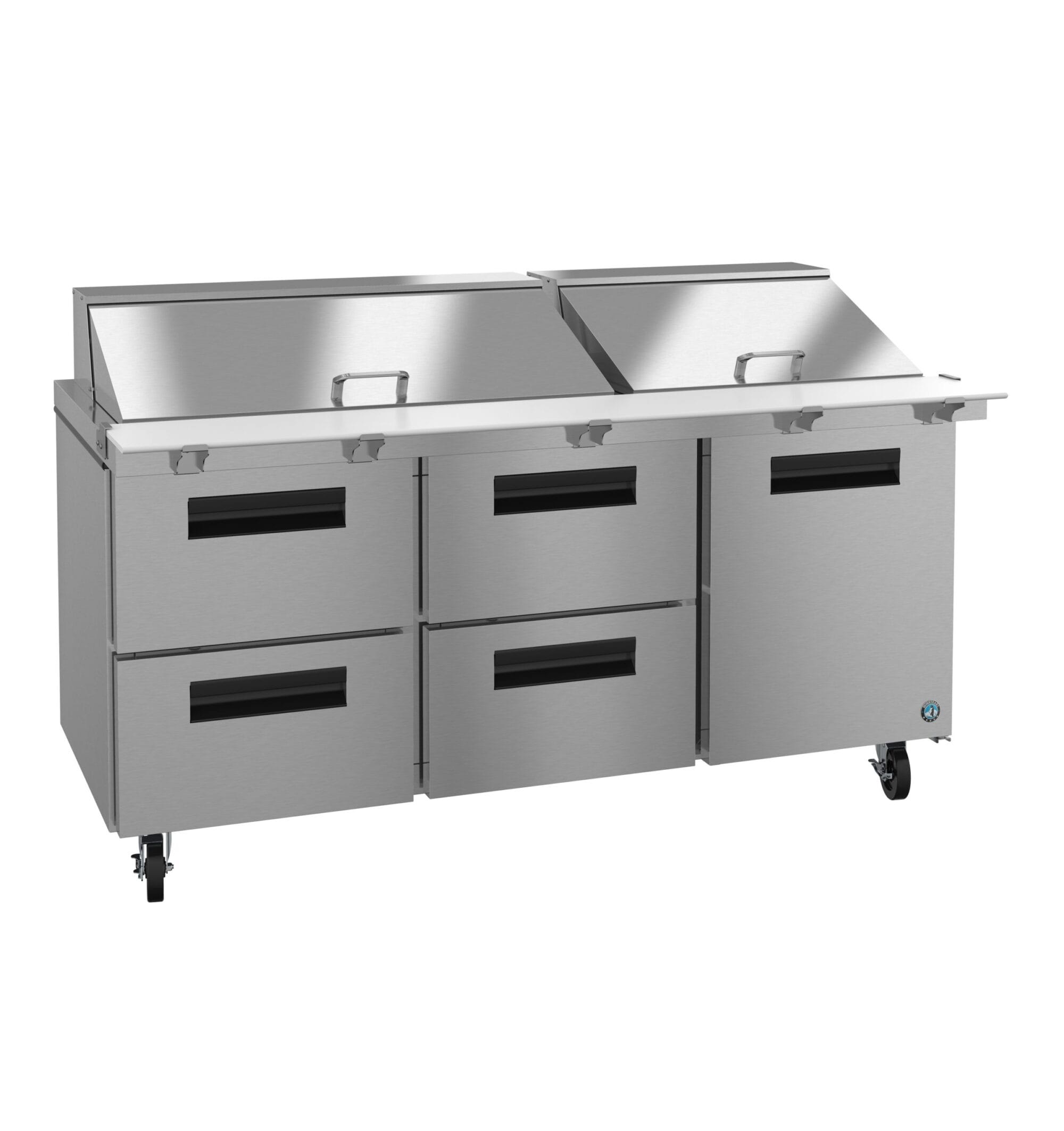

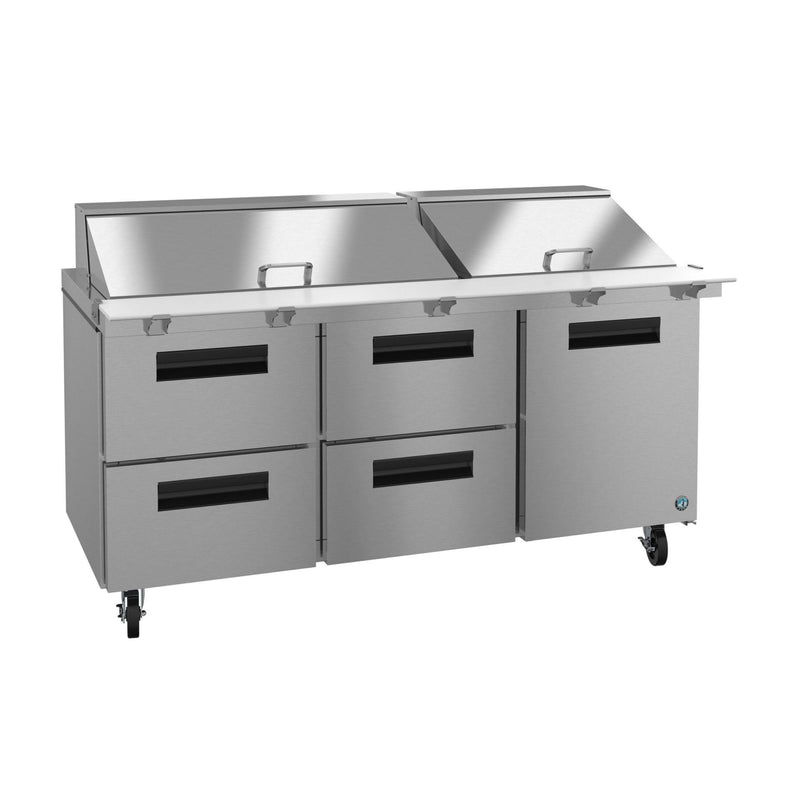

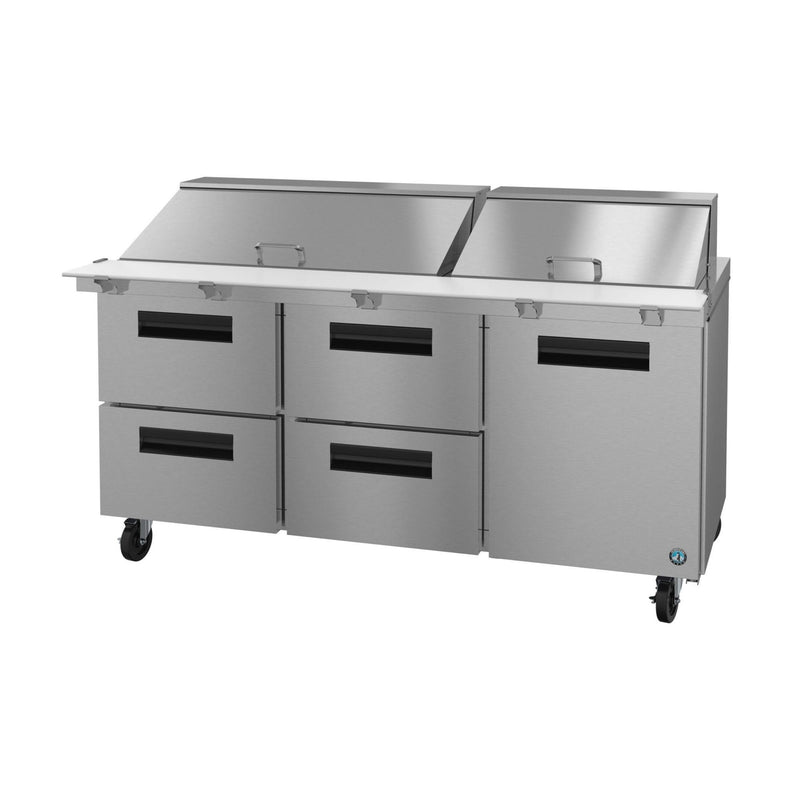

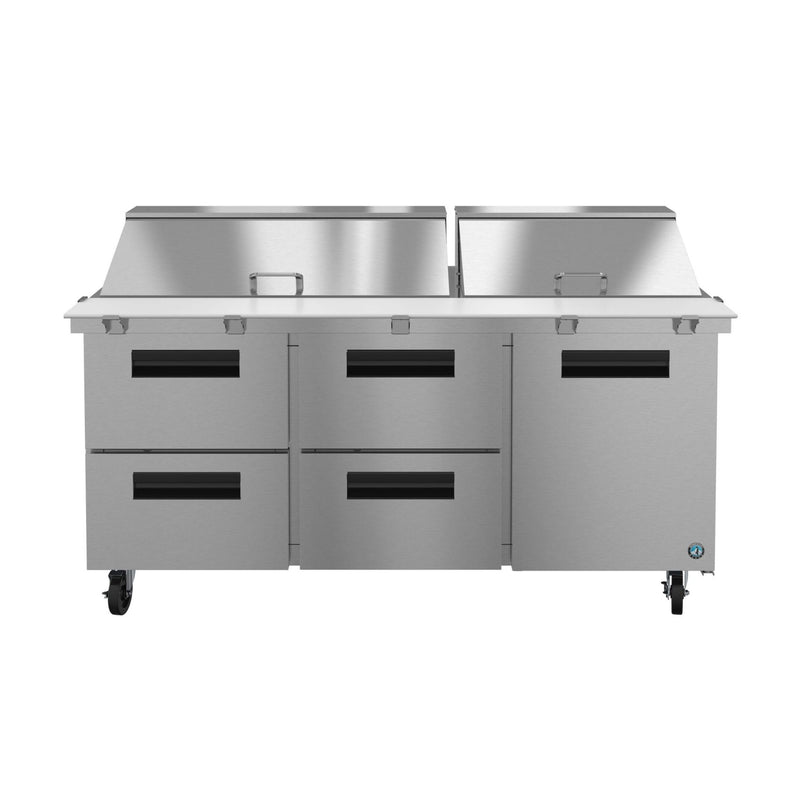

Hoshizaki SR72B-30MD4 Mega Top Prep Refrigerator – 72" Three-Section, 30 Pan Capacity, All-Drawer Configuration
Overview
The Hoshizaki SR72B-30MD4 is a high-capacity, all-drawer mega top prep refrigerator designed for commercial kitchens that demand efficiency, durability, and food safety. With a 72" width and 30 pan capacity, this unit offers unmatched prep space and refrigerated storage. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures consistent performance even in the busiest environments.
Key Features
- Mega Top Configuration: Includes 30 NSF-approved 1/6-size pans (4" deep) and stainless steel adapter bars. Supports 6" deep pans for increased volume.
- Cutting Board: 72" x 10" x ½" thick white polyethylene cutting board included.
- Air Distribution System: Innovative airflow design ensures even cooling across all pans.
-
All-Drawer Configuration:
- Each drawer accommodates (1) ½ size + (1) 1/3 size pan (6" deep), plus (1) ¼ size + (1) 1/6 size pan (4" deep).
- Alternate top drawer layout supports (1) full-size pan (front-to-back) + (3) 1/9 size pans.
- All drawers support 6" deep pans.
- Drawer Slides: Heavy-duty 16-gauge stainless steel with acetal rollers and stainless steel ball bearings. Rated for 175 lbs. and tested for 300,000 cycles.
- Temperature Control: Adjustable dial with default setting at 34°F (1°C).
- Energy Efficient: Uses R290 refrigerant and consumes only 5.05 kWh/day.
Construction & Durability
- Exterior: Stainless steel front, sides, and top.
- Interior: Stainless steel sides, back, and floor with ABS ceiling.
- Insulation: 2" CFC-free foamed-in-place polyurethane.
- Shelving: Three heavy-duty epoxy-coated shelves (one per section), adjustable in ½" increments.
- Doors & Drawers: High-grade stainless steel with ABS liners, magnetic gaskets, and flush mount aluminum handles.
- Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
- Dimensions: 72" W x 34" D x 44.25" H (with casters)
- Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
- Cord Length: 10 ft.
- Ambient Range: Operates efficiently from 45°F to 100°F
- Shipping Weight: Approx. 510 lbs.
- Crated Dimensions: 73.75" x 36" x 46.5"
Certifications & Warranty
- Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
- Refrigerant: R290 Hydrocarbon (2.6 oz)
- Energy Consumption: 5.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-off covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
- Foot pedals (left: HS-5555, right: HS-5556)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR72B-30MD4 is built to perform in high-volume environments, offering flexible storage, ergonomic design, and advanced cooling technology. With a robust warranty and NSF-certified performance, it’s a reliable solution for any foodservice operation.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
