Product Details
Overview

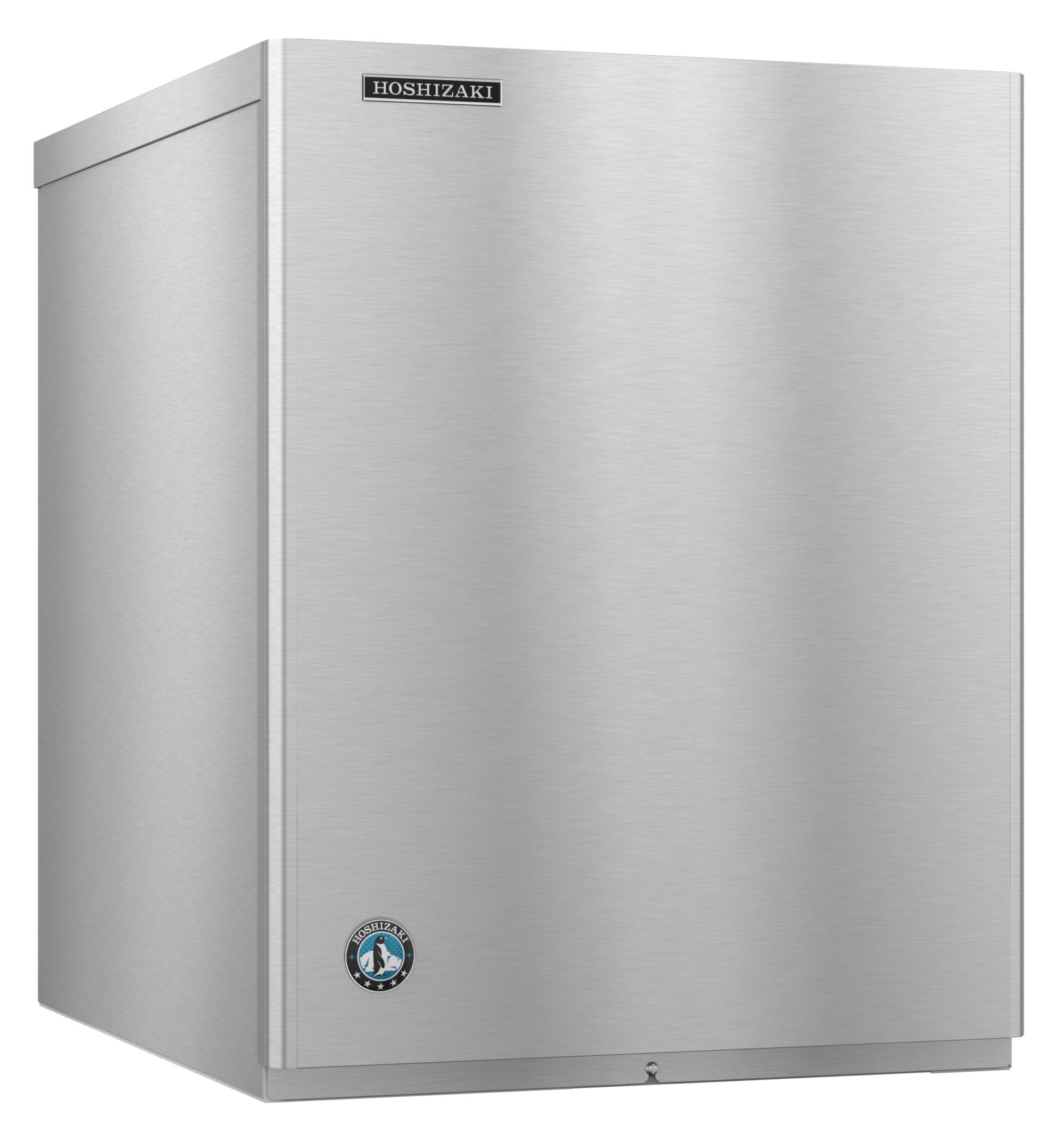

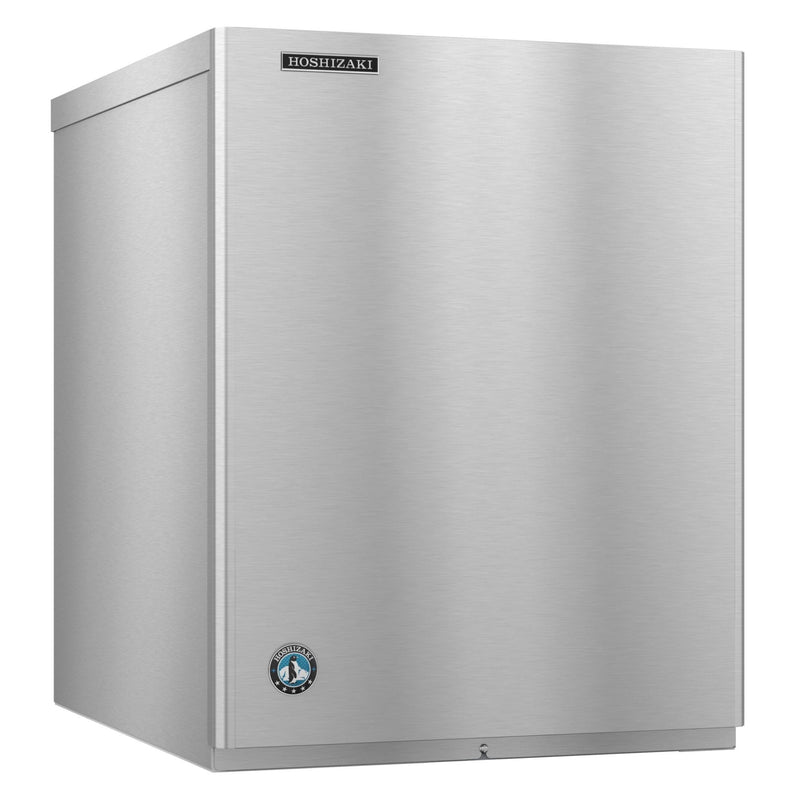

The Hoshizaki KM-660MWJ is a high-capacity, water-cooled modular ice machine designed for commercial environments that demand consistent ice production and energy efficiency. Featuring Hoshizaki’s advanced KMEdge technology, this unit produces up to 669 lbs. of individual crescent-shaped cubes per day while maintaining a compact 22" wide footprint—perfect for tight spaces.
Key Features
- High Production Capacity: Up to 669 lbs. of crescent cubes per 24 hours (at 70°F air / 50°F water).
- Slim-Line Design: 22" width fits in narrow spaces without sacrificing output.
- Durable Stainless Steel Evaporator: Double-sided for long-lasting performance.
- CycleSaver™ Design: Reduces energy consumption and extends component life.
- H-GUARD Plus Antimicrobial Protection: Helps inhibit bacteria growth on key components.
- EverCheck™ Alert System: Provides audible alerts for easy maintenance.
- Factory-Installed Ultrasonic Bin Control: Adjustable for precise ice level management.
- Simple Cleaning: Snap-fit parts and one-hour cleaning process with CleanAssist™.
- Environmentally Friendly Refrigerant: Uses R-404A refrigerant.
Construction & Durability
- Exterior: Stainless steel for corrosion resistance and easy cleaning.
- Evaporator: Stainless steel, double-sided for durability and efficiency.
- Serviceability: Panels are easily removable for quick access to internal components.
- Air Filters: Removable and washable (air-cooled models only).
Mobility & Installation
- Compact Footprint: 22" W x 27 3/8" D x 28" H.
- Operating Limits: Ambient temperature 45°F – 100°F; water temperature 45°F – 90°F.
- Plumbing: Requires separate water supply and drain lines; water-cooled condenser lines must be independent.
- Electrical: 115V/60Hz/1Ph; hard-wired connection required.
- Clearance: Minimum 6" at rear, sides, and top for proper ventilation and service.
Certifications & Warranty
- Certifications: NSF, UL, AHRI, ENERGY STAR® qualified.
-
Warranty:
- 3 years parts & labor on entire machine
- 5 years parts & labor on evaporator
- 5 years parts on compressor and air-cooled condenser coil
Optional Accessories

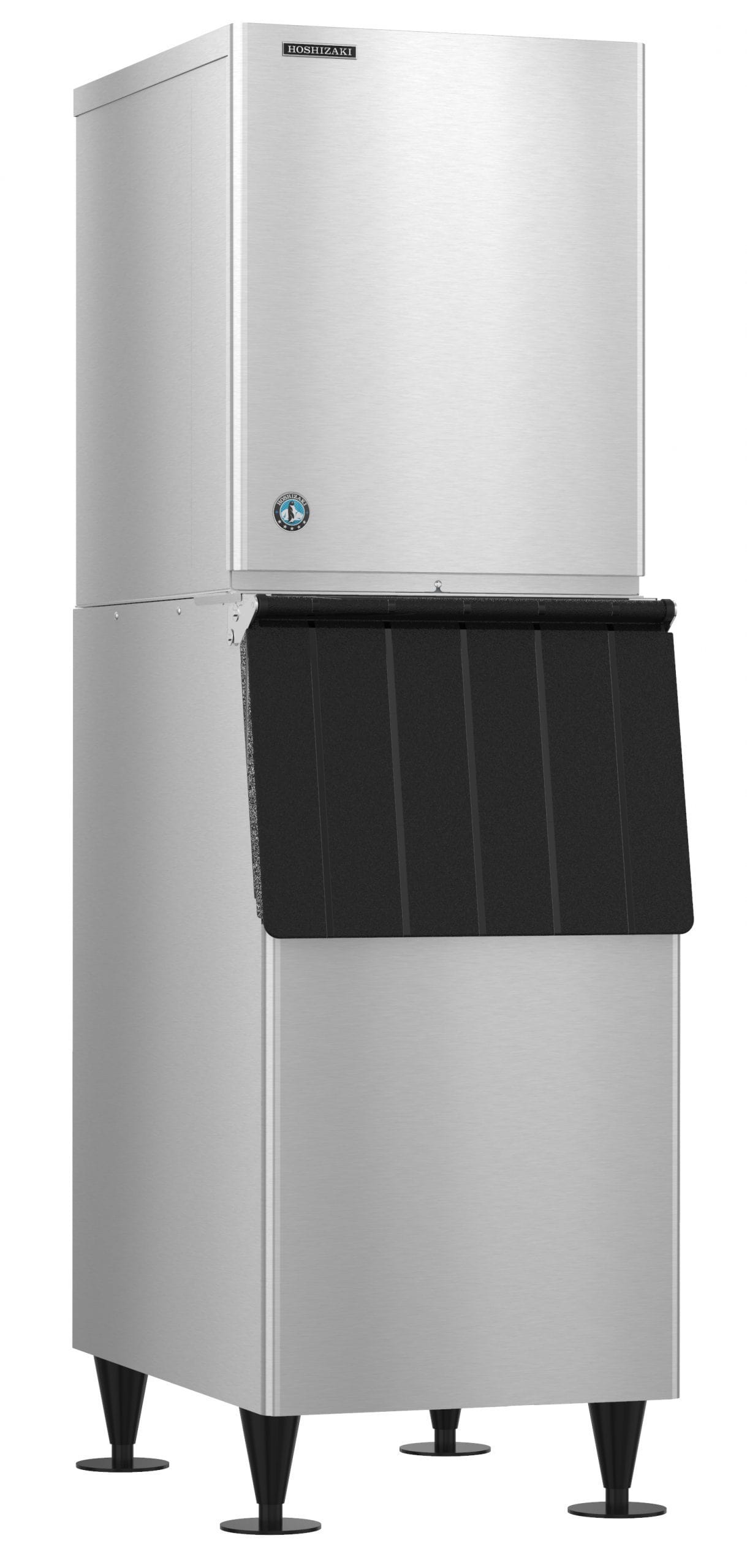

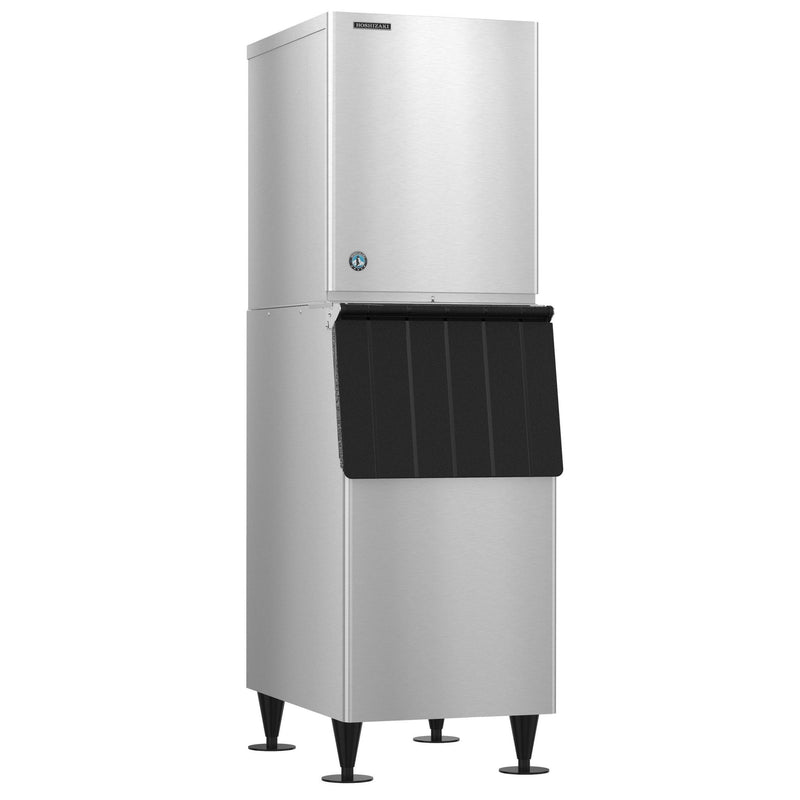

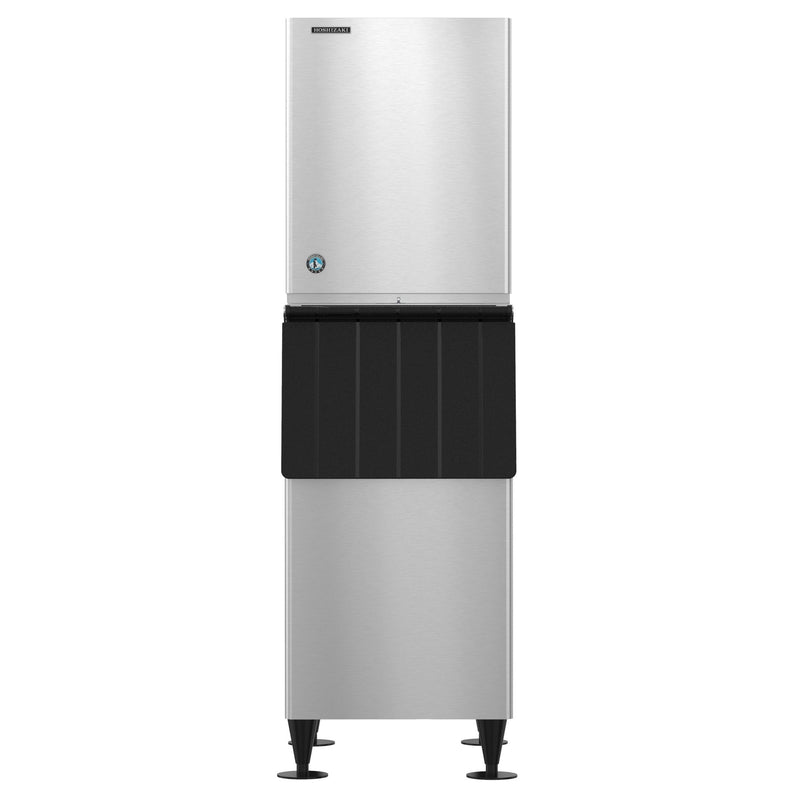

- Ice Storage Bins: B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- Dispensers: DB-130H, DB-200H, DM-200B
- Top Kits: Required for certain bin/dispenser combinations
- Water Filters: Recommended for optimal performance
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making technology, known for energy efficiency, reliability, and superior sanitation features. The KM-660MWJ combines innovative engineering with user-friendly maintenance, making it the ideal choice for restaurants, bars, healthcare facilities, and more.
Documentation
Spec Sheet
Instruction Manual
Parts Manual
Service Manual
Warranty Statement
Product Brochure
