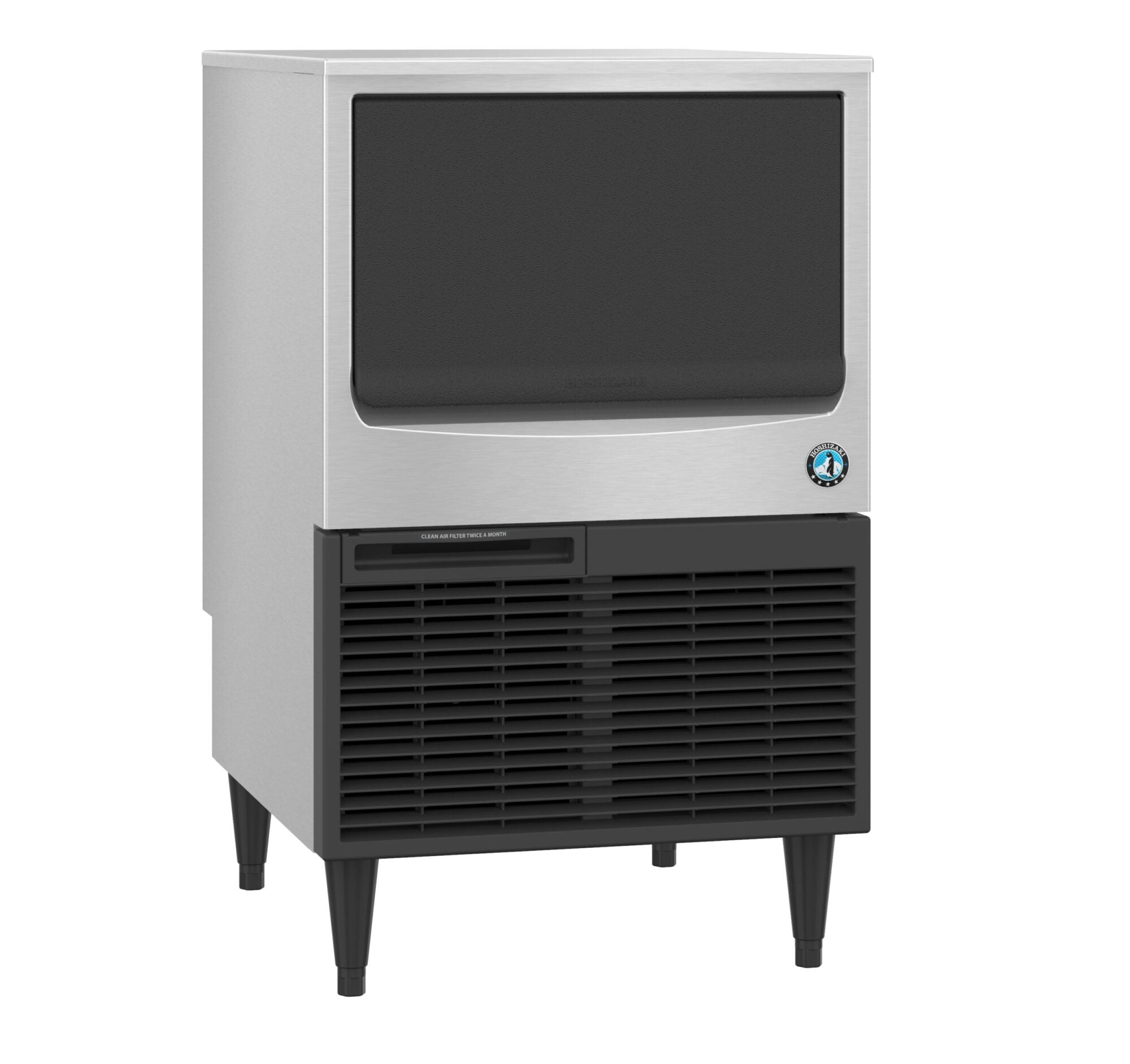

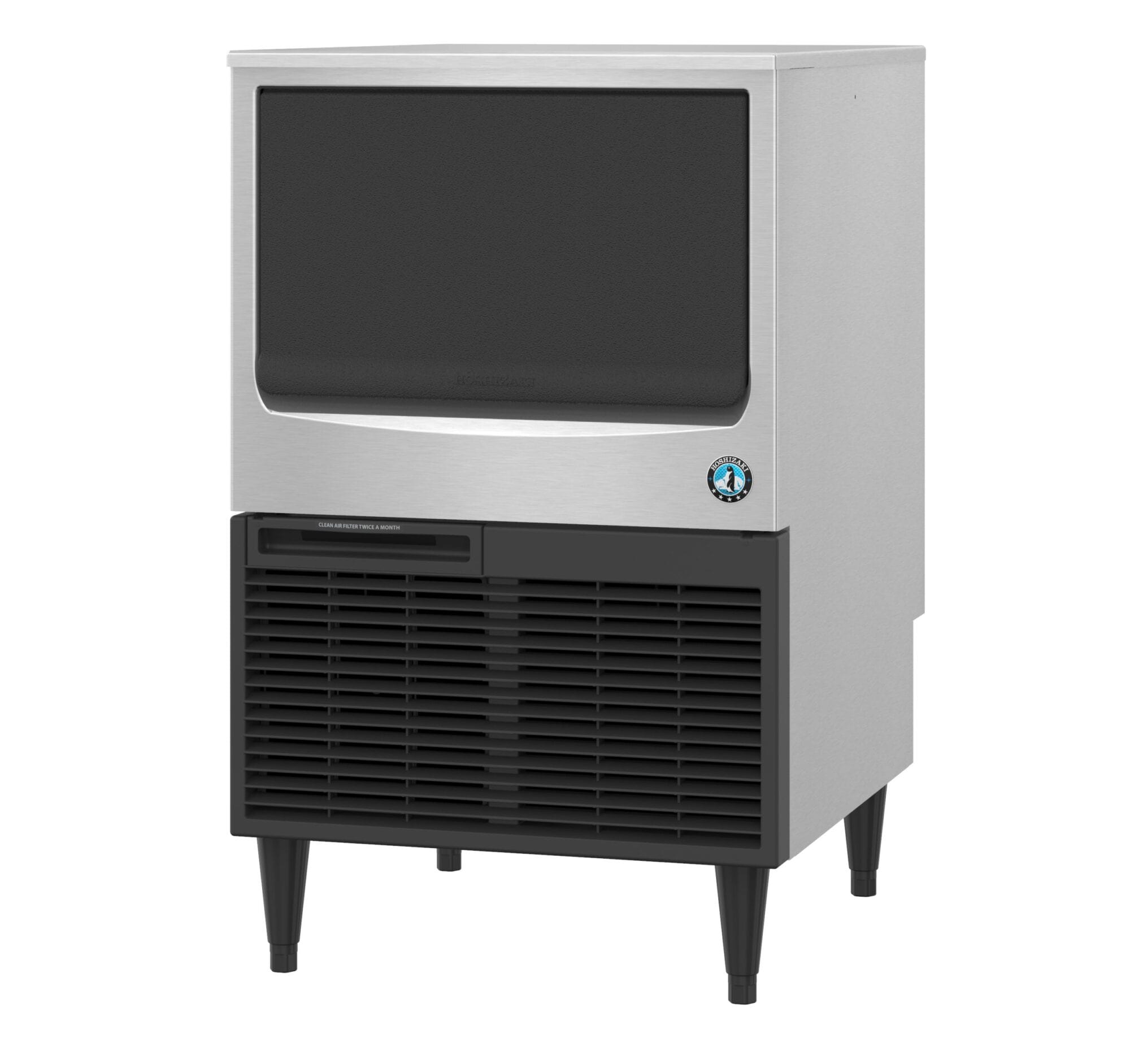

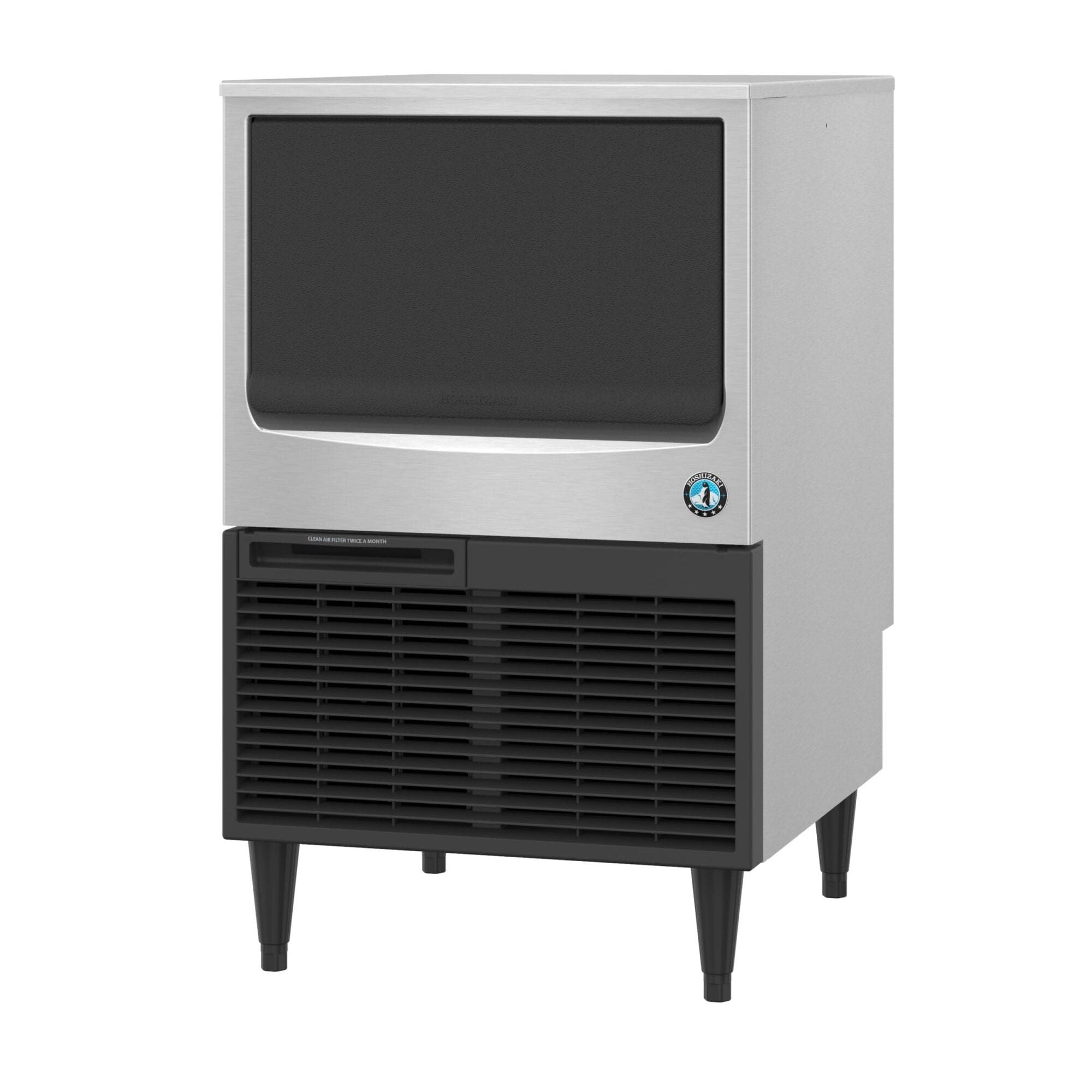

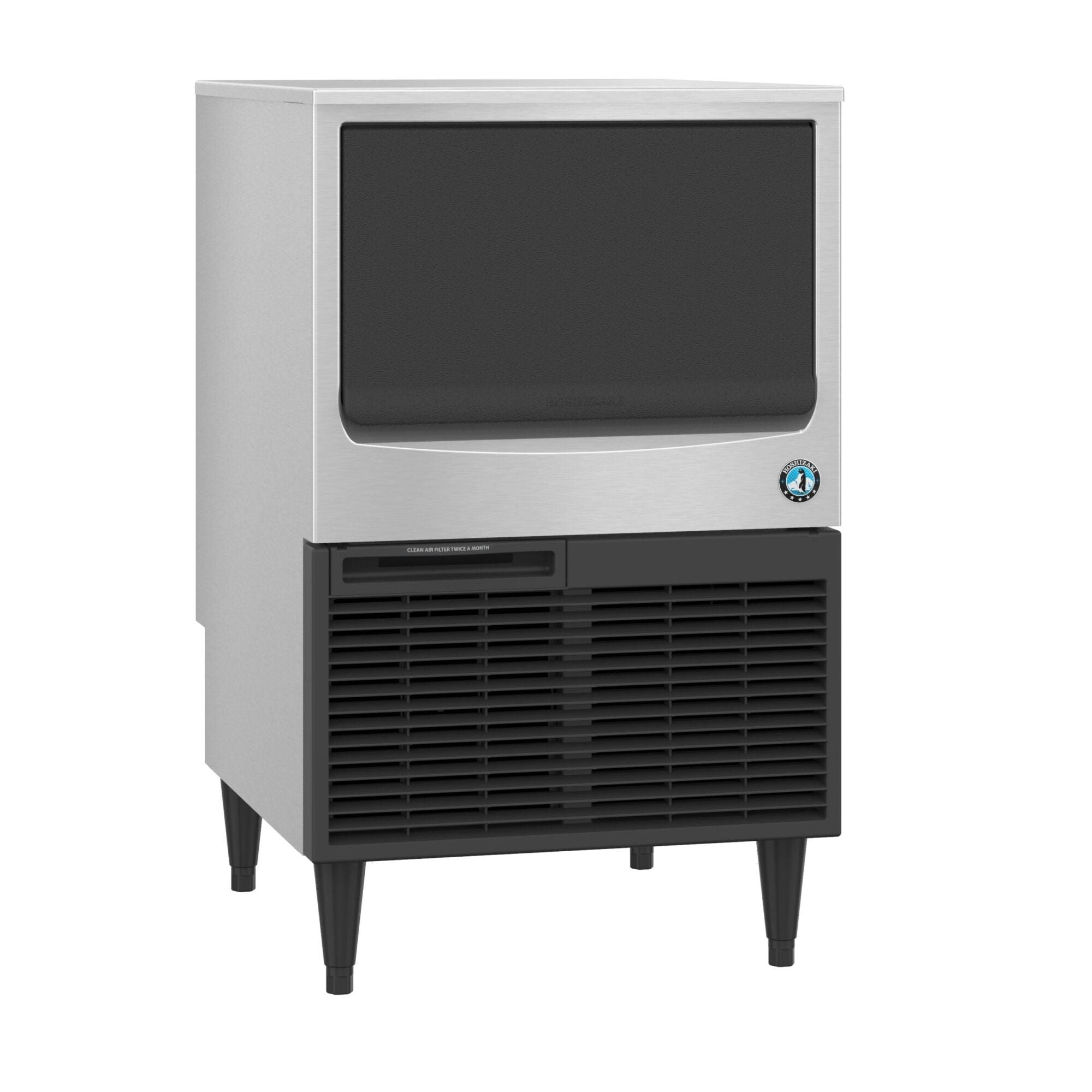

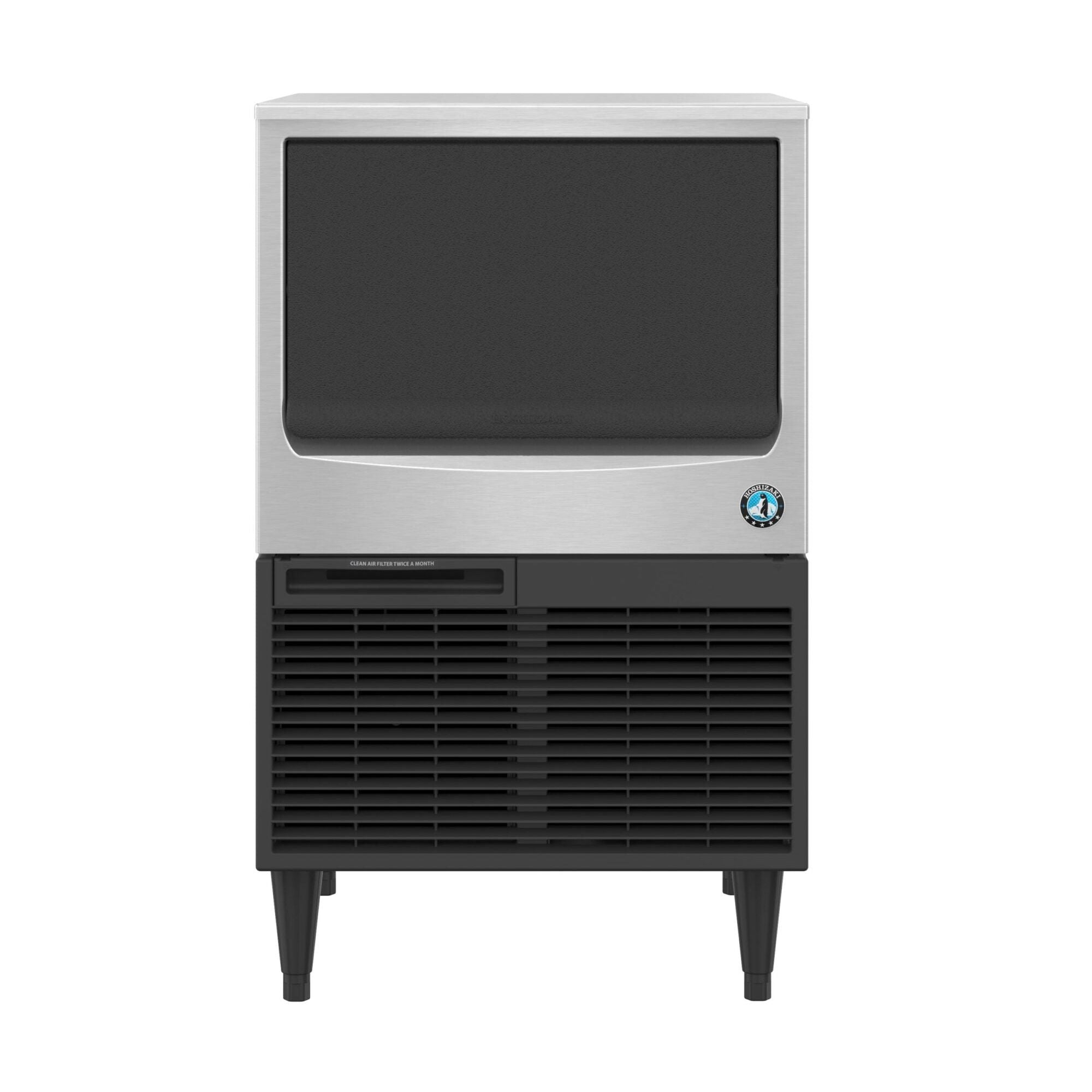

Hoshizaki KM-116BAJ – Self-Contained Crescent Cube Ice Machine with Built-In Storage Bin
Overview
The Hoshizaki KM-116BAJ is a high-performance, self-contained ice maker designed for commercial environments that demand reliability and efficiency. Producing up to 125 lbs. of crescent-shaped ice per day and storing up to 53 lbs., this unit is perfect for bars, restaurants, and hospitality settings. Its compact footprint and front-breathing design allow for easy undercounter installation without sacrificing performance.
Key Features
- Ice Production: Up to 125 lbs. of crescent ice per 24 hours
- Storage Capacity: Built-in bin holds 53 lbs. of ice

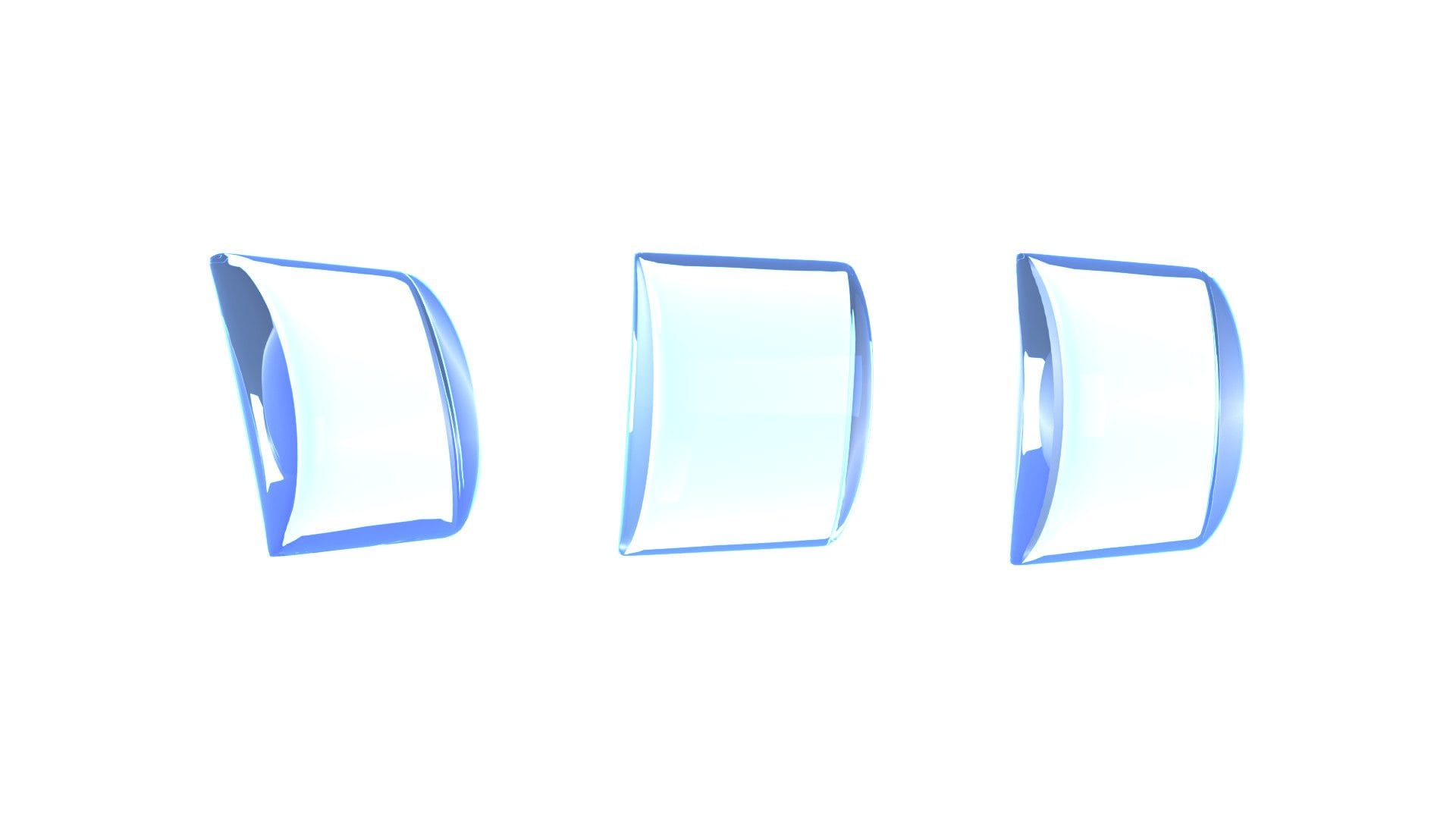

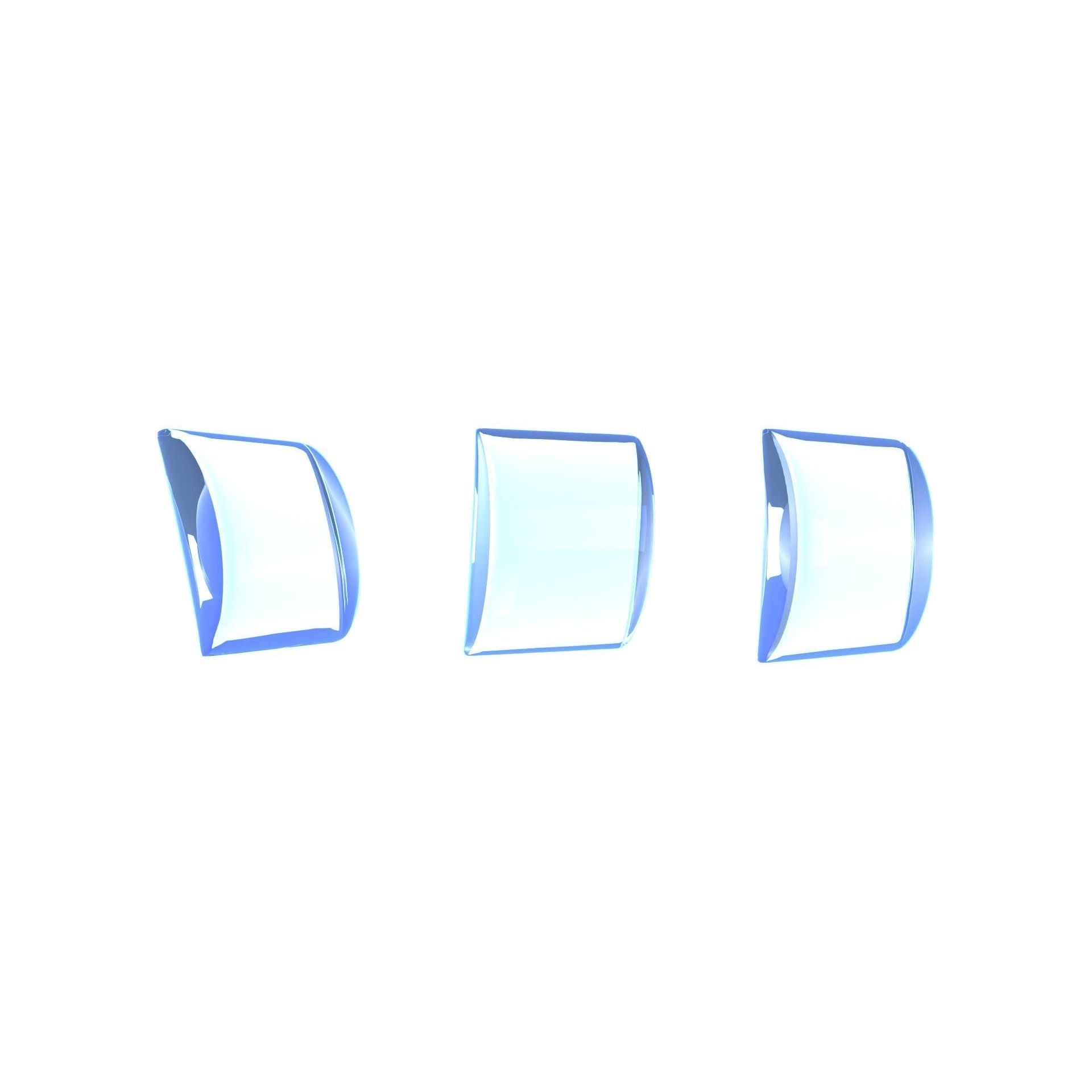

- Cube Type: Individual crescent cubes for superior cooling and reduced splash
- Energy Efficiency: ENERGY STAR® qualified
- User-Friendly: Slide-in door and EverCheck™ alert system for easy operation
- Power: 115V/60/1 with 6.5 ft. cord and NEMA 5-15P plug
- Compact Design: 23 3/4" W x 24" D x 39" H (with 6" legs)
Construction & Durability
- Exterior: Durable stainless steel for a sleek, professional look
- Evaporator: Stainless steel for long-lasting performance
- Insulation: High-density, foamed-in-place for energy efficiency
- Maintenance: Removable air filter and front-accessible components for easy cleaning
Mobility & Installation
- Clearance: 12" front, 0" sides, 0.6" top for maintenance
-
Plumbing:
- Water Inlet: 1/2" FPT
- Drain Outlet: 3/4" FPT
-
Operating Conditions:
- Ambient: 45°F – 100°F
- Water: 45°F – 90°F
- Water Pressure: 10 – 113 PSIG
- Installation: Built-in or freestanding with adjustable 6" legs
Certifications & Warranty
- Certifications: NSF/ANSI 372, UL, ENERGY STAR®, AHRI Certified
-
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on Evaporator
- 5-Year Parts on Compressor & Air-Cooled Condenser Coil
Optional Accessories
- HS-5061 Drain Pump Assembly (for installations without gravity drain)
- Water filtration system (recommended for optimal performance)
- Additional ice scoops
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial ice-making solutions, trusted for innovation, durability, and energy efficiency. With advanced features like the CycleSaver™ design and EverCheck™ alert system, Hoshizaki machines deliver consistent performance and lower operating costs, making them the preferred choice for professionals worldwide.
