Overview

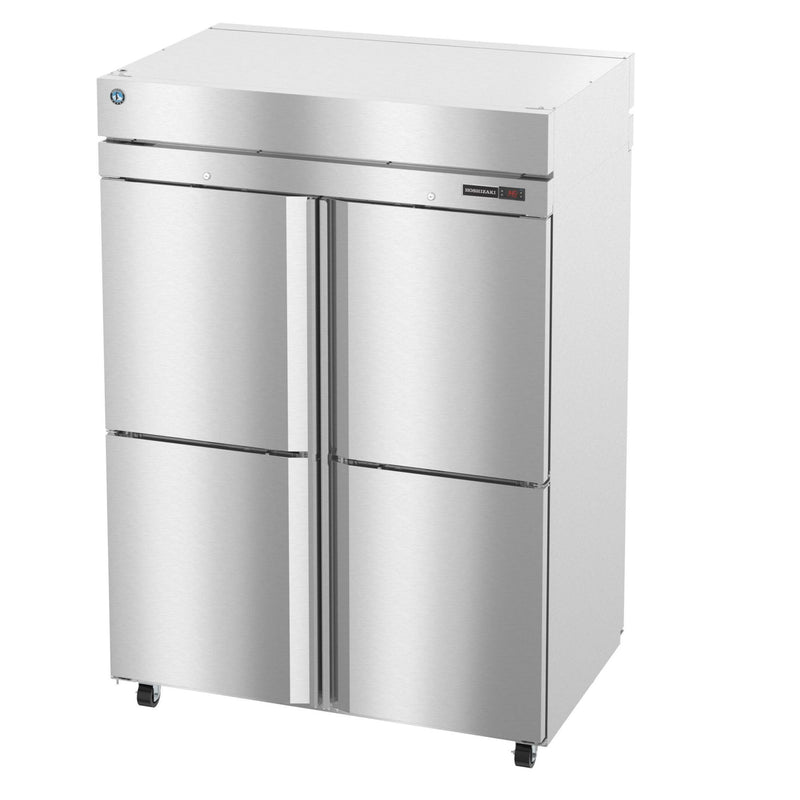

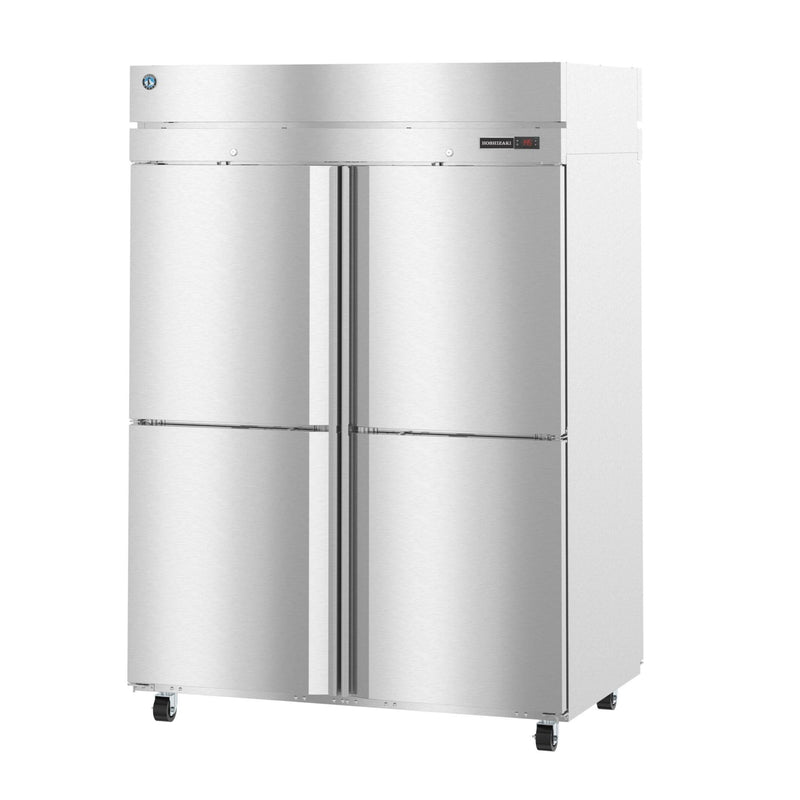

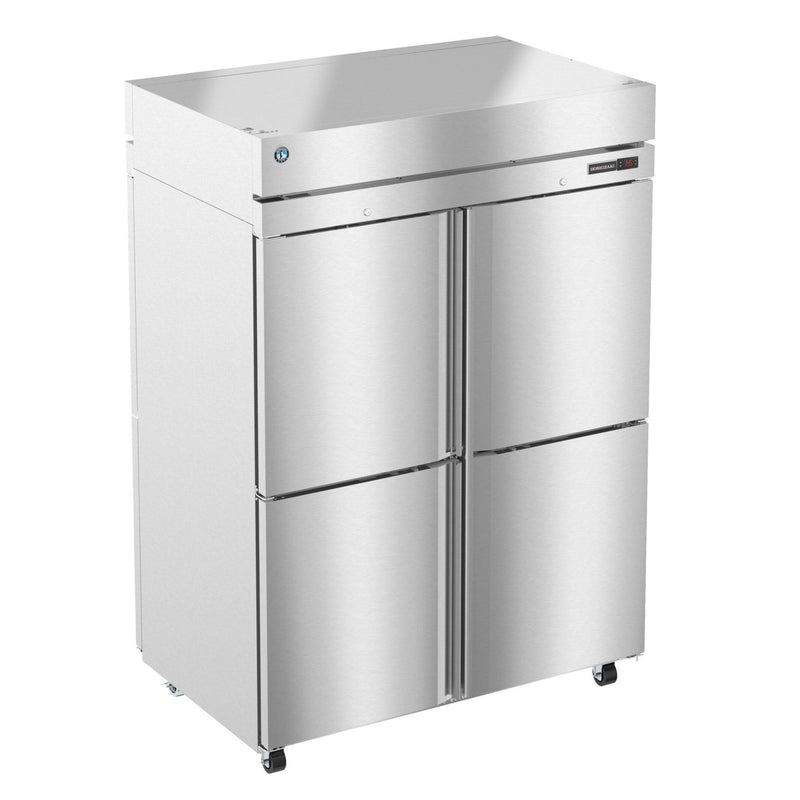

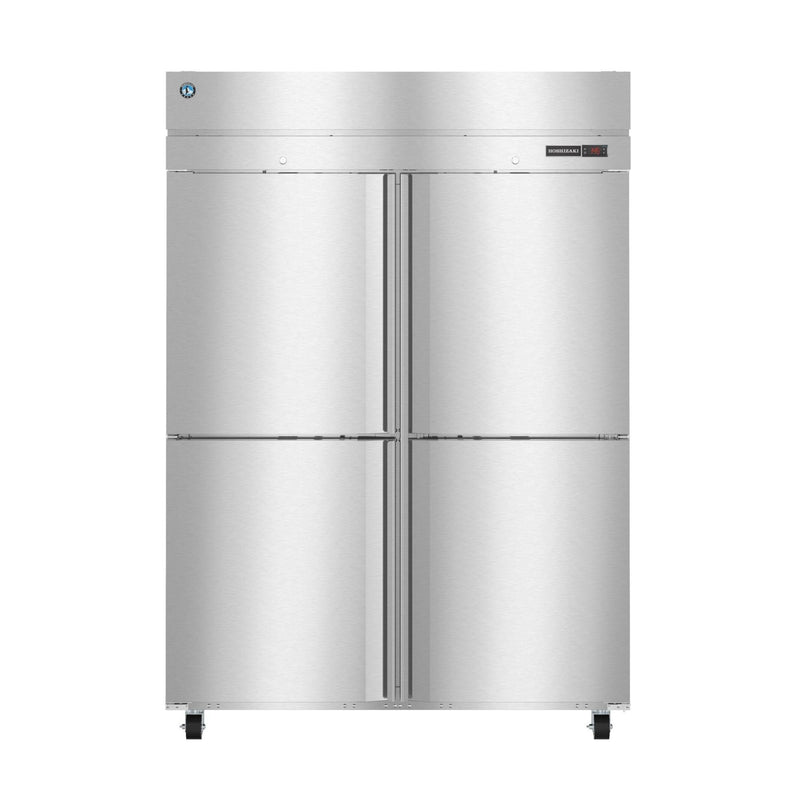

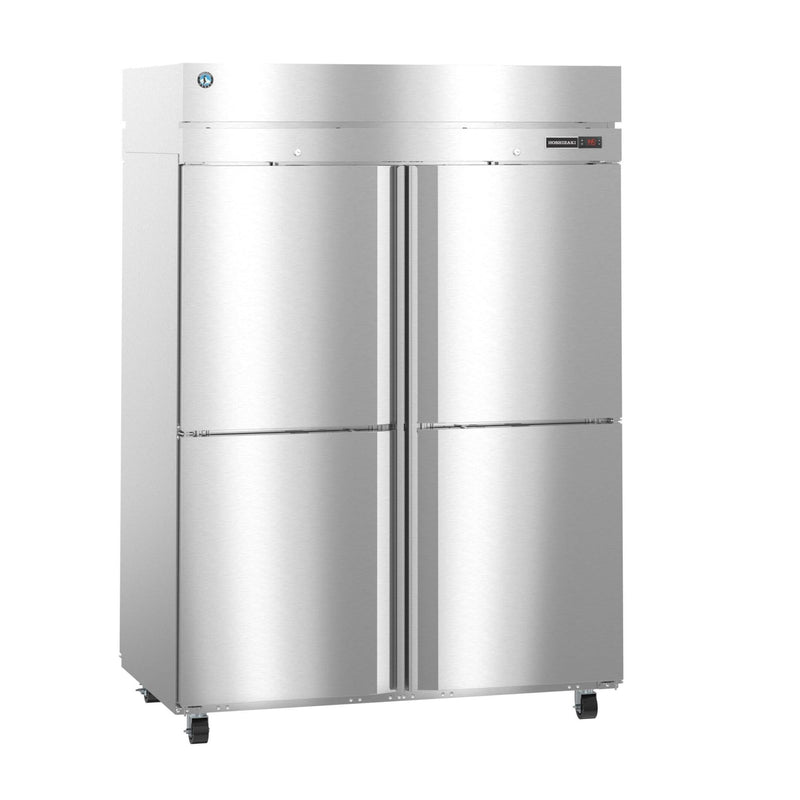

The Hoshizaki HC2A-HS-HS is a premium two-section heated pass-thru cabinet designed for high-volume commercial kitchens. With dual access doors and a top-mounted heating system, it ensures consistent temperature control and efficient workflow. Built with full stainless steel construction and advanced insulation, this unit is ideal for holding hot food safely and reliably.
Key Features
- Two-section pass-thru design for front and rear access
- Solid state digital controller with LED temperature display (°F or °C)
- Adjustable temperature setpoint from 140°F to 180°F
- Visual and audible temperature and voltage alarms
- Energy-efficient interior LED lighting
- Self-closing doors with stay-open feature
- Field-reversible doors with locks
- Holds up to 36 full-size sheet pans
Construction & Durability
-
Exterior: Stainless steel front, sides, and top; coated steel back and bottom
-
Interior: Stainless steel with ducted air flow system
-
Insulation: 2-3/8" CFC-free foamed-in-place polyurethane
-
Shelving: Six epoxy-coated wire shelves + three adjustable center shelves
-
Doors: Stepped design protects recessed magnetic gaskets
-
Casters: 4" polyolefin casters (two with brakes) standard
Mobility & Installation
- Ships with 4" casters pre-installed; optional 6" adjustable legs available
- 10 ft. cord with NEMA L14-20P plug
- Voltage: 208–230V / 60Hz / 1 Phase
- Amperage: 9.0–10.0 Amps
- Ambient operating range: 45°F to 100°F
- No clearance required on sides, top, or rear
Certifications & Warranty
- NSF Certified
- UL Listed
- ENERGY STAR® Qualified
-
Warranty: 7-year coverage on labor, parts, and compressor (U.S., Canada, Puerto Rico, and U.S. Territories)
Optional Accessories
- Additional epoxy or stainless steel shelves
- Pan slides: 1 (HS-3557), 3 (HS-5081), 4 (HS-3558)
- Wire slides: 1 (HS-5092), 4 (HS-5093)
- Foot pedal (HS-5380)
- Center shelves: 1 (HS-5388), 3 (HS-5389)
- 6" adjustable legs
Why Choose Hoshizaki?
Hoshizaki is a global leader in commercial refrigeration and foodservice equipment, known for its commitment to durability, innovation, and energy efficiency. The HC2A-HS-HS cabinet exemplifies this legacy with its robust construction, intuitive controls, and superior performance in demanding environments.
