Overview

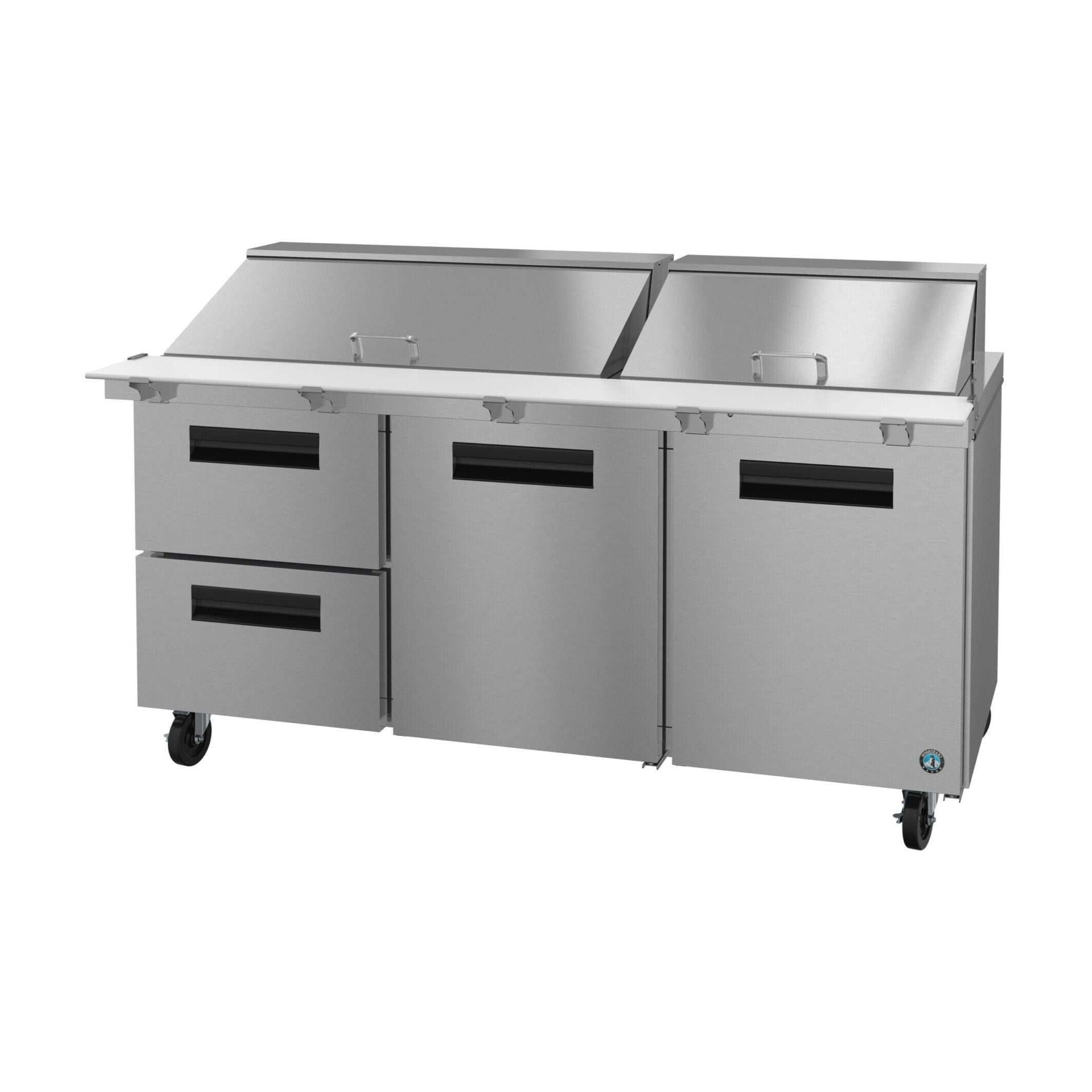

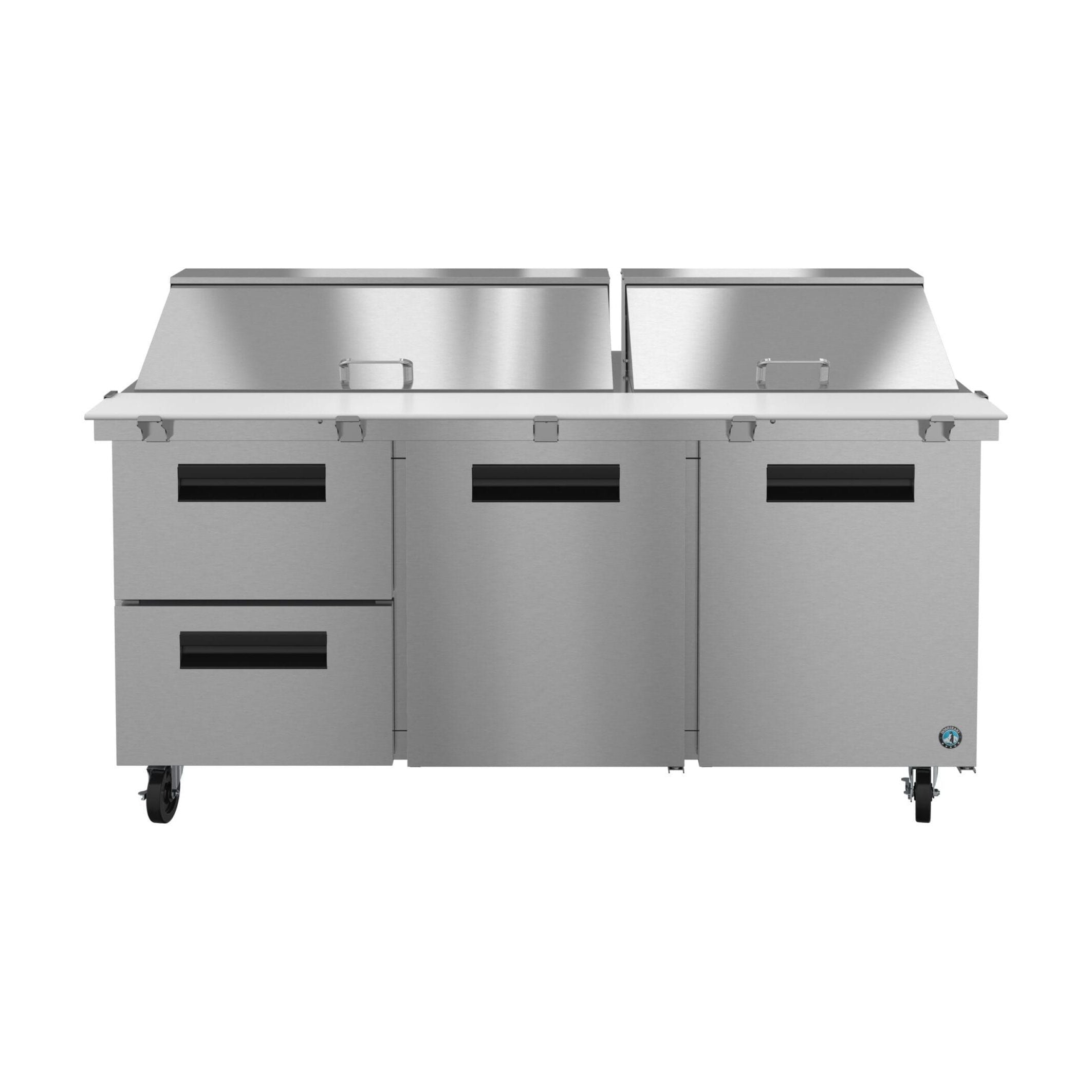

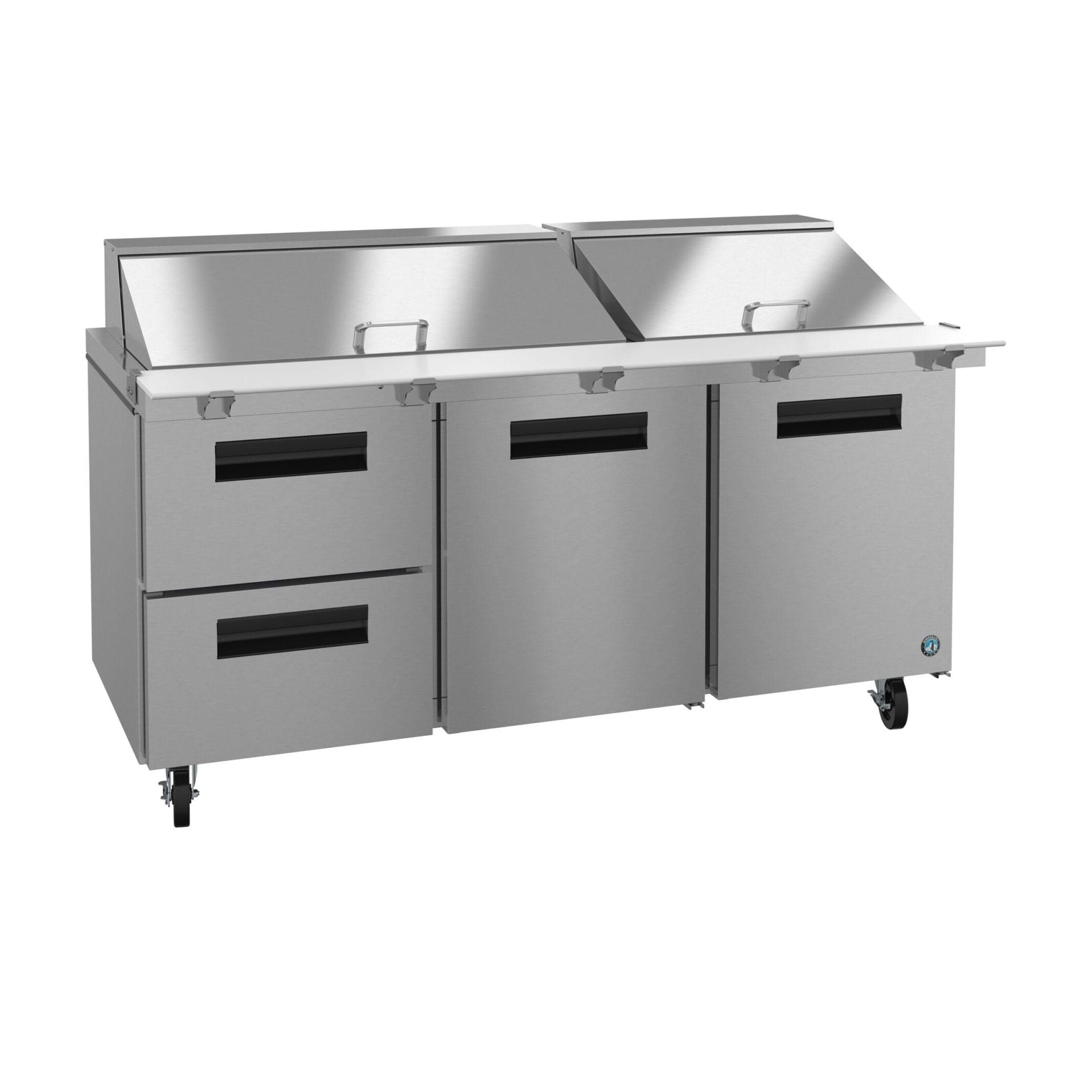

The Hoshizaki SR72B-30MD2 is a high-performance mega top prep refrigerator designed for demanding commercial kitchens. With a spacious 72" width, 30 pan capacity, and drawer configuration, this unit offers superior food prep efficiency and storage flexibility. Engineered to maintain NSF-7 temperatures in ambient conditions up to 100°F, it ensures consistent cooling and food safety.
Key Features
-
Mega Top Configuration: Includes 30 NSF-approved 1/6-size pans (4" deep) and stainless steel adapter bars. Supports 6" deep pans for increased volume.
-
Cutting Board: 72" x 10" x ½" thick white polyethylene cutting board included.
-
Air Distribution System: Innovative airflow design ensures even cooling across all pans.
-
Drawer Configuration:
- Top drawer accommodates (1) ½ size + (1) 1/3 size pan (6" deep), plus (1) ¼ size + (1) 1/6 size pan (4" deep).
- Alternate top drawer layout supports (1) full-size pan (front-to-back) + (3) 1/9 size pans.
- Bottom drawer supports 6" deep pans.
-
Drawer Slides: Heavy-duty 16-gauge stainless steel with acetal rollers and stainless steel ball bearings. Rated for 175 lbs. and tested for 300,000 cycles.
-
Temperature Control: Adjustable dial with default setting at 34°F (1°C).
-
Energy Efficient: Uses R290 refrigerant and consumes only 5.05 kWh/day.
Construction & Durability
-
Exterior: Stainless steel front, sides, and top.
-
Interior: Stainless steel sides, back, and floor with ABS ceiling.
-
Insulation: 2" CFC-free foamed-in-place polyurethane.
-
Shelving: Three heavy-duty epoxy-coated shelves (one per section), adjustable in ½" increments.
-
Doors & Drawers: High-grade stainless steel with ABS liners, magnetic gaskets, and flush mount aluminum handles.
-
Casters: 6" polyolefin stem casters standard (two with brakes).
Mobility & Installation
-
Dimensions: 72" W x 34" D x 44.25" H (with casters)
-
Electrical: 115V/60Hz/1-phase, 15.0 amps, NEMA 5-15P plug
-
Cord Length: 10 ft.
-
Ambient Range: Operates efficiently from 45°F to 100°F
-
Shipping Weight: Approx. 475 lbs.
-
Crated Dimensions: 73.75" x 36" x 46.5"
Certifications & Warranty
-
Certifications: NSF/ANSI Standard 7, UL Listed
-
Warranty:
- 7-Year Parts & Labor
- 7-Year Compressor Warranty
-
Refrigerant: R290 Hydrocarbon (2.6 oz)
-
Energy Consumption: 5.05 kWh/day @ NSF
Optional Accessories
- Stainless steel back
- Stainless steel lift-off covers
- Overshelves
- Additional epoxy or stainless steel shelves
- Composite cutting board (HS-5267)
- Drawer divider bars
- Rail adapter bars
- 2.25" or 4" casters
- Foot pedals (left: HS-5555, right: HS-5556)
Why Choose Hoshizaki?
Hoshizaki is a globally trusted name in commercial refrigeration, known for its commitment to quality, innovation, and sustainability. The SR72B-30MD2 is built to perform in high-volume environments, offering flexible storage, ergonomic design, and advanced cooling technology. With a robust warranty and NSF-certified performance, it’s a reliable solution for any foodservice operation.
